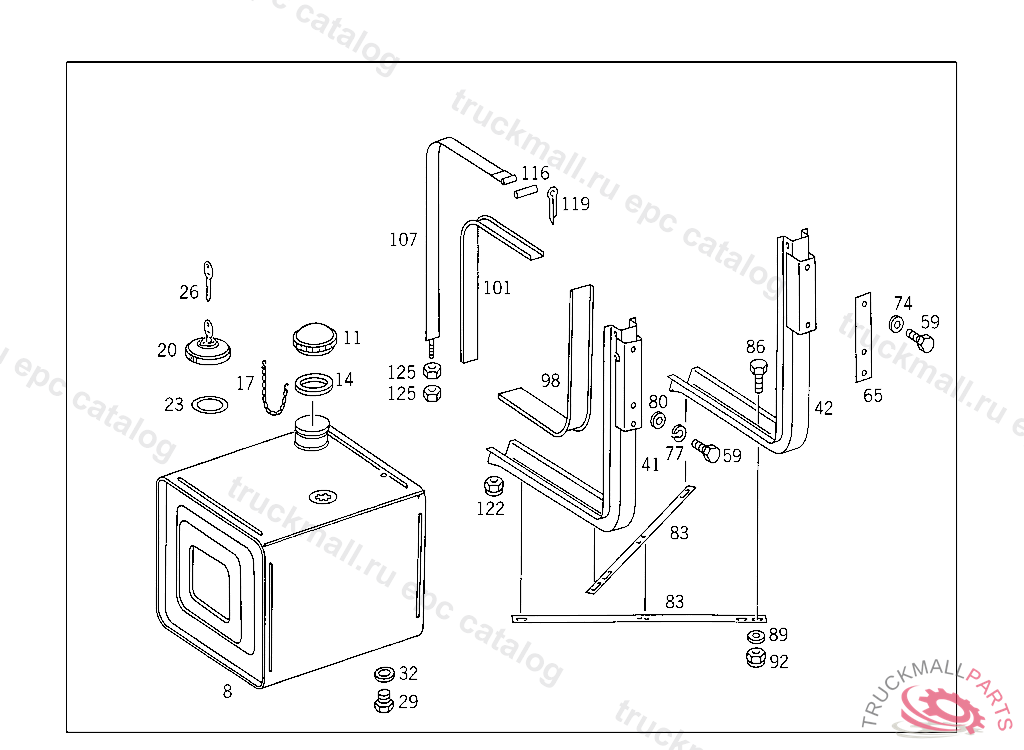

Поз.
Артикул
Описание
8
FUEL TANK200 L,K 169123
8
FUEL TANK200 L
11
FILLER CAP , Replaced By: A0004700305
11
FILLER CAP
14
SEAL RING
17
CHAIN FILLER CAP
20
FILLER CAP LESS BREATHING
20
FILLER CAP , Replaced By: A0004718430
20
FILLER CAP LESS BREATHING
23
SEAL RING
23
SEAL RING , Replaced By: A3049970340
26
KEYTO 000 471 67 30, STATE LOCK NUMBER WHEN ORDERING
29
SCREW PLUG , Replaced By: N007604014110
29
SCREW PLUG FUEL TANK
32
SEAL RING FUEL LINE TO FEED PUMP
41
SUPPORT FRONT FUEL TANK,K 144352
41
SUPPORT FUEL TANK TO FRAME, TO BE ADAPTED DURING ASSEMBLY
42
SUPPORT REAR FUEL TANK,K 144352
42
SUPPORT FUEL TANK
59
SCREW BRACKET TO CAB CONSOLE,K 035197
74
WASHER SPARE WHEEL CARRIER
83
REINFORCEMENT SUPPORT TO CONSOLE,5 497851
86
SCREW CONSOLE TO SIDE MEMBER
89
WASHER
92
NUT SUPPORT TO SIDE MEMBER
98
PAD FUEL TANK TO CONSOLE, ORDER BY THE METER
101
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
107
STRAP FUEL TANK TO SUPPORT
116
PIN STRAP TO SUPPORT
119
COTTER PIN STRAP TO SUPPORT
122
NUT SUPPORT TO SIDE MEMBER
