Поз.
Артикул
Описание

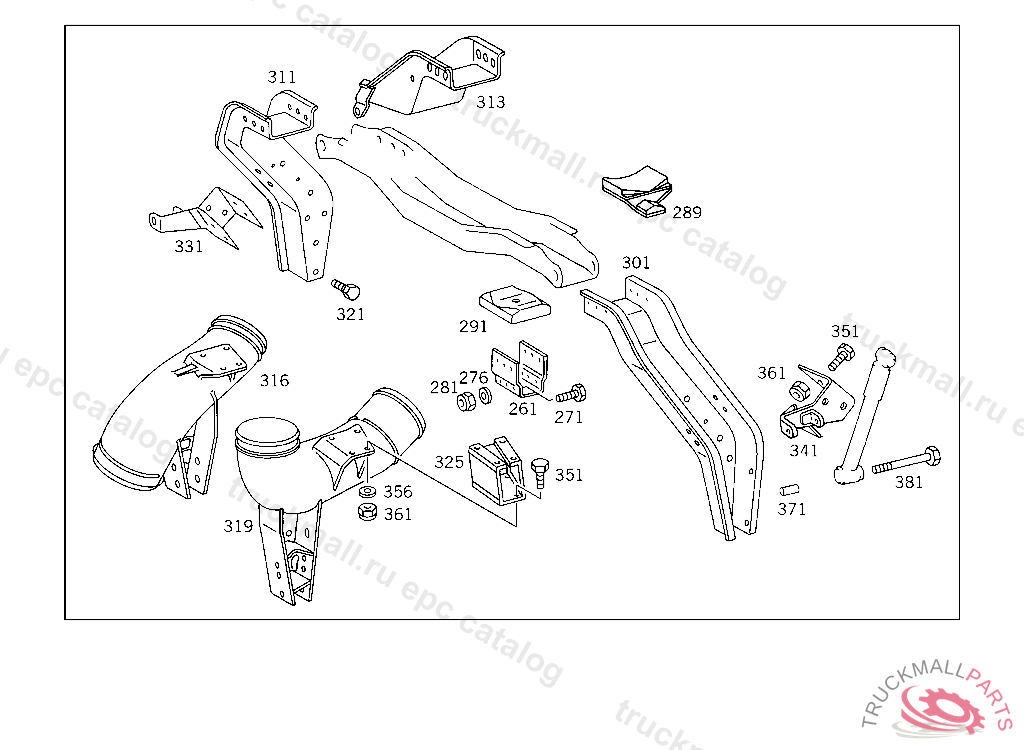

261
CLAMP CAB SUSPENSION
261
CLAMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 104455, Replaced By: A6528910130
271
SCREW , Replaced By: N308676012012
271
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
271
SCREW STRUT TO CONSOLE
271
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
276
WASHER
281
NUT SUPPORT TO SIDE MEMBER
289
MOUNTING , Replaced By: A3878910072
289
MOUNTING CAB SUSPENSION,REAR
289
MOUNTING , Replaced By: A3878910072
291
MOUNTING CAB SUSPENSION,REAR
301
CONSOLE CAB SUSPENSION,REAR LEFT
301
CONSOLE CAB SUSPENSION,REAR LEFT
311
CONSOLE CAB SUSPENSION,REAR RIGHT, TO BE ADAPTED DURING ASSEMBLY
311
CONSOLE CAB SUSPENSION,REAR LEFT
311
CONSOLE CAB SUSPENSION,REAR RIGHT
311
CONSOLE CAB SUSPENSION,REAR RIGHT
311
CONSOLE CAB SUSPENSION,REAR RIGHT
311
CONSOLE ADDITIONAL WORK ON FRAME
311
CONSOLE CAB SUSPENSION,REAR
313
CONSOLE CAB SUSPENSION,REAR
316
CONSOLE CAB SUSPENSION,REAR RIGHT
319
CONSOLE CAB SUSPENSION,REAR RIGHT
321
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
321
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
321
SCREW APPARATUS SUPPORT TO FRAME
321
SCREW , Replaced By: A9429901304
321
SCREW , Replaced By: N308676014020
321
SCREW , Replaced By: N308676012012
325
CLAMP CAB SUSPENSION
331
MOUNTING , Replaced By: A6258900303, +001N000960018033
331
MOUNTING RIGHT VIBRATION ABSORBER
331
MOUNTING RIGHT VIBRATION ABSORBER
341
MOUNTING LEFT VIBRATION ABSORBER
351
SCREW VIBRATION ABSORBER TO CONNECTOR
351
HEXAGON HEAD BOLT , Replaced By: A0029902704
351
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
351
SCREW CONSOLE TO SIDE MEMBER
351
SCREW , Replaced By: N308676012013
351
SCREW , Replaced By: N308676012012
356
WASHER , Replaced By: N007349013005
356
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
361
NUT SUPPORT TO SIDE MEMBER
371
SPACER TUBE SHOCK ABSORBER TO RAIL
371
SPACER TUBE VIBRATION ABSORBER TO CONSOLE
371
SPACER TUBE , Replaced By: A3878910453
371
SPACER TUBE MOUNTING TO CONSOLE
381
SCREW , Replaced By: N000960018072
381
SCREW RETARDER HOUSING TO TRANSMISSION CASE M 18X1.5X120
381
SCREW VIBRATION ABSORBER TO CONNECTOR
381
SCREW VIBRATION ABSORBER TO CONSOLE
381
SCREW VIBRATION ABSORBER TO CONSOLE
999
CONSOLE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6208910031
999
CONSOLE CAB SUSPENSION,REAR RIGHT,BOTTOM, AND AIR INTAKE
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
COUPLING
999
TOOTHED SEGMENT
999
LOCKING MECHANISM CAB, RIGHT,5 719572
999
BRACKET HAND PUMP
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
MOUNTING , Replaced By: A6258900303, +001N000960018033
999
TOOTHED SEGMENT RIGHT,5 350513
999
LOCKING MECHANISM CAB, RIGHT
999
BRACKET HAND PUMP
999
BRACKET FENDER TO BRACKET
999
BRACKET , Replaced By: A6225500040
999
CONSOLE CAB SUSPENSION,REAR RIGHT,BOTTOM, AND AIR INTAKE,5 343253
999
MOUNTING CAB SUSPENSION,REAR
999
CONSOLE CAB SUSPENSION,5 742148
999
MOUNTING , Replaced By: A3878910072
999
CONSOLE CAB SUSPENSION,REAR LEFT, TO BE ADAPTED DURING ASSEMBLY
999
SPACER TUBE MOUNTING TO CONSOLE
999
PLATE HAND PUMP
999
BRACKET RIGHT
999
BRACKET LEFT
999
WASHER LEFT AND RIGHT CONSOLES TO CAB
999
SCREW EXHAUST PIPE TO BRACKET
999
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACK
999
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
999
PUMP (HAND PUMP) WEBER
999
PUMP , Replaced By: A0005537901, +001A0015534205
