Поз.
Артикул
Описание

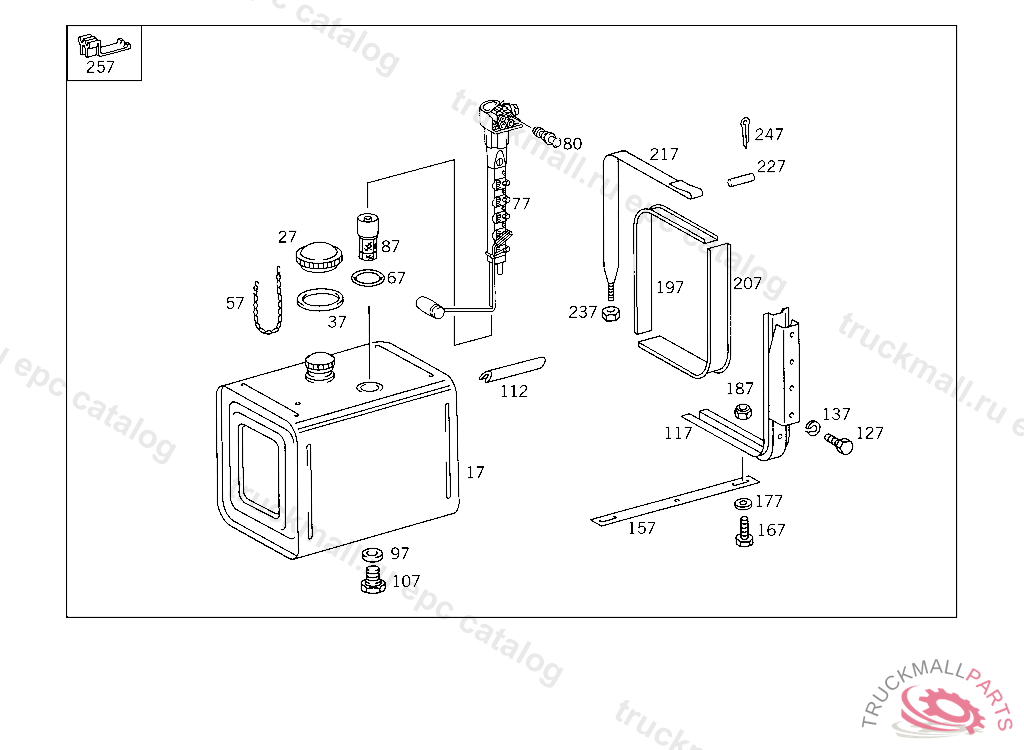

17
FUEL TANK , Replaced By: A3874701001
17
FUEL TANK
27
FILLER CAP , Replaced By: A0004700305
27
FILLER CAP
37
SEAL RING
57
CHAIN FILLER CAP
67
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
77
SENDER UNIT FUEL GAUGE
77
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426517, +001A0005409917
77
SENDER UNIT , Replaced By: A0085428117
80
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
87
FUEL STRAINER FUEL TANK,K 169123
87
FUEL STRAINER FUEL TANK,K 169122
97
SEAL RING FUEL LINE TO FEED PUMP
107
SCREW PLUG FUEL TANK
107
SCREW PLUG , Replaced By: N007604014110
112
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
112
EDGE GUARD SECTION , Replaced By: A0029873572
112
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
117
SUPPORT FUEL TANK TO FRAME
117
SUPPORT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6174703742
127
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
127
SCREW , Replaced By: N308676014020
127
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
137
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
157
REINFORCEMENT REINFORCEMENT RAIL TO CONSOLE
167
SCREW CONSOLE TO SIDE MEMBER
177
WASHER
187
NUT SUPPORT TO SIDE MEMBER
197
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
207
PAD FUEL TANK TO CONSOLE, ORDER BY THE METER
217
STRAP FUEL TANK TO SUPPORT
227
PIN STRAP TO SUPPORT
237
NUT SUPPORT TO SIDE MEMBER
247
COTTER PIN STRAP TO SUPPORT
257
BRACKET TO MOUNT FUEL LINES,K 114273
999
FUEL TANK200 L
999
WASHER BRACKET TO SIDE MEMBER,5 703114
999
BRACKET STRAP
