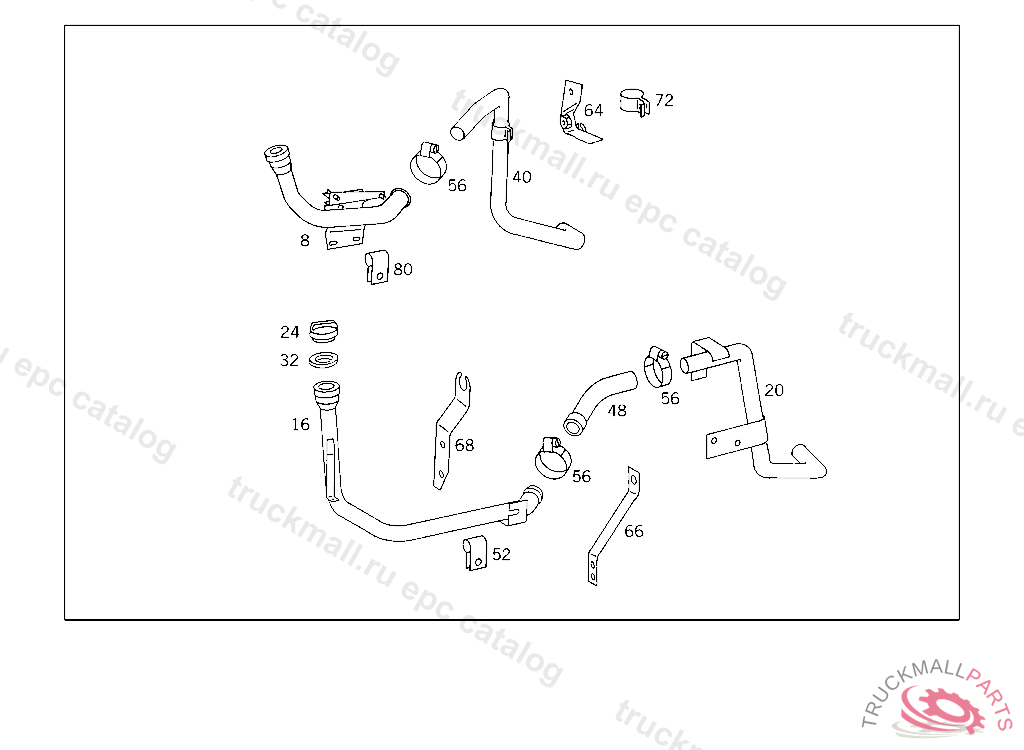

Поз.
Артикул
Описание
8
PIPE ELBOW (OIL FILLER PIPE),5 5289845 708090
16
PIPE ELBOW (OIL FILLER PIPE)
16
PIPE ELBOW (OIL FILLER PIPE)
16
PIPE ELBOW (OIL FILLER PIPE)
16
PIPE ELBOW (OIL FILLER PIPE)
16
PIPE ELBOW (OIL FILLER PIPE)
16
PIPE ELBOW , Replaced By: A6565200006
16
PIPE ELBOW , Replaced By: A6555201006
16
PIPE ELBOW (OIL FILLER PIPE),5 528984 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 906770
16
PIPE ELBOW (OIL FILLER PIPE)
16
PIPE ELBOW (OIL FILLER PIPE)
20
PIPE ELBOW , Replaced By: A6565280209
20
PIPE (OIL FILLER PIPE)
24
CAP OIL REFILLING
24
CAP OIL REFILLING
32
GASKET
32
GASKET , Replaced By: A1020180380
40
HOSE FROM OIL FILLER PIPE TO FILLER NECK AT OIL PAN,5 4213345 528983
48
HOSE FROM OIL FILLER NECK TO OIL PAN
48
HOSE CONNECTION OF OIL FILLER PIPES
48
HOSE CONNECTION OF OIL FILLER PIPES
48
HOSE FROM OIL FILLER PIPE TO FILLER NECK AT OIL PAN
48
HOSE , Replaced By: A6205280182
48
HOSE CONNECTION OF OIL FILLER PIPES
52
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
52
CLAMP , Replaced By: A3609951201
56
CLAMP , Replaced By: N000000000671
56
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
64
BRACKET HOSE
66
BRACKET OI DIPSTICK GUIDE TUBE
68
BRACKET OIL DIPSTICK GUIDE TUBE
68
BRACKET OIL DIPSTICK GUIDE TUBE
72
CLAMP HOSE TO BRACKET,5 528983
80
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
CLAMP , Replaced By: N000000000671
999
SUPPORT AIR CLEANER
999
AIR INTAKE PIPE FROM AIR CLEANER TO INTAKE PIPE
999
ANGLE RIGHT
999
ANGLE LEFT
999
HOSE AIR INTAKE PIPE TO ENGINE
999
PIPE ELBOW FROM OIL FILTER NECK TO ENGINE
999
HOSE PIPE ELBOW
999
PIPE ELBOW , Replaced By: A6565200106
999
PIPE ELBOW OIL REFILLING
999
SUPPORT BOOT
999
GASKET AIR CLEANER BOWL TO 015 094 83 02
999
FILTER BOWLTO 015 094 83 02
