Поз.
Артикул
Описание

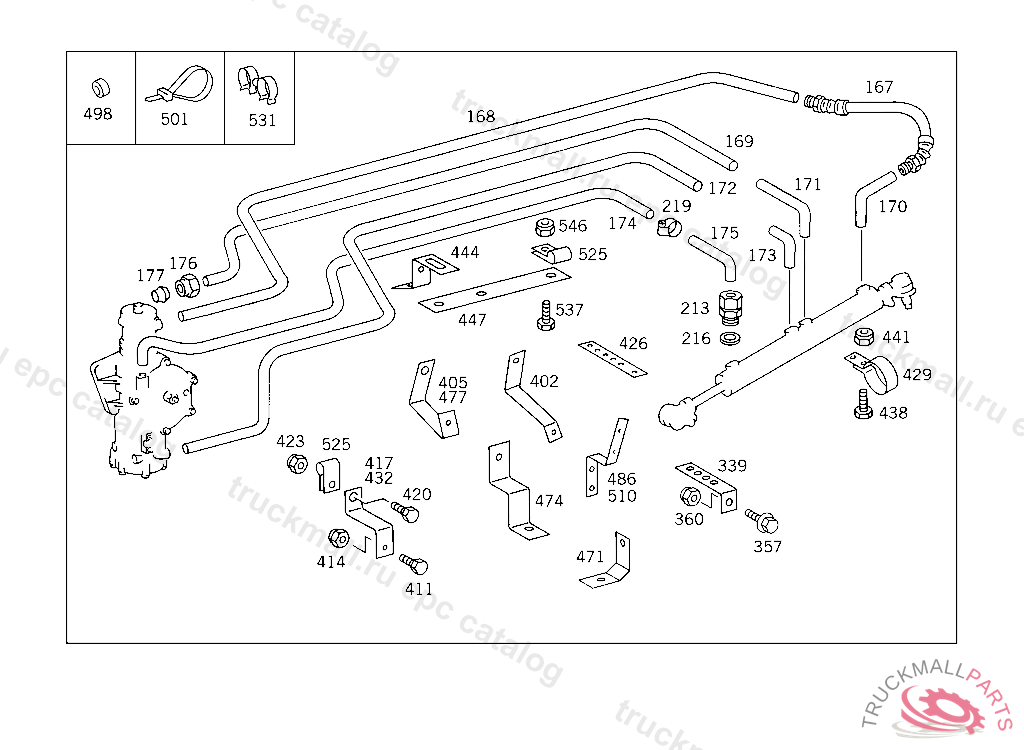

167
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
167
HOSE (DELIVERY LINE) FROM PUMP TO STEERING,CIRCUITS I & II
167
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
167
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
167
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
167
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
167
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
167
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
167
HOSE (DELIVERY LINE) FROM PUMP TO STEERING,CIRCUITS I & II
167
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
167
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
167
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
167
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
167
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
168
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT I
168
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT I
169
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT I "C"
169
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT I "C"
170
LINE FROM HIGH PRESSURE HOSE TO POWER CYLINDER,CIRCUIT I "C"
170
LINE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6754600988
171
LINE FROM HIGH PRESSURE HOSE TO POWER CYLINDER,CIRCUIT I "D"
171
LINE FROM HIGH PRESSURE HOSE TO POWER CYLINDER,CIRCUIT I "D"
171
LINE FROM HIGH PRESSURE HOSE TO POWER CYLINDER,CONNECTION: "D",5 569241
171
LINE FROM HIGH PRESSURE HOSE TO POWER CYLINDER,CONNECTION: "D",5 569241
172
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT II "A"
172
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT II "A"
173
LINE FROM HIGH PRESSURE HOSE TO POWER CYLINDER,CONNECTION: "2R",5 569241
173
LINE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6754600988
173
LINE FROM HIGH PRESSURE HOSE TO POWER CYLINDER,CONNECTION: "2R",5 569241
174
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT II "B"
174
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT II "B"
175
LINE FROM HIGH PRESSURE HOSE TO POWER CYLINDER,CIRCUIT II "B"
175
LINE FROM HIGH PRESSURE HOSE TO POWER CYLINDER,CONNECTION: "B",5 569241
175
LINE FROM HIGH PRESSURE HOSE TO POWER CYLINDER,CONNECTION: "B",5 569241
175
LINE FROM HIGH PRESSURE HOSE TO POWER CYLINDER,CIRCUIT II "B"
176
UNION NUT LINE CONNECTION
176
UNION NUT LINE CONNECTION, Replaced By: N000000006239
176
UNION NUT LINE CONNECTION
177
GLAND , Replaced By: A0019901967
177
SEAL CONE LINE CONNECTION
405
BRACKET LINE MOUNTING
405
BRACKET LINE MOUNTING
411
SCREW REAR EXHAUST PIPE TO MUFFLER
411
SCREW REAR EXHAUST PIPE TO MUFFLER
414
NUT STRAP TO BRACKET
414
NUT STRAP TO BRACKET
414
NUT , Replaced By: N910113010000
420
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
420
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
423
NUT BRACKET TO SIDE MEMBER
423
NUT , Replaced By: N910113014001
423
NUT BRACKET TO SIDE MEMBER
429
BRACKET DELIVERY LINE TO POWER CYLINDER
429
BRACKET DELIVERY LINE TO POWER CYLINDER
438
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
441
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
441
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
441
NUT , Replaced By: N913004008001
441
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
447
SHIM SUPPORT TO FRAME 240X40X5 MM
447
SHIM SUPPORT TO FRAME 240X40X5 MM
525
CLAMP FEED LINE TO THERMOSTAT
525
CLAMP DELIVERY AND SUCTION LINES TO STEERING
525
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
525
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
525
CLAMP DELIVERY AND SUCTION LINES TO STEERING
525
CLAMP FEED LINE TO THERMOSTAT
525
CLAMP BRACKET TO ACCUMULATOR
525
CLAMP BRACKET TO ACCUMULATOR
525
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
525
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
531
CLAMP HOSE ON AIR COMPRESSOR SUCTION LINE,V 225942
531
CLAMP LINE MOUNTING
531
SPACER. CLAMP
531
CLAMP LINE MOUNTING
531
SPACER. CLAMP
537
SCREW , Replaced By: N304017006018
537
SCREW PUMP TO BRACKET
537
SCREW COVER PLATE TO BRACKET
537
SCREW LICENSE PLATE TO BRACKET
537
SCREW , Replaced By: N304017006020
537
SCREW COVER PLATE TO COVER PLATE M 6 X 12
537
SCREW CAB FLOOR COVERING M 6X25
537
SCREW COVER PLATE TO BRACKET
537
SCREW COVER PLATE TO COVER PLATE M 6 X 12
537
SCREW LICENSE PLATE TO BRACKET
537
SCREW PUMP TO BRACKET
546
NUT , Replaced By: N913004006001
546
NUT STRAP TO BRACKET
546
NUT , Replaced By: N910113010000
546
NUT PUMP TO BRACKET
999
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
999
GLAND , Replaced By: A0019901167
999
SCREW , Replaced By: N304017008027
999
SCREW , Replaced By: N304017006016
999
HOSE , Replaced By: A3859971682
999
SPRING , Replaced By: A0029935201
999
HOSE , Replaced By: A6999974082
999
BRACKET , Replaced By: A6234750584
999
BRACKET OIL LINE TO ENGINE
999
BRACKET
999
BRACKET
999
BRACKET COMPRESSED AIR LINE TO LEFT SIDE MEMBER, NOT USED
999
BRACKET LINES TO SIDE MEMBER
999
BRACKET AT PUMP
999
BRACKET POWER CYLINDER DELIVERY LINE,5 556098
999
BRACKET ,5 422268, Replaced By: A6254662743
999
LINE , Replaced By: A0005516256
999
LINE , Replaced By: A0005516256
999
LINE , Replaced By: A0005516256
999
LINE , Replaced By: A0005516256
999
LINE , Replaced By: A0005516256
999
LINE , Replaced By: A0005516256
999
LINE , LENGTH AVAILABLE: 3000 MM, Replaced By: A0005516256
999
BRACKET COMPRESSED AIR LINE TO SIDE MEMBER
999
BRACKET , Replaced By: A6564660040
999
CLAMP , Replaced By: A6739950001
999
CLAMP LINE MOUNTING
999
HOSE , Replaced By: A6999974082
999
PISTON , Replaced By: A0004665783
999
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004664291
999
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004664291
999
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004664291
