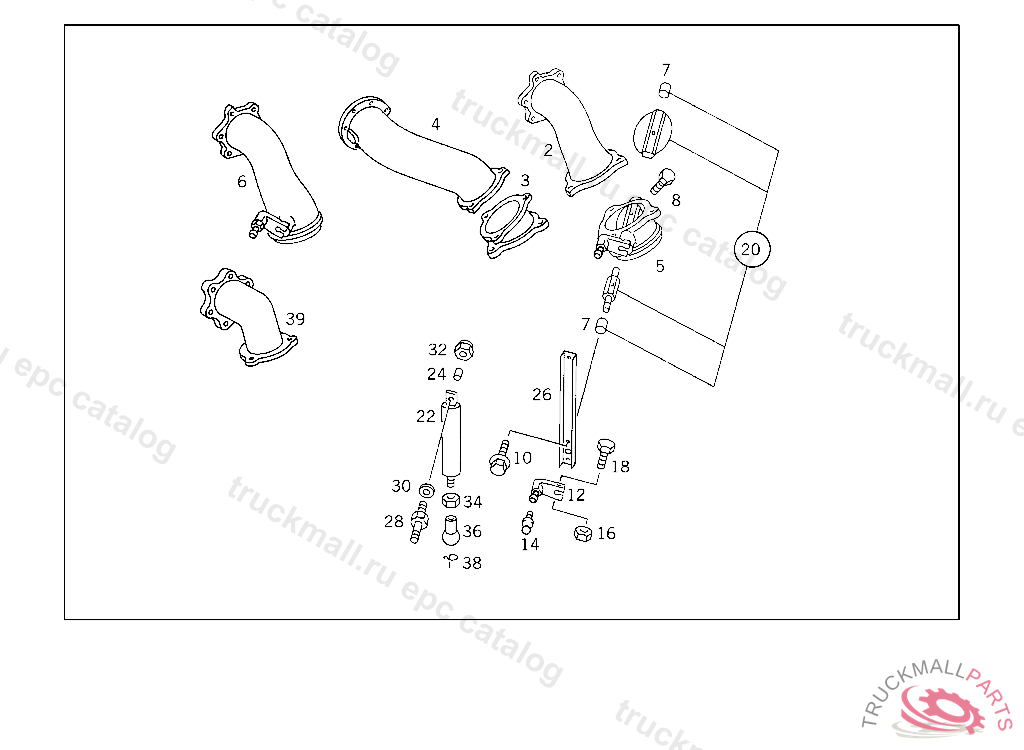

Поз.
Артикул
Описание
2
FLANGE LEFT
3
FLANGE INTERMEDIATE PIECE,FRONT
4
FLANGE RIGHT
4
FLANGE RIGHT
5
THROTTLE HOUSING LEFT
6
THROTTLE HOUSING RIGHT
6
THROTTLE HOUSING RIGHT
7
BUSHING
8
SCREW SHAFT TO THROTTLE VALVE
8
SCREW , Replaced By: N000933008390
10
SCREW BRACKET TO THROTTLE HOUSING
12
LEVER LEVER TO EXHAUST-BRAKE THROTTLE VALVE SHAFT
12
LEVER LEVER TO EXHAUST-BRAKE THROTTLE VALVE SHAFT
14
BALL PIVOT POWER CYLINDER TO THROTTLE VALVE LEVER
16
NUT BATTERY MOUNTING
16
NUT CYLINDER TO BRACKET TO0002902112
16
NUT BATTERY MOUNTING
18
SCREW LEVER TO THROTTLE VALVE SHAFT
18
SCREW LEVER TO THROTTLE VALVE SHAFT
20
VALVE PARTS KIT
22
WORKING CYLINDER (POWER CYLINDER),EXHAUST BRAKE
22
WORKING CYLINDER (POWER CYLINDER),EXHAUST BRAKE
22
CYLINDER (POWER CYLINDER),EXHAUST BRAKE, Replaced By: A0004307926
22
CYLINDER , Replaced By: A0004305926
24
BUSHING"WABCO"
24
BUSHING"WABCO"
26
BRACKET EXHAUST-BRAKE POWER CYLINDER
26
BRACKET EXHAUST-BRAKE POWER CYLINDER
28
PIN POWER CYLINDER TO BRACKET
28
PIN POWER CYLINDER TO BRACKET
30
WASHER INTERMEDIATE SPEED STOP
32
NUT POWER CYLINDER TO BRACKET
32
NUT POWER CYLINDER TO BRACKET
34
NUT , Replaced By: N304032008006
34
NUT
34
NUT
36
BALL SOCKET POWER CYLINDER TO THROTTLE VALVE LEVER
38
CIRCLIP POWER CYLINDER TO THROTTLE VALVE LEVER
39
INTERMEDIATE PIECE THROTTLE HOUSING TO FRONT EXHAUST PIPE
39
INTERMEDIATE PIECE THROTTLE HOUSING TO FRONT EXHAUST PIPE
39
EXHAUST PIPE LEFT CONNECTOR
39
EXHAUST PIPE LEFT
39
EXHAUST PIPE LEFT CONNECTOR
39
EXHAUST PIPE RIGHT
39
EXHAUST PIPE RIGHT
39
FRONT EXHAUST PIPE RIGHT
39
FRONT EXHAUST PIPE RIGHT
999
BRACKET TAIL PIPE TO SIDE MEMBER
