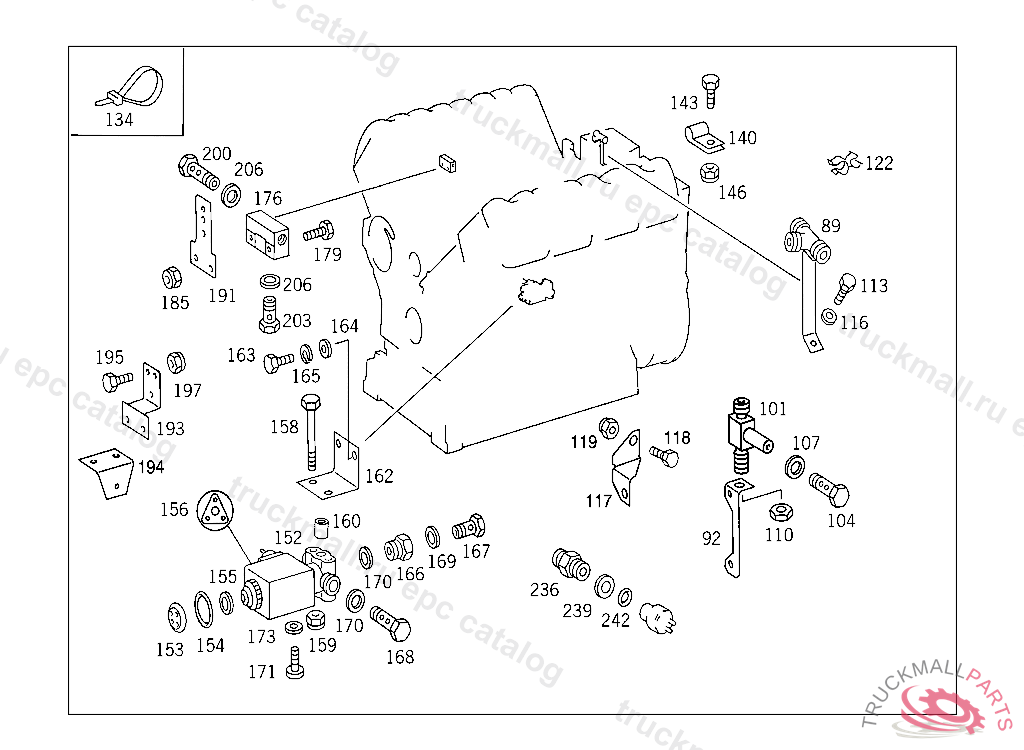

Поз.
Артикул
Описание
89
BRACKET COMPRESSED AIR LINE TO INTAKE MANIFOLD, LEFT FRONT
92
BRACKET (T-FITTING) EXHAUST BRAKE LINE CONNECTION,5 908244K 012508
101
T-FITTING LINE CONNECTION
104
HOLLOW SCREW LINE CONNECTION
107
SEAL RING LINE CONNECTION
110
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
113
SCREW BRACKET TO ENGINE
116
WASHER
116
WASHER , Replaced By: N007349008007
117
BRACKET AT ENGINE REAR SUSPENSION EYE,Z 903108
118
SCREW SUPPORT TO CROSS MEMBER M 10X28
119
NUT , Replaced By: N910113010000
119
NUT STRAP TO BRACKET
122
LOOM TIE BRAKE LINE MOUNTING
134
LOOM TIE LINE MOUNTING 280 MM
134
LOOM TIE LINE MOUNTING
140
CLAMP LINE MOUNTING
140
CLAMP LINE MOUNTING
143
SCREW , Replaced By: N304017006016
143
SCREW PUMP TO BRACKET
146
NUT OIL TANK TO BRACKET
146
NUT , Replaced By: N913002006009
146
NUT , Replaced By: N913004006001
146
NUT PUMP TO BRACKET
152
VALVE (3/2-WAY SOLENOID VALVE) EKS
153
PROTECTIVE CAPWABCO
154
SEAL RINGWABCO
154
SEAL RINGBOSCH
155
SEAL RINGBOSCH
156
GASKET KITKNORR
158
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
159
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
159
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
159
NUT , Replaced By: N913004008001
160
SEAL RING VALVE TO VALVE
162
BRACKET 3/2-WAY SOLENOID VALVE
163
SCREW , Replaced By: N304017008016
163
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
164
WASHER EXHAUST MUFFLER TO STRAP
164
WASHER , Replaced By: N000125008443
165
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
166
THREADED UNION CONSTANT THROTTLE 3/2-WAY VALVE, CONNECTION: "15"
167
HOLLOW SCREW , Replaced By: N915036010108
167
HOLLOW SCREW HEATING CONNECTION
167
HOLLOW SCREW FUEL LINE TO FEED PUMP
168
HOLLOW SCREW LINE CONNECTION
169
SEAL RING FUEL LINE TO FEED PUMP
170
SEAL RING LINE CONNECTION
171
SCREW TO PLUG THE FREE CONNECTIONS
173
SEAL RINGBOSCH
176
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
179
SCREW TWO-WAY VALVE TO BRACKET
185
NUT TWO-WAY VALVE TO BRACKET
191
BRACKET CONNECTOR TO FRAME
191
BRACKET , Replaced By: A6504312840
193
BRACKET SHUTTLE VALVE,K 016929
195
SCREW BRACKET ON LOAD SENSOR
197
NUT , Replaced By: N913004006001
197
NUT PUMP TO BRACKET
200
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
203
HOLLOW SCREW FUEL LINE TO FEED PUMP
203
HOLLOW SCREW , Replaced By: N915036010108
206
SEAL RING FUEL LINE TO FEED PUMP
236
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
239
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
239
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
242
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
999
SHIM 3/2-WAY SOLENOID VALVE
999
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
999
T-FITTING , Replaced By: A0009902670
999
CLAMP ,K 147121, Replaced By: N000000000319
