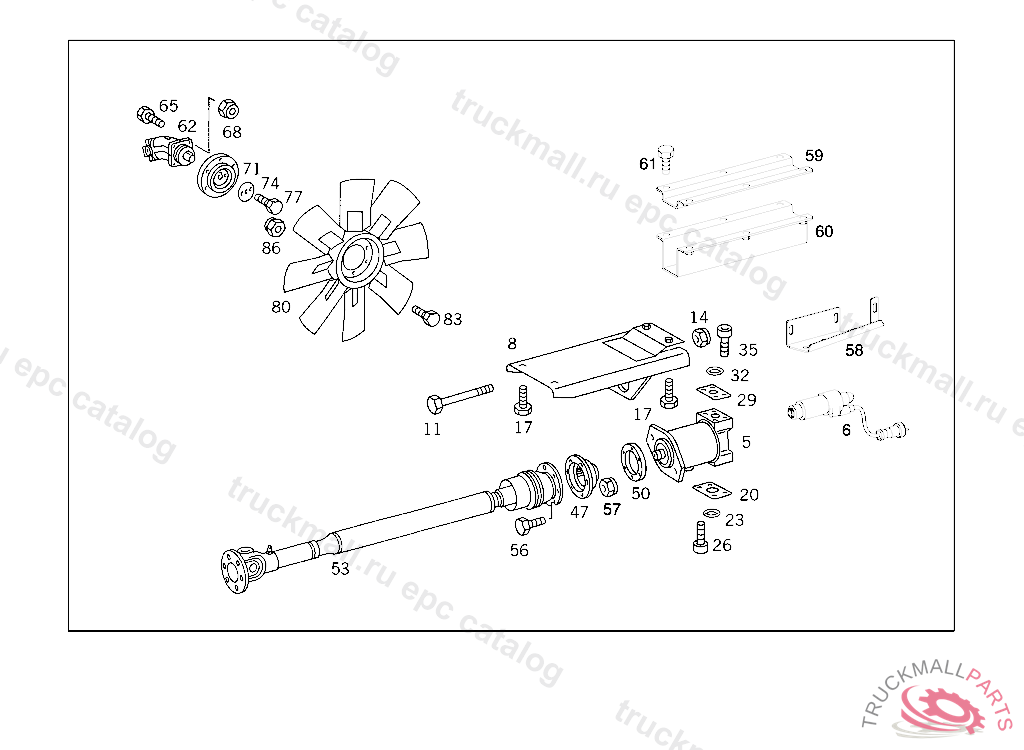

Поз.
Артикул
Описание
5
HYDRAULIC PUMP REAR COOLING SYSTEM
6
VALVE
8
BRACKET HYDRAULIC PUMP
11
SCREW LEFT AND RIGHT CONSOLES TO CAB
11
SCREW , Replaced By: N308676012015
14
NUT SUPPORT TO SIDE MEMBER
17
SCREW BRACKET TO LEFT SIDE MEMBER
20
FLANGE SUCTION LINE TO HYDRAULIC PUMP
23
SEAL RING SUCTION LINE TO HYDRAULIC PUMP
26
SCREW PIPE TO CHARGING AIR INTERCOOLER
29
FLANGE DELIVERY PIPE TO HYDRAULIC PUMP
32
SEAL RING DELIVERY LINE TO HYDRAULIC PUMP
35
SCREW PIPE TO CHARGING AIR INTERCOOLER
47
FLANGE PROPELLER SHAFT TO HYDRAULIC PUMP
50
WASHER (SHRINK WASHER)
53
DRIVE SHAFT DRIVE SHAFT
56
SCREW BRACKET TO EXHAUST PIPE BRACKET
56
SCREW BRACKET TO EXHAUST PIPE BRACKET
56
SCREW BRACKET TO EXHAUST PIPE BRACKET
56
SCREW , Replaced By: N304017008024
57
NUT
57
NUT
58
SUPPORT INTERMEDIATE SHAFT COVERING,Z 903718
59
PROTECTIVE PLATE PROPELLER SHAFT,Z 903718
60
COVERING PROPELLER SHAFT,Z 903718
61
SCREW LINE MOUNTING M 10X20
62
HYDRAULIC PUMP FAN MOTOR
65
SCREW , Replaced By: N304017008018
65
SCREW SUPPORT TO FENDER
68
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
68
NUT , Replaced By: N913004008001
68
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
71
HUB FAN
74
WASHER HUB TO FAN MOTOR
77
SCREW HUB TO FAN MOTOR
77
SCREW END PIECE TO EXHAUST PIPE M 10X25
80
FAN FAN TO FAN DRIVE
80
FAN , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 6 901620, Replaced By: A0022059306
83
SCREW VALVE TO CROSS MEMBER, NOT USED
86
NUT STRAP TO BRACKET
999
VALVE
999
FILTER ELEMENT
999
PROPELLER SHAFT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6991550003
