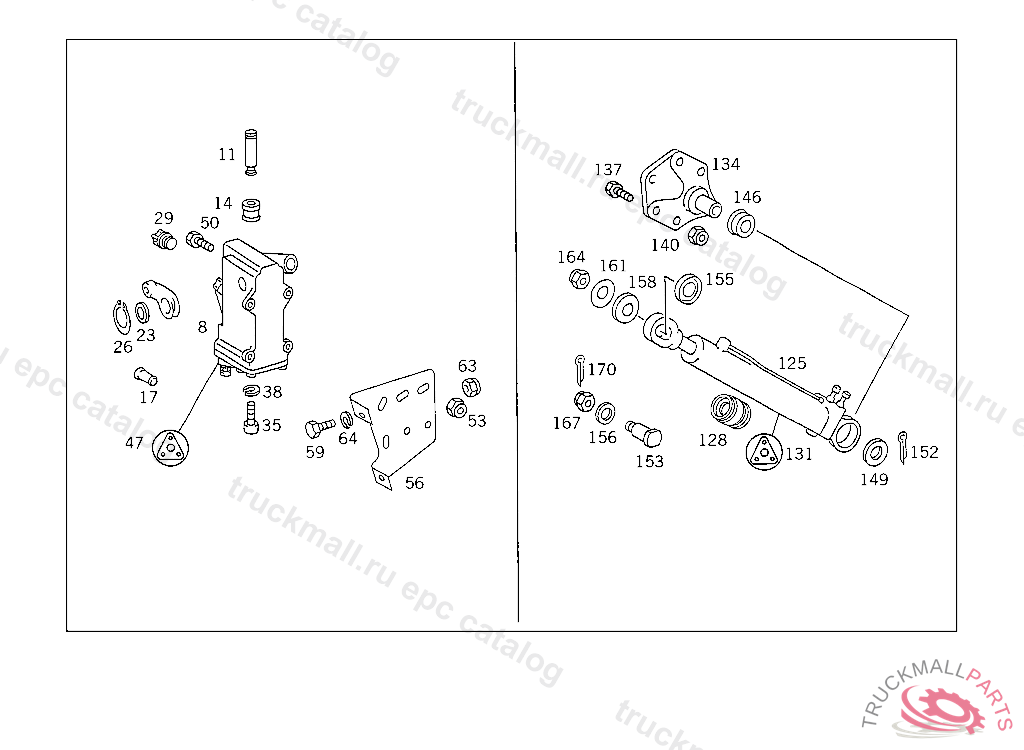

Поз.
Артикул
Описание
8
PUMP , Replaced By: A0005537901, +001A0015534205
8
PUMP (HAND PUMP) WEBER
11
PISTONTO 000 553 79 01,WEBER
14
VALVETO 000 553 79 01,WEBER
17
FILTER
23
FITTED WASHER
26
LOCK RING
29
SCREW OIL FILLING HUNGER
29
SCREW
35
SCREW , Replaced By: N000912008201
35
SCREW , Replaced By: N000000000190
35
SCREW BOX COVER TO 000 553 79 01,000 553 89 01
35
SCREW
38
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
47
GASKET KIT HAND PUMP TO 000 553 68 01
47
GASKET KIT HAND PUMP
50
SCREW BRACKET TO SIDE MEMBER
50
SCREW , Replaced By: N304017010002
53
NUT , Replaced By: N910113010000
53
NUT STRAP TO BRACKET
63
NUT , Replaced By: N910113010000
63
NUT STRAP TO BRACKET
125
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
125
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING HUNGER
131
GASKET KIT HYDRAULIC CYLINDER HUNGER,TO 000 553 89 05
131
GASKET KIT HYDRAULIC CYLINDER HUNGER,TO 001 553 47 05
134
BEARING BRACKET HYDRAULIC CYLINDER
137
SCREW RIGHT FRONT RUBBER MOUNTING M16X1,5X50
137
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
137
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
146
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
149
WASHER HYDRAULIC CYLINDER TO CAB
152
COTTER PIN6,3X36 MM
153
PIN HYDRAULIC CYLINDER TO ROCKER ARM
156
WASHER HYDRAULIC CYLINDER TO ROCKER ARM
167
NUT LEVER TO SUPPORT
170
COTTER PIN LEVER TO SUPPORT
999
FILTERHUNGER
999
GASKETHUNGER
