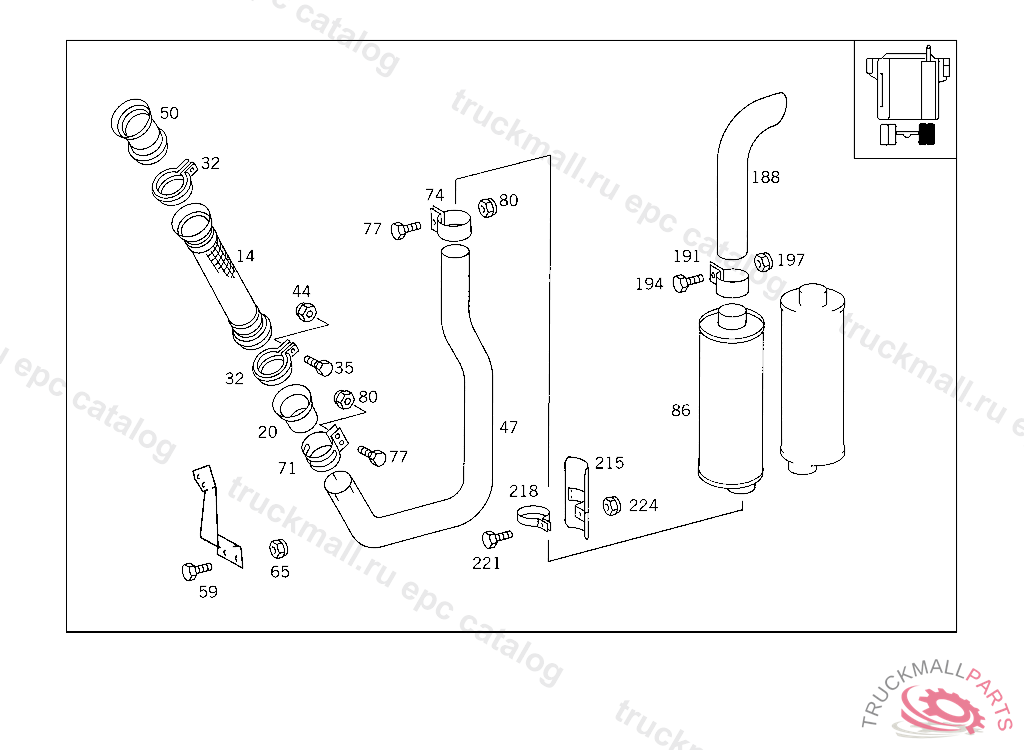

Поз.
Артикул
Описание
14
FLEXIBLE METAL TUBE FRONT LEFT
20
COLLAR (SLIDING COLLAR)
32
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
35
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
35
SCREW , Replaced By: N304017008028
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
44
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
44
NUT , Replaced By: N913004008001
47
EXHAUST PIPE FRONT EXHAUST PIPE,RIGHT,Z 902909
47
EXHAUST PIPE FRONT EXHAUST PIPE,LEFT,Z 902908
50
EXHAUST PIPE
50
EXHAUST PIPE , Replaced By: A6254900047
59
SCREW CONNECTOR TO REAR SHIFTING ROD
59
SCREW , Replaced By: N304017010047
65
NUT , Replaced By: N910113010000
65
NUT STRAP TO BRACKET
71
CLAMP EXHAUST PIPE TO BRACKET
74
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
77
SCREW BRACKET TO SIDE MEMBER
77
SCREW , Replaced By: N304017010002
77
SCREW EXHAUST PIPE TO BRACKET
80
NUT STRAP TO BRACKET
80
NUT , Replaced By: N910113010000
86
EXHAUST MUFFLER
188
REAR EXHAUST PIPE (TAIL PIPE)
191
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
194
SCREW , Replaced By: N304017010002
194
SCREW BRACKET TO SIDE MEMBER
197
NUT STRAP TO BRACKET
197
NUT , Replaced By: N910113010000
215
PROTECTIVE PLATE REAR EXHAUST PIPE, NOT USED
218
CLAMP , Replaced By: N071555100501
218
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
221
SCREW BRACKET TO SIDE MEMBER
221
SCREW , Replaced By: N304017010002
224
NUT STRAP TO BRACKET
224
NUT , Replaced By: N910113010000
999
PROTECTIVE PLATE REAR EXHAUST PIPE, NOT USED
999
BRACKET EXHAUST PIPE AND PIPE CLAMP TO BRACKET, NOT USED
999
BRACKET EXHAUST PIPE AND PIPE CLAMP TO BRACKET, NOT USED
999
ANGLE AT EXHAUST MUFFLER BRACKET
