Mercedes N006799010001 - ШАЙБА

2650/S,3050/S,3548/S, 3550/S,3553 S/LS 625.197

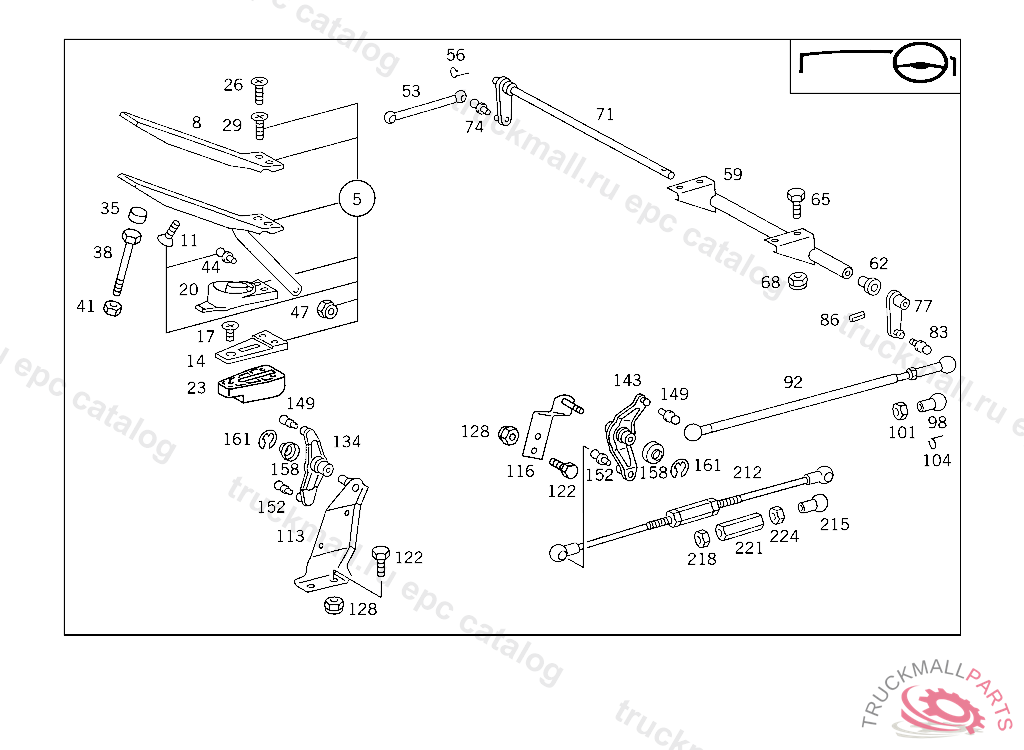

30 CONTROL - 060 ACCELERATOR PEDAL CONTROL IL. 2

Поз.
Артикул
Описание
5
A6243000304
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
A6153000104
PAD ACCELERATOR PEDAL
11
N007991005007
SCREW ACCELERATOR PEDAL
14
A6153010084
SHIM ACCELERATOR PEDAL
17
N000965006013
SCREW ACCELERATOR PEDAL TO FLOOR PLATE M 6X20
20
A6153010097
BOOT ACCELERATOR PEDAL
23
A6553010093
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
26
N000965006077
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
29
N000965006003
SCREW ACCELERATOR PEDAL TO CAB M 6X25
44
A0009911015
BALL PIVOT LOAD SENSOR
47
A0009906250
NUT AT FILTER BRACKET
98
A0009912422
BALL SOCKET PULL ROD TO LEVER
101
N000934006007
NUT BALL PIVOT TO LEVER
104
N071805010403
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
122
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
149
N071803010202
BALL STUD. BALL PIVOT TOP B10X4,5 MM
152
N071803013208
BALL PIVOT BOTTOM B13X5 MM
158
A6153010088
COVERING INTERMEDIATE BEARING
161
N006799010001
LOCK PLATE INTERMEDIATE BEARING
