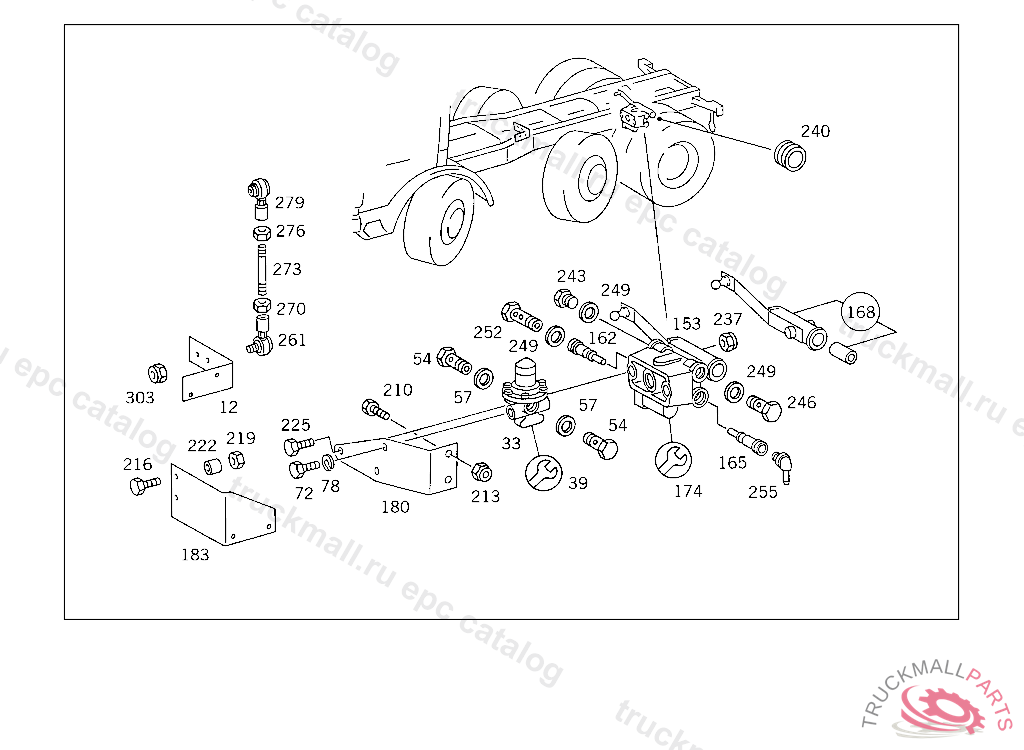

Поз.
Артикул
Описание
12
BRACKET 3/2-WAY VALVE,5 198435
33
VALVE PRESSURE RELIEF FOR BELLOWS RESIDUAL PRESSURE
33
VALVE (PRESSURE RELIEF VALVE) "WESTINGHOUSE"
39
REPAIR KIT REDUCTION VALVE
54
HOLLOW SCREW HEATING CONNECTION
57
SEAL RING LINE CONNECTION
72
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
72
SCREW , Replaced By: N304017010028
78
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
153
VALVE PNEUMATIC SUSPENSION BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
162
VALVE INTAKE
165
VALVE EXHAUST
168
LEVER (PARTS KIT)
174
REPAIR KIT
180
BRACKET AIR SPRING VALVE
183
BRACKET AIR SPRING VALVE
210
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
210
SCREW , Replaced By: N910105010011
213
NUT , Replaced By: N913004008001
213
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
213
NUT EXHAUST PIPE TO SIDE MEMBER
216
SCREW , Replaced By: N304017008024
216
SCREW BRACKET TO EXHAUST PIPE BRACKET
219
NUT STRAP TO BRACKET
222
BUSHING VALVE TO BRACKET
225
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
225
SCREW , Replaced By: N304014008002
225
SCREW , Replaced By: N304017008053
225
SCREW VALVE TO BRACKET
225
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
237
NUT BRACKET TO BRACKET
240
GROMMET AIR SPRING VALVE
240
GROMMET AT SIDE MEMBER,5 314333
240
GROMMET AIR SPRING VALVE
240
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
243
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
243
SCREW PLUGROCKINGER,TYP 59 U150
246
HOLLOW SCREW HEATING CONNECTION
249
SEAL RING LINE CONNECTION
249
SEAL RING LINE CONNECTION
252
HOLLOW SCREW LINE CONNECTION
255
BREATHER , Replaced By: A3933280065
255
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
261
YOKE BOTTOM
270
NUT
270
NUT , Replaced By: N304032008006
273
PULL ROD REAR AXLE SELF-LEVELLING DEVICE
273
PULL ROD PNEUMATIC SUSPENSION CONTROL
276
NUT INTERMEDIATE SPEED STOP
279
YOKE TOP
303
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
303
NUT , Replaced By: N913004008001
999
NUT BALL SOCKET TO ROD
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
999
BALL STUD. BALL PIVOT TOP B10X4,5 MM
999
LEVER TRAVEL SENSOR, TO BE ADAPTED DURING ASSEMBLY
999
LEVER , Replaced By: A9453200627
999
PROTECTIVE PLATE AIR SPRING VALVE TO BRACKET
999
LEVER SENSOR
999
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10", Replaced By: A0049971689, +001A0009974834
999
TANK RECESS. T-FITTING LINE CONNECTION
999
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
999
BRACKET RELAY VALVE TO CROSS MEMBER
999
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10",TO M 22, VOSS 232
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION,5 9363665 812731
999
REPAIR KIT 3/2-WAY SOLENOID VALVE
999
DISTRIBUTOR
999
BALL JOINT LEFT-HAND THREAD,BALL DIAMETER 10 MM
999
BALL JOINT TRAVEL SENSOR
