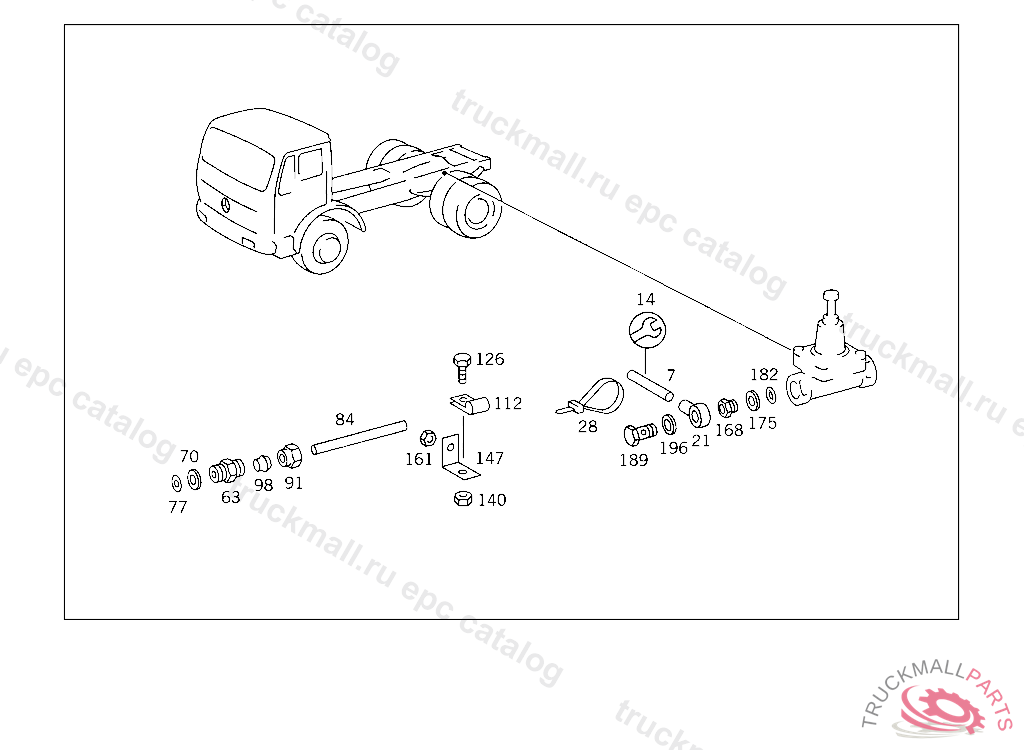

Поз.
Артикул
Описание
7
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
7
HOSE , Replaced By: A0009872827
14
FITTING , Replaced By: A0029906171
14
FITTING (PARTS KIT),LINE RUPTURE
21
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
21
BANJO UNION , Replaced By: N915052009009
28
LOOM TIE LINE MOUNTING 280 MM
63
FITTING , Replaced By: N003901018008
63
SCREW-IN FITTING LINE CONNECTION
70
THRUST RING CHECK VALVE TO AIR RESERVOIR
70
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
77
O-RING CHECK VALVE TO AIR RESERVOIR
84
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
91
UNION NUT LINE MOUNTING
98
SEAL CONE LINE MOUNTING
98
GLAND , Replaced By: A0019901167
112
CLAMP FEED LINE TO THERMOSTAT
126
SCREW PUMP TO BRACKET
126
SCREW , Replaced By: N304017006016
140
NUT , Replaced By: N913004006001
140
NUT PUMP TO BRACKET
147
BRACKET BRACKET TO CROSS MEMBER
147
BRACKET , Replaced By: A6205243040
161
NUT , Replaced By: N913004008001
161
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
168
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
175
THRUST RING CHECK VALVE TO AIR RESERVOIR
175
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
182
O-RING CHECK VALVE TO AIR RESERVOIR
189
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
196
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
