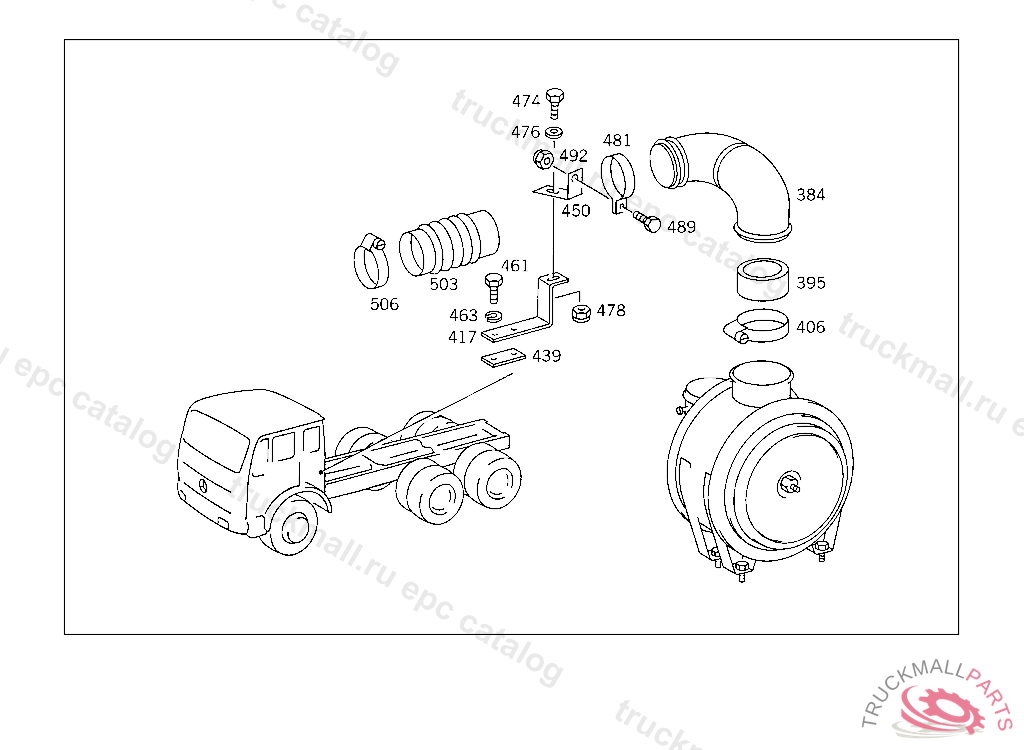

Поз.
Артикул
Описание
384
PIPE ELBOW LEFT
395
HOSE FROM AIR CLEANER TO CAB CONSOLE
395
HOSE INTAKE PIPE TO AIR CLEANER
406
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
406
CLAMP , Replaced By: N000000000678
406
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
417
BRACKET CLAMP TO PIPE ELBOW
417
BRACKET , Replaced By: A6255283140, +001A0019874340
439
SHIM CLAMP TO PIPE ELBOW
450
BRACKET CLAMP TO PIPE ELBOW,LEFT
450
BRACKET CLAMP TO PIPE ELBOW,RIGHT
450
CLAMP , Replaced By: A6255281540, +002N000961012500, +001N071555110025, +002N913004012008
450
CLAMP , Replaced By: A6255281640, +002N000961012500, +001N071550110052, +002N913004012008
461
SCREW , Replaced By: N304017008027
461
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
463
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
474
SCREW PIPE CLAMP
474
SCREW , Replaced By: N304017008021
476
WASHER , Replaced By: N000125008443
476
WASHER EXHAUST MUFFLER TO STRAP
476
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
478
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
478
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
478
NUT , Replaced By: N913004008001
481
CLAMP EXHAUST PIPE
489
SCREW BRACKET TO CROSS CONNECTION STRUT
489
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
489
SCREW , Replaced By: N304017008034
489
SCREW , Replaced By: N308676012012
492
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
492
NUT , Replaced By: N913004008001
492
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
492
NUT SUPPORT TO SIDE MEMBER
503
HOSE FROM AIR INTAKE PIPE TO ENGINE
503
HOSE , Replaced By: A0020944082
506
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
506
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
999
WASHER PARTICLE FILTER
999
BRACKET RADIATOR TO FRAME
999
SUPPORT TOP,TRANSVERSE
999
SPACER TUBE PARTICLE FILTER
999
BRACKET ROCKER PANEL
999
BRACKET CLAMP TO PIPE ELBOW,RIGHT
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N304017010002
999
SCREW PARTICLE FILTER
999
SCREW BRACKET TO LEFT SIDE MEMBER
999
WASHER , Replaced By: N007349010007
999
WASHER STRUT TO CROSS MEMBER
999
SCREW BRACKET TO SIDE MEMBER
999
NUT BRACKET TO SIDE MEMBER
999
LOCK WASHER FITTING TO BRACKET
999
NUT , Replaced By: N910113014001
