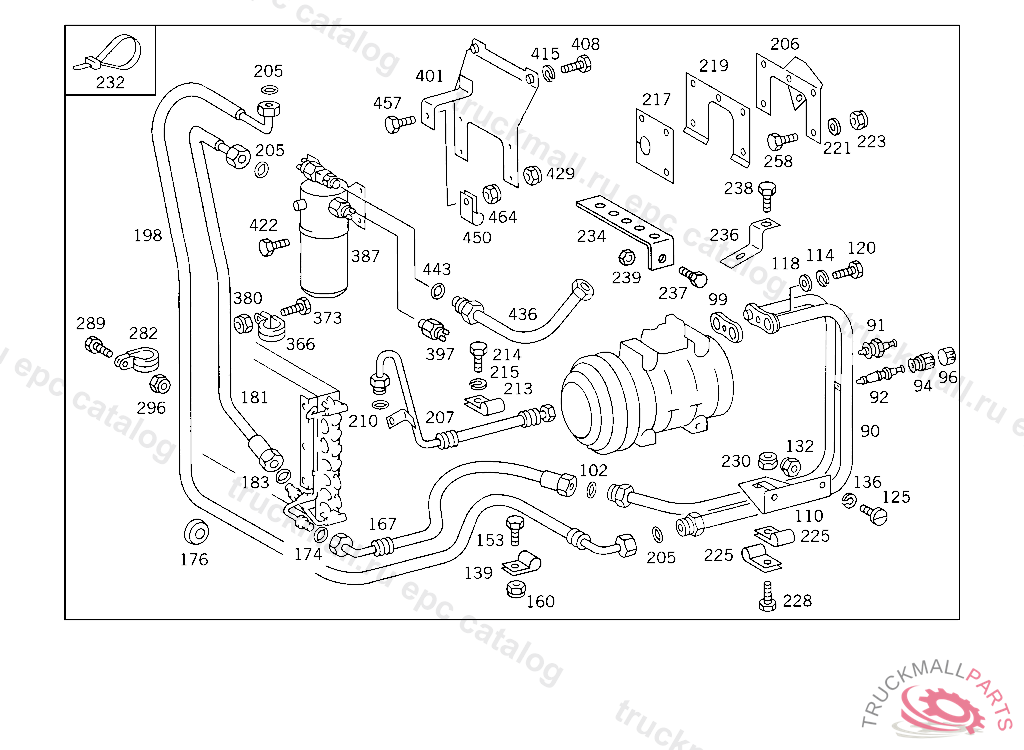

Поз.
Артикул
Описание
90
PIPE LINE REFRIGERANT
90
PIPE LINE REFRIGERANT,5 017485
90
PIPE LINE REFRIGERANT
90
PIPE LINE REFRIGERANT,5 017486
90
PIPE LINE REFRIGERANT,5 017485
91
VALVE , NOT USED
92
VALVE INSERT , NOT USED
94
LOCKING CAP REFRIGERANT LINE TO COMPRESSOR
96
CAP , NOT USED
99
FLANGE
102
O-RING HOSE TO EXPANSION VALVE 17X2
102
SEAL RING , Replaced By: A1249970345
102
SEAL RING , Replaced By: A1409970945
110
BRACKET , Replaced By: A6255006631
110
BRACKET REFRIGERANT LINE TO COMPRESSOR
114
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
118
WASHER , Replaced By: A4239900040
118
WASHER , Replaced By: N007349010003
118
WASHER , Replaced By: N007349010007
118
WASHER STRUT TO CROSS MEMBER
120
SCREW REFRIGERANT LINE TO COMPRESSOR,5 017486
120
SCREW , Replaced By: N304017008021
120
SCREW PIPE CLAMP
120
SCREW COVER PLATE TO BRACKET
125
SCREW COMPRESSED AIR LINE TO BRACKET
132
NUT , Replaced By: N913004006001
132
NUT PUMP TO BRACKET
136
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
136
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
139
CLAMP FEED LINE TO THERMOSTAT
139
CLAMP LINE MOUNTING
139
CLAMP , Replaced By: A3609951201
139
CLAMP , Replaced By: A6739950001
139
CLAMP , Replaced By: A3609950501
139
CLAMP DELIVERY AND SUCTION LINES TO STEERING
139
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
139
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
153
SCREW COVER PLATE TO BRACKET
160
NUT PUMP TO BRACKET
160
NUT , Replaced By: N913004006001
167
HOSE FROM COMPRESSOR TO CONDENSER,5 017485
167
HOSE FROM EXPANSION VALVE TO COMPRESSOR
167
HOSE FROM COMPRESSOR TO CONDENSER,5 017486
167
HOSE FROM COMPRESSOR TO CONDENSER
174
SEAL RING HOSE TO RESERVOIR 10.6 MM
176
RUBBER RING
176
RUBBER RING
181
HOSE FROM CONDENSER TO LIQUID TANK
181
PIPE LINE FROM LIQUID TANK TO EXPANSION VALVE
181
HOSE FROM CONDENSER TO LIQUID TANK
181
HOSE FROM CONDENSER TO LIQUID TANK
181
HOSE , Replaced By: A6208321723
183
SEAL RING , Replaced By: A1249970545
183
SEAL RING , Replaced By: A1409970845
183
SEAL RING HOSE TO RESERVOIR 10.6 MM
183
SEAL RING HOSE TO CONDENSER 14 MM
198
HOSE FROM EXPANSION VALVE TO COMPRESSOR,5 017486
198
HOSE FROM EXPANSION VALVE TO COMPRESSOR
198
HOSE FROM EXPANSION VALVE TO COMPRESSOR,5 017485
205
SEAL RING FROM EXPANSION VALVE TO COMPRESSOR
205
O-RING HOSE TO EXPANSION VALVE 17X2
205
SEAL RING HOSE TO CONDENSER 14 MM
205
SEAL RING , Replaced By: A1249970545
205
SEAL RING , Replaced By: A1409971145
205
SEAL RING , Replaced By: A1409970845
206
BRACKET REFRIGERANT LINE
207
HOSE
207
HOSE
210
SEAL RING HOSE TO CONDENSER 14 MM
213
CLAMP REFRIGERANT LINE TO BRACKET
213
CLAMP REFRIGERANT LINE TO BRACKET
214
SCREW APPARATUS PLATE M 6X85
215
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
217
GASKET PIPE LINE TO AIR DUCT, LEFT
217
GASKET PIPE LINE TO AIR DUCT, RIGHT
219
PRESSURE PLATE PIPE LINE TO AIR DUCT
221
WASHER , Replaced By: N009021006208
221
WASHER COMPRESSED AIR LINE TO BRACKET
223
NUT PUMP TO BRACKET
223
NUT , Replaced By: N913004006001
225
CLAMP PIPE LINE TO PIPE LINE
225
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
228
SCREW BRACKET TO SIDE MEMBER
228
SCREW , Replaced By: N304017008040
230
NUT , Replaced By: N913004008001
230
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
232
LOOM TIE LINE MOUNTING
234
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
236
BRACKET PIPE LINE TO CONVERTER
237
SCREW PIPE CLAMP
237
SCREW LICENSE PLATE TO BRACKET
237
SCREW , Replaced By: N304017006020
237
SCREW , Replaced By: N304017008021
238
SCREW BRACKET TO CONVERTER HOUSING
239
NUT PUMP TO BRACKET
239
NUT , Replaced By: N913004006001
239
NUT , Replaced By: N913004008001
239
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
258
SCREW , Replaced By: N304017008034
258
SCREW BRACKET TO CROSS CONNECTION STRUT
282
CLAMP DELIVERY AND SUCTION LINES TO FRAME
282
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
282
CLAMP HOSE TO FLANGE AND TO VALVE
289
SCREW CAB FLOOR COVERING M 6X25
296
NUT PUMP TO BRACKET
296
NUT , Replaced By: N913004006001
366
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
366
CLAMP HOSE TO FLANGE AND TO VALVE
366
CLAMP DELIVERY AND SUCTION LINES TO FRAME
366
CLAMP BRAKE HOSE BRACKET
366
CLAMP FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BRACKET
373
SCREW CAB FLOOR COVERING M 6X25
380
NUT PUMP TO BRACKET
380
NUT , Replaced By: N913004006001
387
TANK REFRIGERANT
387
TANK REFRIGERANT,K 157608
387
TANK REFRIGERANT,K 157607
397
SWITCH LOW PRESSURE
397
SWITCH HIGH PRESSURE
397
SWITCH HIGH PRESSURE,K 157607
397
SWITCH ,K 157608
401
BRACKET LIQUID TANK
401
BRACKET LIQUID TANK, NOT USED
408
SCREW PUMP TO BRACKET
408
SCREW , Replaced By: N304017006016
415
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
422
SCREW COVER PLATE TO COVER PLATE M 6 X 12
422
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
422
SCREW , Replaced By: N304017006018
422
SCREW , Replaced By: N304017008016
429
NUT , Replaced By: N913004006001
429
NUT , Replaced By: N913004008001
429
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
429
NUT PUMP TO BRACKET
436
PIPE LINE FROM LIQUID TANK TO EXPANSION VALVE
443
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
443
SEAL RING HOSE TO RESERVOIR 10.6 MM
443
SEAL RING , Replaced By: A1249970345
443
SEAL RING , Replaced By: A1409970645
450
CLAMP DELIVERY AND SUCTION LINES TO STEERING
457
SCREW COVER PLATE TO COVER PLATE M 6 X 12
457
SCREW LICENSE PLATE TO BRACKET
457
SCREW , Replaced By: N304017006018
457
SCREW , Replaced By: N304017006020
464
NUT , Replaced By: N913004006001
464
NUT PUMP TO BRACKET
999
BRACKET HOSE TO RADIATOR
999
BRACKET REFRIGERANT LINE TO COMPRESSOR
999
BRACKET AT BRACKET
999
BRACKET REFRIGERANT LINE
999
HOSE FROM COMPRESSOR TO CONDENSER
999
HOSE FROM EXPANSION VALVE TO COMPRESSOR
999
AIR DUCT
