Поз.
Артикул
Описание

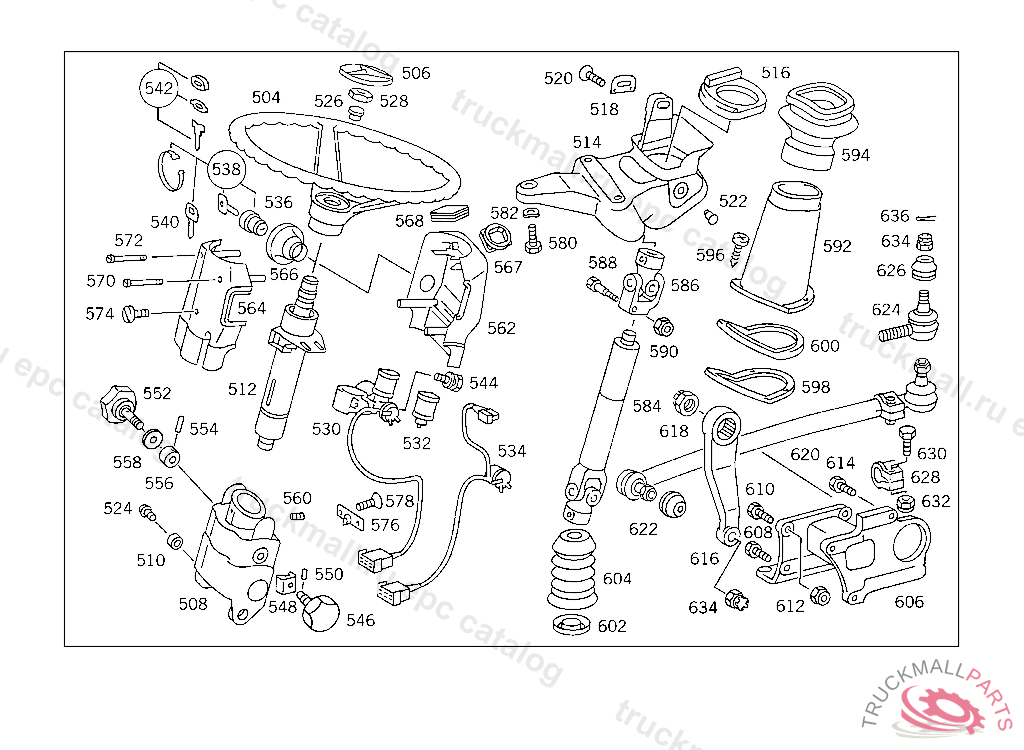

504
STEERING WHEEL , NO.8316INO.7C52INO.7B90INO.9051I II I
506
BADGE STEERING WHEEL, NO.8316INO.7C52INO.7B90INO.9051I II I
508
STEERING COLUMN END ADJUSTABLE STEERING COLUMN,4 727154
508
STEERING COLUMN END , FIRST EXHAUST STOCK OF OLD PARTS FROM IDENT NO. 4 727154 - 5 468371, Replaced By: A3054600452
510
BUSHING STEERING COLUMN BRACKET
512
BEARING STEERING SHAFT,5 2200815 468371
512
BEARING STEERING SHAFT,5 468372
512
BEARING STEERING SHAFT,5 2200815 468371
512
BEARING
514
STEERING COLUMN BRACKET ADJUSTABLE STEERING COLUMN,4 430730
516
RUBBER PAD ADJUSTABLE STEERING COLUMN TO 383 460 09 31
518
WASHER ADJUSTABLE STEERING COLUMN
520
SCREW WASHER TO STEERING COLUMN BRACKET M 5X12,4 231946
522
PLUG STEERING COLUMN END,5 0627235 113997
524
PIN STEERING COLUMN BRACKET TO STEERING COLUMN END
528
NUT STEERING WHEEL TO STEERING COLUMN
530
STEERING LOCK LESS TUMBLER,4 602883
532
CONTACTOR SOLENOID SWITCH
534
SWITCH IGNITION SWITCH,4 602883
536
TUMBLER LESS KEY HUF, STATE LOCK NUMBER WHEN ORDERING UP TO IDENT NO.: 5 447412, EXCEPT 5 446593
538
TUMBLER WITH 2 KEYS HUF
540
KEYHUF, STATE LOCK NUMBER WHEN ORDERING
540
KEYYMOS, STATE LOCK NUMBER WHEN ORDERING
542
KEY BLANK HUF
544
SCREW (BREAK-OFF BOLT),STEERING LOCK MOUNTING
546
HANDLE LEFT,4 727154
546
HANDLE , Replaced By: A6554600369
546
HANDLE , Replaced By: A6754600369
548
THRUST PLATE STEERING WHEEL HEIGHT ADJUSTMENT,4 727154
550
CLAMPING SLEEVE , Replaced By: A6559910061
550
DOWEL PIN STEERING WHEEL TILT ADJUSTMENT,4 188879
552
HANDLE RIGHT,4 430730
552
HANDLE , Replaced By: A6554600469
554
CLAMPING SLEEVE STEERING WHEEL TILT ADJUSTMENT,4 231946-4 430729
556
THRUST PLATE
556
THRUST PLATE , Replaced By: A3834620363
558
DISC SPRING STEERING WHEEL TILT ADJUSTMENT,4 231946-4 430729
560
HEADLESS SETSCREW LEFT HANDLE
560
HEADLESS SETSCREW , USED WITH MERCEDES-BENZ PLATFORM, Replaced By: N000417004011
562
SHELL STEERING COLUMN PANELLING, BLACK,NO.9051,5 220081 STATE COLOR WHEN ORDERING
564
SHELL STEERING COLUMN PANELLING, BLACK,NO.9051,5 220081 STATE COLOR WHEN ORDERING
567
BOOT STEERING COLUMN PANELLING, BLACK,NO.9051, STATE COLOR WHEN ORDERING
568
BOOT STEERING COLUMN PANELLING, BLACK,NO.9051, NO.8316I I I I IIINO.7C52I I I II IINO.7B90 III III NO.9051II I
572
SCREW STEERING COLUMN PANELLING
574
SCREW STEERING COLUMN PANELLING M 5X13
576
GUIDE STEERING SHAFT,4 430730
576
GUIDE , FIRST EXHAUST STOCK OF OLD PARTS FROM IDENT NO. 4 430730 - 5 468371, Replaced By: A3834600136
578
SCREW GUIDE TO STEERING COLUMN END,4 430730
580
SCREW REAR EXHAUST PIPE TO MUFFLER
582
SPRING WASHER STEERING COLUMN BRACKET TO CAB
584
STEERING SHAFT
584
STEERING SHAFT
584
STEERING SHAFT , Replaced By: A6554600809
584
STEERING SHAFT , Replaced By: A6504600409
586
UNIVERSAL JOINT , Replaced By: A0004600157, +002A3819900114
586
UNIVERSAL JOINT ,5 463985, Replaced By: A0004600057, +002A3819900114
586
UNIVERSAL JOINT ,5 463985
586
UNIVERSAL JOINT ,5 463985
588
SCREW STEERING SHAFT TO STEERING M 8X42
588
SCREW UNIVERSAL JOINT TO STEERING COLUMN M 8X38,5 463984
590
NUT STRAP TO BRACKET
590
NUT. HEXAGON NUT , Replaced By: N910113008001
592
PROTECTIVE SLEEVE PROTECTIVE SLEEVE TO CAB FLOOR
594
BOOT STEERING COLUMN COVERING,TOP, NO.8316INO.7C52INO.7B90INO.9051I II I
596
SHEET METAL SCREW , Replaced By: N007981005321
596
SHEET METAL SCREW BOOT TO CAB FLOOR
598
GASKET PROTECTIVE SLEEVE TO CAB FLOOR
600
REINFORCEMENT PROTECTIVE SLEEVE TO CAB FLOOR
602
WASHER UNIVERSAL JOINT COVERING
604
BOOT UNIVERSAL JOINT COVERING, NO.8316INO.7C52INO.7B90INO.9051I II I
606
STEERING SUPPORT AT FRAME
606
STEERING SUPPORT STEERING TO FRAME, TO BE ADAPTED DURING ASSEMBLY
608
SCREW RUBBER MOUNTING TO SUPPORTING ARM M 16X1.5X80
610
SCREW FOLLOWER FLANGE TO PROPELLER SHAFT
610
SCREW , Replaced By: N308676016004
612
NUT , Replaced By: N910113016001
612
NUT CONSOLE TO SUPPORT
614
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
614
SCREW , Replaced By: N308676016006
616
PITMAN ARM
616
PITMAN ARM
618
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
618
NUT PITMAN ARM TO STEERING BOX ASSEMBLY,5 386585
620
DRAG LINK , Replaced By: A3874603505
620
DRAG LINK , Replaced By: A3874603205
620
DRAG LINKLEMFOERDER,5 593344
620
DRAG LINKEHRENREICH,5 593344
620
DRAG LINKLEMFOERDER,5 593344
620
DRAG LINKEHRENREICH,5 593344
622
BOOT DRAG LINK
622
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004621796
624
DRAG LINK END , Replaced By: A0014607748
624
DRAG LINK END , Replaced By: A0014602248
624
DRAG LINK END , Replaced By: A0014602248
624
DRAG LINK END , Replaced By: A0014601248, +001A0019905451
624
DRAG LINK END , Replaced By: A0014600848
624
DRAG LINK END , Replaced By: A0004602848
624
DRAG LINK END R.H. THREAD EHRENREICH
626
BOOT DRAG LINK
626
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004621796
628
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
628
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
630
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
630
SCREW , Replaced By: N308676012017
632
NUT , Replaced By: N910113012003
632
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
634
NUT DRAG LINK TO LEVER
636
COTTER PIN DRAG LINK TO LEVER
999
HOLLOW SCREW OIL LINE TO TRANSMISSION
999
NUT , Replaced By: N910113010000
999
NUT STRAP TO BRACKET
999
SCREW PUMP TO BRACKET
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
FITTING , Replaced By: A0019900970
999
FITTING SUCTION LINE TO OIL PUMP
999
CONNECTION FITTING LINE CONNECTIONS
999
CONNECTION FITTING , Replaced By: N003902018002
999
SCREW-IN FITTING LINE CONNECTION
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N304017006016
999
FITTING POWER STEERING PUMP TO BEARING FLANGE
999
LINE FROM HIGH PRESSURE HOSE TO STEERING,K 014081
999
LINE , Replaced By: A0005516456, +001N915010016201
999
LINE FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE,K 014081
999
LINE (RETURN LINE),FROM STEERING TO OIL TANK,K 014081
999
BRACKET FUEL LINE TO BELL HOUSING
999
BRACKET OIL TANK
999
BRACKET LINE MOUNTING,5 901271
999
LINE FROM HIGH PRESSURE HOSE TO STEERING,5 4244355 429728
999
LINE FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE,5 901271
999
LINE
999
LINE , Replaced By: A0005516156
999
LINE , Replaced By: A0005516256
999
LINE FROM HIGH PRESSURE HOSE TO STEERING,5 429729K 014080
999
LINE FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE,5 4297295 901270
999
LINE FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE,5 424435K 014080
999
LINE (RETURN LINE),FROM STEERING TO OIL TANK,5 424435K 014080
999
SEAL RING
999
RING STEERING SHAFT
999
WASHER
999
SEAL HOLDER
999
UNIVERSAL JOINT , Replaced By: A3164600057, +002A3169900114
999
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
999
SCREW STEERING COLUMN PANELLING M 5X95,5 227753
999
HOSE FROM POWER STEERING PUMP AT ENGINE TO CUT-IN VALVE,5 429729
999
FITTING , Replaced By: N003901018008
999
NUT DRAG LINK END M 24X1.5
999
HYDRAULIC PUMP , Replaced By: A0014664101, +004N000912008166
999
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
999
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
999
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
