Поз.
Артикул
Описание

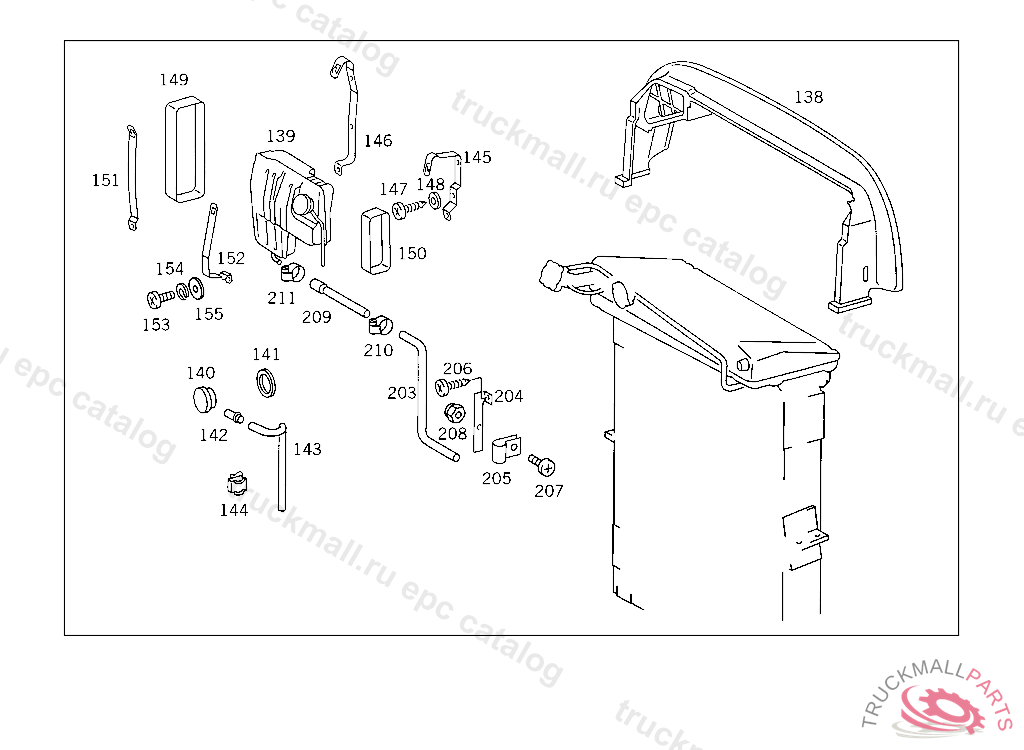

138
BOOT FAN SHROUD
139
TANK CAB,FRONT,5 129373
140
RADIATOR CAP
141
GASKET O.D., 37 MM
142
DRAIN PIPE EXPANSION TANK
143
HOSE , Replaced By: A0219977682
143
HOSE
144
CLIP CABLE HARNESS TO ROOF RAIL
145
BRACKET EXPANSION TANK,LEFT
146
BRACKET EXPANSION TANK,RIGHT
147
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
148
WASHER COMPRESSED AIR LINE TO BRACKET
148
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
149
SHIM EXPANSION TANK,LEFT
150
SHIM EXPANSION TANK,RIGHT
151
STRAP EXPANSION TANK,LEFT
152
STRAP EXPANSION TANK,RIGHT
153
SCREW CLAMP MOUNTING M 6X16
153
SCREW , Replaced By: N000000001146
154
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
155
WASHER COMPRESSED AIR LINE TO BRACKET
155
WASHER , Replaced By: N009021006208
203
BREATHER PIPE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
204
BRACKET DE-AERATION LINE TO CAB
205
CLAMP , Replaced By: N916016008200
205
CLAMP , Replaced By: A3604300143
205
CLAMP ,K 147121, Replaced By: N000000000319
205
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
206
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
207
SCREW STEP SWITCH AM 5X10
208
NUT PUMP TO BRACKET
208
NUT , Replaced By: N913004006001
209
HOSE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
210
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
210
CLAMP , Replaced By: N916017011001
211
CLAMP , Replaced By: N000000000667
211
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
SCREW , Replaced By: A0019902120
999
SPACER RING , Replaced By: N007349017002
999
BRACKET , Replaced By: A6205244040
999
GASKET , Replaced By: A4422010480
999
BRACKET , Replaced By: A3184923441
999
CONNECTOR , Replaced By: A6205010323
999
RUBBER PAD , Replaced By: A4605060033
999
FLANGE , Replaced By: A6205060261
999
GASKET , Replaced By: A6252570580
999
GASKET , Replaced By: A6255010580
999
BRACKET , Replaced By: A6224760036
999
BRACKET , Replaced By: A3184280240
999
PIPE ELBOW , Replaced By: A6555010756
