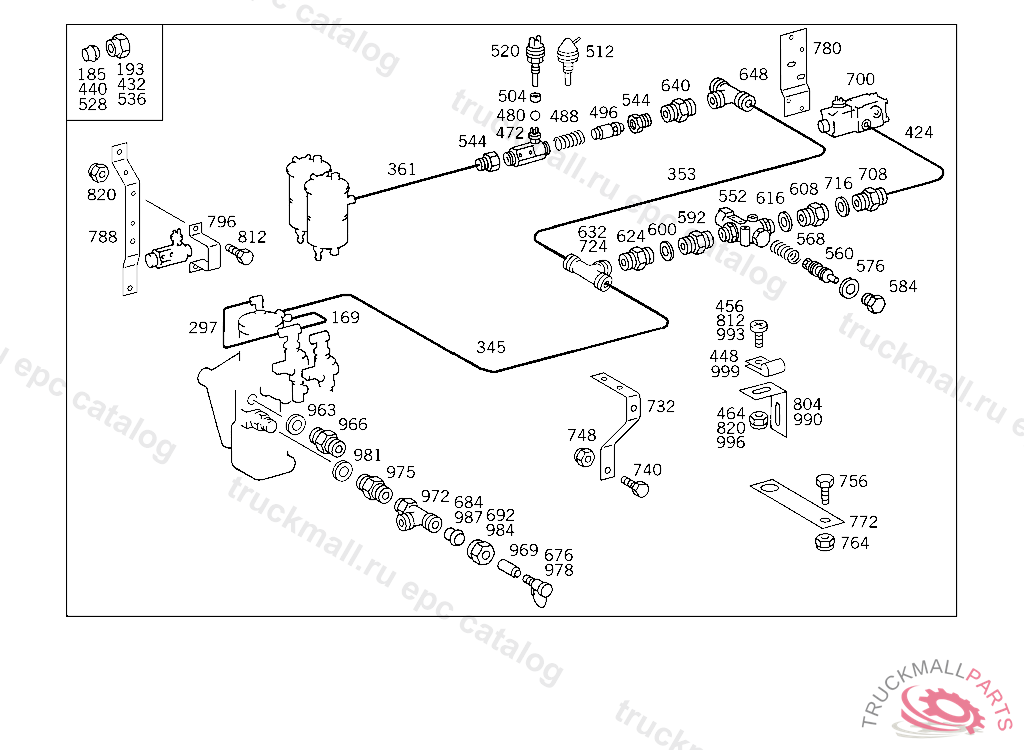

Поз.
Артикул
Описание
169
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
169
LINE , Replaced By: A0004291601
169
LINE , Replaced By: A0004291601
185
GLAND , Replaced By: A0019901267
185
SEAL CONE LINE CONNECTION
193
NUT LINE CONNECTION
193
UNION NUT LINE CONNECTION, Replaced By: N000000006243
297
LINE DELIVERY LINE
297
LINE DELIVERY LINE
297
LINE DELIVERY LINE
345
LINE FROM STEERING TO PRESSURE LIMIT VALVE T-FITTING,CIRCUIT II
345
LINE FROM STEERING TO PRESSURE LIMIT VALVE T-FITTING,CIRCUIT II
353
LINE RETURN LINE
353
LINE RETURN LINE
353
LINE RETURN LINE
361
LINE FROM RETURN LINE TO OIL TANK
424
LINE 2/2-WAY VALVE
432
UNION NUT LINE CONNECTION
432
UNION NUT LINE CONNECTION, Replaced By: N000000006239
440
GLAND , Replaced By: A0019901967
440
SEAL CONE LINE CONNECTION
448
CLAMP HOSE TO BRACKET 25/20,5 206397
448
CLAMP DELIVERY AND SUCTION LINES TO STEERING
448
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
448
CLAMP , Replaced By: A6739950001
456
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
464
NUT PUMP TO BRACKET
464
NUT , Replaced By: N913004006001
472
VALVE , Replaced By: A0004602084
472
VALVE FLOW INDICATOR,PRESSURE LIMIT VALVE, CIRCUITS I AND II
480
BALL
488
SPRING
496
PISTON
504
BUSHING
512
SENDER UNIT STEERING FAILURE
512
INDICATOR , Replaced By: A0105429317
520
SENDER UNIT
528
SEAL CONE LINE CONNECTION
528
GLAND , Replaced By: A0019901267
536
UNION NUT LINE CONNECTION, Replaced By: N000000006243
536
NUT LINE CONNECTION
544
FITTING FLOW INDICATOR,PRESSURE LIMIT VALVE, CIRCUITS I AND II
552
VALVE PRESSURE LIMIT,CIRCUIT II 150 BAR
552
VALVE (PRESSURE LIMIT VALVE) 100 BAR
552
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004664291
552
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004664291
560
PISTON , Replaced By: A0004665783
560
PISTONTO 000 466 34 91
560
PISTONTO 000 466 33 91
560
PISTON
568
SPRING
568
SPRING , Replaced By: A0029935201
576
SEAL RING
584
SCREW PLUG
592
FITTING
600
SEAL RING AT AIR COMPRESSOR
608
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
616
SEAL RING SOLENOID VALVE A 18X24
624
FITTING OIL LINE CONNECTION
632
FITTING PRESSURE LIMIT,CIRCUIT II
640
FITTING (DELIVERY LINE),FROM PUMP TO STEERING
640
FITTING (DELIVERY LINE),FROM PUMP TO STEERING, Replaced By: A9329970772
648
T-FITTING POWER STEERING
676
COUPLING BEARING BRACKET TO AIR COMPRESSOR HOUSING
684
SEAL CONE LINE CONNECTION
684
GLAND , Replaced By: A0019901967
692
UNION NUT LINE CONNECTION, Replaced By: N000000006239
692
UNION NUT LINE CONNECTION
700
VALVE PRESSURE LIMIT,CIRCUIT II 150 BAR
700
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004664291
708
SCREW-IN FITTING DELIVERY LINE TO PUMP
716
SEAL RINGTO 000 270 08 89,16 89,25 89
724
T-FITTING SUPPLY LINE FOR TRANSMISSION
732
BRACKET AT FRAME
740
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
740
SCREW , Replaced By: N304017008027
748
NUT , Replaced By: N913004008001
748
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
756
SCREW DE-AERATION LINE TO THERMOSTAT BRACKET M 10X120
764
NUT STRAP TO BRACKET
764
NUT , Replaced By: N910113010000
772
BRACKET DELIVERY LINE TO BRACKET
780
BRACKET AT TRANSMISSION
788
BRACKET 2/2-WAY VALVE AND PRESSURE LIMIT VALVE
796
BRACKET 2/2-WAY VALVE AND PRESSURE LIMIT VALVE
804
BRACKET 2/2-WAY VALVE AND PRESSURE LIMIT VALVE
804
BRACKET , Replaced By: A6205243040
812
SCREW , Replaced By: N304017010050
812
SCREW BRACKET TO LEFT SIDE MEMBER
812
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
812
SCREW 3/2-WAY VALVE TO BRACKET, UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
812
SCREW , Replaced By: N304017010055
820
NUT STRAP TO BRACKET
820
NUT TWO-WAY VALVE TO BRACKET
820
NUT , Replaced By: N910113010000
963
SEAL RING POWER STEERING PUMP TO BEARING FLANGE
963
SEAL RING LINE CONNECTION
966
FITTING POWER STEERING PUMP
966
FITTING SUCTION LINE TO OIL PUMP
966
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
966
FITTING POWER STEERING PUMP M16X1,5/M22X1,5,D 084765
966
FITTING SUCTION LINE TO OIL PUMP
966
FITTING , Replaced By: A0039971372
969
FITTING , Replaced By: A0809972472, +001A6999970189
969
FITTING BEARING BRACKET TO AIR COMPRESSOR HOUSING
972
T-FITTING POWER STEERING
972
FITTING STEERING GEAR DELIVERY LINE,CIRCUIT II
972
FITTING PRESSURE LIMIT,CIRCUIT II
972
FITTING , Replaced By: A0019900970
975
FITTING (DELIVERY LINE),FROM PUMP TO STEERING, Replaced By: A9329970772
975
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
975
FITTING (DELIVERY LINE),FROM PUMP TO STEERING
975
FITTING POWER STEERING
975
FITTING DELIVERY LINE TO PUMP
978
COUPLING BEARING BRACKET TO AIR COMPRESSOR HOUSING
981
SEAL RING SOLENOID VALVE A 18X24
981
SEAL RINGTO 006 997 00 72
984
UNION NUT LINE CONNECTION
984
UNION NUT LINE CONNECTION, Replaced By: N000000006239
987
GLAND , Replaced By: A0019901967
987
SEAL CONE LINE CONNECTION
990
BRACKET FUEL LINES TO TRANSMISSION
993
SCREW EXHAUST PIPE TO BRACKET
993
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
993
SCREW , Replaced By: A4609900601
996
NUT , Replaced By: N913004006001
996
NUT , Replaced By: N913004008001
996
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
996
NUT PUMP TO BRACKET
999
LINE FROM POWER STEERING PUMP AT ENGINE TO CUT-IN VALVE,5 429729
999
LINE FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE,5 4297295 901270
999
LINE FROM HIGH PRESSURE HOSE TO STEERING,5 429729
999
LINE FROM HIGH PRESSURE HOSE TO STEERING,5 429729
999
LINE
999
LINE , Replaced By: A0004291601
999
LINE FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE,5 393651
999
LINE FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE,5 398761
999
LINE
999
LINE FROM POWER STEERING PUMP AT TRANSMISSION TO CUT-IN VALVE,5 901271
999
LINE , Replaced By: A0004291601
999
LINE (RETURN LINE),FROM STEERING TO OIL TANK,5 424435
999
LINE (RETURN LINE),FROM STEERING TO OIL TANK,5 424435
999
LINE , Replaced By: A0004291601
999
BRACKET OIL TANK,6 9000075 398760
999
BRACKET LINE MOUNTING,6 900024
999
BRACKET BRACKET TO BRACKET
999
BRACKET
999
BRACKET
999
LINE (RETURN LINE),FROM STEERING TO OIL TANK
999
BRACKET
999
FITTING , Replaced By: A0049972272
999
BRACKET FUEL LINE TO BELL HOUSING
999
FITTING , Replaced By: A0809972472, +001A6999970189
999
NUT , Replaced By: N308675016001
999
T-FITTING LINE CONNECTIONS
999
NUT FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22",4 821954
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
WASHER
999
BOOT DRAG LINK
999
VALVE DISC , 993034
999
OIL DIPSTICK OIL TANK
999
SPACER TUBE
999
VALVE (CUT-IN VALVE),AT FRAME SIDE MEMBER IN FRONT OF STEERING BOX, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
COVER OIL TANK
999
TANK , Replaced By: A0004666802
999
INDICATOR , Replaced By: A0105429317
999
TUBE FROM HIGH PRESSURE HOSE TO STEERING
999
PUMP , Replaced By: A0005537901, +001A0015534205
999
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING HUNGER
999
T-FITTING RELAY VALVE,CONNECTION: "20"
999
SUPPORT FILTER ELEMENT
999
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
999
HOSE FROM POWER STEERING PUMP AT ENGINE TO CUT-IN VALVE,5 429729
999
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
999
LINE
999
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004621796
999
BRACKET , Replaced By: A3184280240
999
ANGLE LINE MOUNTING
999
CLAMP , Replaced By: A3604300143
999
CLAMP FEED LINE TO THERMOSTAT
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
CLAMP , Replaced By: N916016018202
999
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
999
DRAG LINKLEMFOERDER,5 593344
999
PIPE FROM HOSE LINE TO OIL FILTER, UP TO IDENT NO. 5 274831 EXCEPT FOR 5 264779, 5 268469
999
FITTING AIR COMPRESSOR,CONNECTION: "10"
999
FITTING , Replaced By: A0039971372
999
BRACKET OIL LINE TO TRANSMISSION,6 900024
999
BEARING BRACKET HYDRAULIC CYLINDER,RIGHT, NOT USED
999
CLAMP , Replaced By: A6739950001
