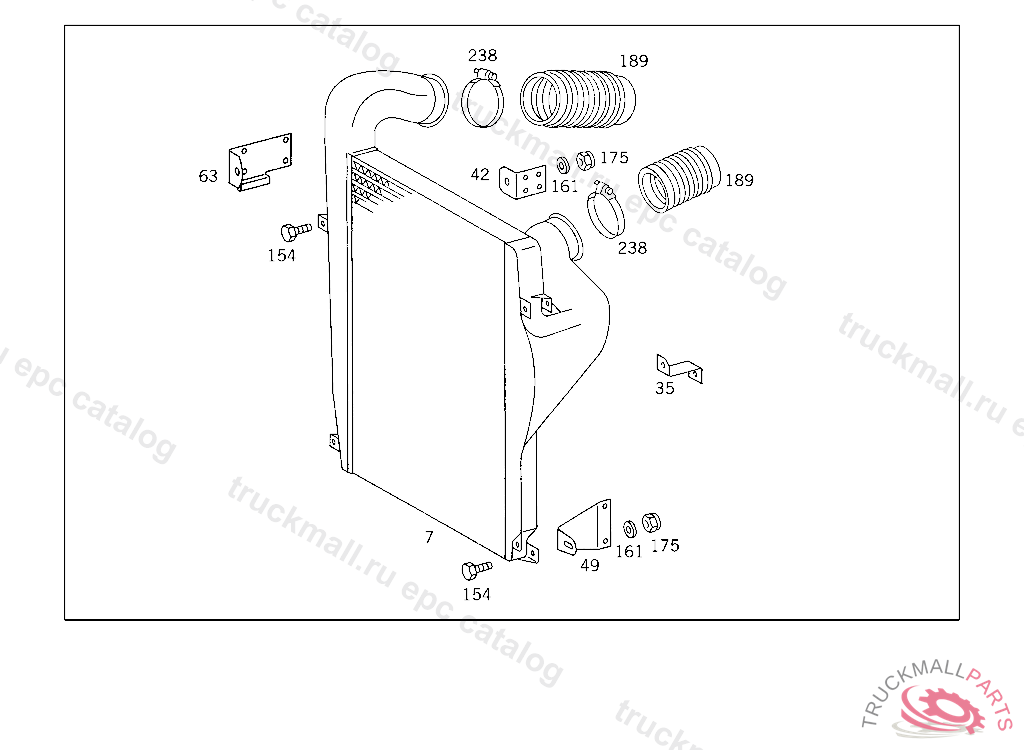

Поз.
Артикул
Описание
7
RADIATOR , Replaced By: A6525000000
7
RADIATOR , Replaced By: A6565010201
7
RADIATOR , Replaced By: A6565010001
7
RADIATOR , Replaced By: A6525012301
7
RADIATOR , Replaced By: A6565010101
7
RADIATOR ON WATER COOLER
7
RADIATOR (CHARGING AIR INTERCOOLER)
7
RADIATOR (CHARGING AIR INTERCOOLER), TO BE ADAPTED DURING ASSEMBLY
35
BRACKET CHARGING AIR INTERCOOLER,RIGHT BOTTOM
42
BRACKET CHARGE AIR INTERCOOLER
49
BRACKET CHARGING AIR INTERCOOLER,RIGHT TOP
63
BRACKET SEALING LIP TO RADIATOR
154
SCREW PUMP TO BRACKET
154
SCREW , Replaced By: N304017008021
154
SCREW , Replaced By: N304017006016
154
SCREW , Replaced By: N304017006020
154
SCREW PIPE CLAMP
154
SCREW LICENSE PLATE TO BRACKET
161
WASHER EXHAUST MUFFLER TO STRAP
161
WASHER , Replaced By: N009021008213
161
WASHER , Replaced By: N000125008443
161
WASHER BRACKET TO LEFT SIDE MEMBER
175
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
175
NUT , Replaced By: N913004008001
175
NUT , Replaced By: N913004006001
175
NUT PUMP TO BRACKET
189
HOSE FROM CHARGING AIR INTERCOOLER TO ENGINE
189
HOSE , Replaced By: A0020945282
238
CLAMP , Replaced By: A0059970690
238
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
999
CONICAL SPRING WASHER PIPE SOCKET TO OIL COOLER
999
SCREW BRACKET TO SIDE MEMBER M10X38
999
CLAMP , Replaced By: A0059970690
999
PIPE ELBOW FROM CHARGING AIR INTERCOOLER TO ENGINE
999
PIPE ELBOW FROM CHARGING AIR INTERCOOLER TO ENGINE
999
PIPE ELBOW FROM ENGINE TO CHARGE AIR INTERCOOLER
999
PIPE ELBOW FROM ENGINE TO CHARGE AIR INTERCOOLER
999
BRACKET CHARGING AIR INTERCOOLER TO RADIATOR
999
BRACKET PIPE BEND TO RADIATOR
999
BRACKET CHARGING AIR INTERCOOLER TO RADIATOR
999
BRACKET CHARGING AIR INTERCOOLER TO RADIATOR
999
BRACKET CHARGING AIR INTERCOOLER TO RADIATOR
999
BRACKET CHARGING AIR INTERCOOLER TO RADIATOR
999
RADIATOR (CHARGING AIR INTERCOOLER)
999
RADIATOR (CHARGING AIR INTERCOOLER)
999
BRACKET CHARGING AIR INTERCOOLER TO RADIATOR
999
GASKET PIPE TO CHARGING AIR INTERCOOLER
999
BRACKET AIR INTAKE PIPE TO ENGINE
999
BRACKET BRACKET TO FRAME, SIMPLE PART-PLEASE HAVE SHOP MADE
999
BRACKET CHARGE AIR PIPE
999
BRACKET TUBE TO FRAME
999
BRACKET AIR INTAKE PIPE TO BRACKET
999
BRACKET CHARGING AIR INTERCOOLER TO RADIATOR
999
HOSE AIR INTAKE PIPE TO ENGINE
