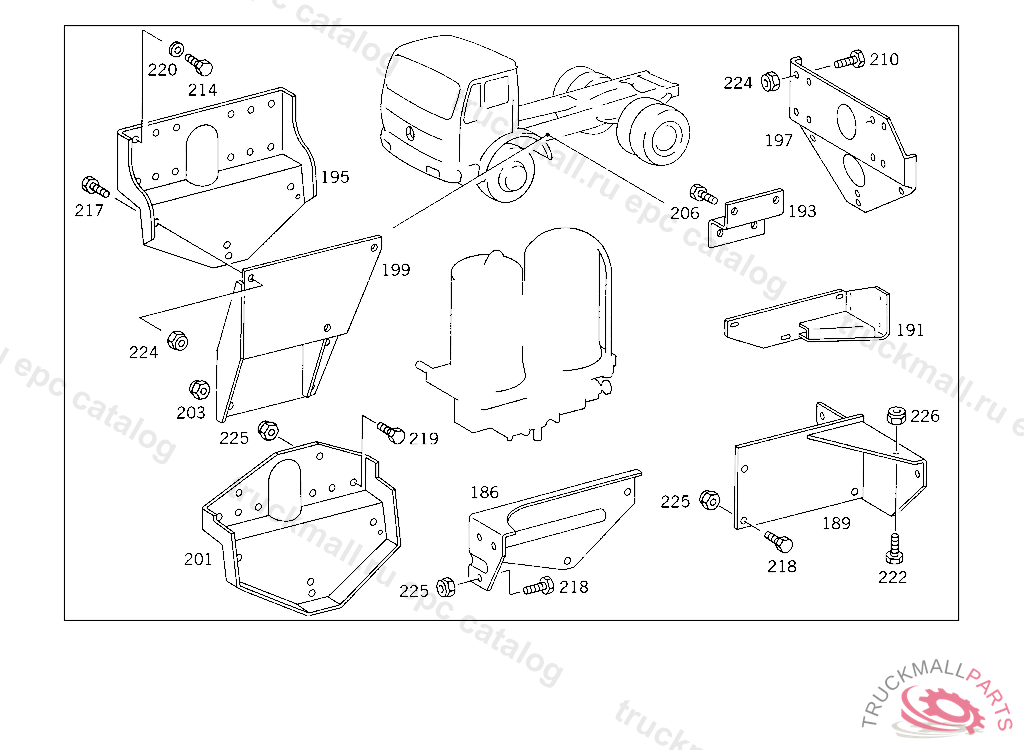

Поз.
Артикул
Описание
186
BRACKET ANTI-FREEZE DEVICE
189
BRACKET ANTI-FREEZE DEVICE,6 900023
191
BRACKET ANTI-FREEZE DEVICE,6 900024
193
BRACKET AIR DEHYDRATOR
195
BRACKET AIR DEHYDRATOR
197
BRACKET AIR DEHYDRATOR
197
BRACKET , Replaced By: A6204293640
199
BRACKET ANTI-FREEZE DEVICE
201
BRACKET ANTI-FREEZE DEVICE,5 161700
203
NUT SUPPORT TO SIDE MEMBER
203
NUT END PIECE TO EXHAUST PIPE
206
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
206
SCREW , Replaced By: N308676012012
210
SCREW , Replaced By: N308676012015
210
SCREW LEFT AND RIGHT CONSOLES TO CAB
210
SCREW CONSOLE TO SIDE MEMBER
214
SCREW LEFT AND RIGHT CONSOLES TO CAB
214
SCREW BRACKET TO SIDE MEMBER M 12X38
214
SCREW , Replaced By: N308676012015
217
SCREW BRACKET TO FRAME M 12X35
218
SCREW END PIECE TO EXHAUST PIPE M 10X25
219
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
220
WASHER PROTECTIVE PLATE TO EXHAUST PIPE
222
SCREW PUMP TO BRACKET
222
SCREW , Replaced By: N304017006016
224
NUT SUPPORT TO SIDE MEMBER
225
NUT STRAP TO BRACKET
225
NUT , Replaced By: N910113010000
226
NUT , Replaced By: N913004006001
226
NUT PUMP TO BRACKET
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
AIR CLEANERBOSCH
999
ANTI-FREEZE DEVICE , Replaced By: A0004314615
999
RESERVOIR , Replaced By: A0014327501
999
RESERVOIR , Replaced By: A0034321201
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
FILTER , Replaced By: A0004315934
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
T-FITTING PRESSURE RELIEF VALVE,CONNECTION: "10"
999
FITTING AIR RESERVOIR,CONNECTION: "13"
999
FITTING SHUTTLE VALVE,CONNECTION: "20"
999
PRESSURE REGULATOR ,5 161700, Replaced By: A0024314606
999
VALVE ,5 161700, Replaced By: A0024314706
999
RUBBER SECTION , Replaced By: A3634750320
999
BRACKET AIR CLEANER,5 088361
999
BATTERY SUPPORT , Replaced By: A6165400316
999
COVERING ANTI-FREEZE DEVICE,6 900023
999
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
