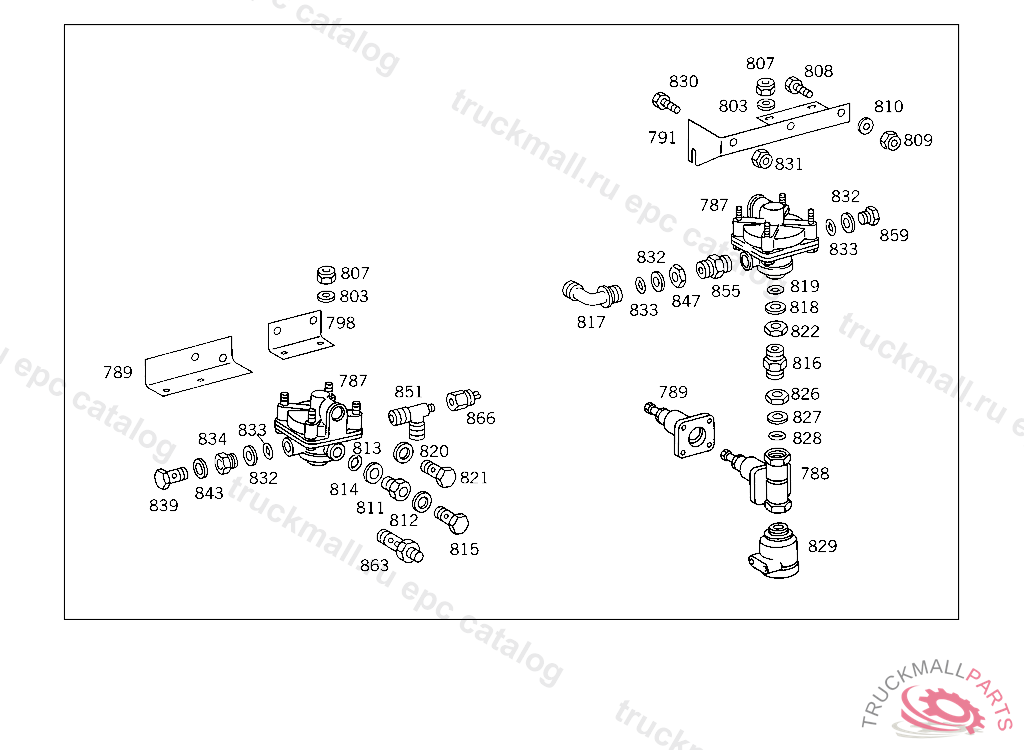

Поз.
Артикул
Описание
787
VALVE (RELAY VALVE)
788
VALVE (OVERFLOW VALVE)
789
PROTECTIVE CAP
791
BRACKET RELAY VALVE
791
BRACKET OVERFLOW VALVE
791
BRACKET RELAY VALVE
798
BRACKET RELAY VALVE
798
BRACKET , Replaced By: A6255910540
798
BRACKET RELAY VALVE
798
BRACKET RELAY VALVE
798
BRACKET RELAY VALVE,5 263623
798
BRACKET RELAY VALVE
798
BRACKET RELAY VALVE
798
BRACKET RELAY VALVE,6 900035
798
BRACKET RELAY VALVE,6 900035
803
WASHER EXHAUST MUFFLER TO STRAP
803
WASHER , Replaced By: N000125008443
803
WASHER , Replaced By: N009021008213
803
WASHER BRACKET TO LEFT SIDE MEMBER
807
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
807
NUT , Replaced By: N913004008001
808
SCREW , Replaced By: N304017008018
808
SCREW SUPPORT TO FENDER
808
SCREW REAR EXHAUST PIPE TO MUFFLER
809
NUT STRAP TO BRACKET
809
NUT , Replaced By: N913004008001
809
NUT , Replaced By: N910113010000
809
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
810
WASHER BRACKET TO CROSS MEMBER,5 434013
811
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
812
THRUST RING CHECK VALVE TO AIR RESERVOIR
812
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
813
O-RING CHECK VALVE TO AIR RESERVOIR
814
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
815
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
816
FITTING SHUTTLE VALVE,CONNECTION: "20"
817
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
818
THRUST RING CHECK VALVE TO AIR RESERVOIR
818
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
819
O-RING CHECK VALVE TO AIR RESERVOIR
820
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
821
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
822
NUT CHECK VALVE TO AIR RESERVOIR
826
NUT CHECK VALVE TO AIR RESERVOIR
827
THRUST RING CHECK VALVE TO AIR RESERVOIR
827
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
828
O-RING CHECK VALVE TO AIR RESERVOIR
829
MUFFLER TRAILER CONTROL VALVE
829
MUFFLER , Replaced By: A0004302370
830
SCREW , Replaced By: N304017008021
830
SCREW , Replaced By: N308676012012
830
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
830
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
830
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
830
SCREW PIPE CLAMP
830
SCREW EXHAUST PIPE TO BRACKET
831
NUT STRAP TO BRACKET
831
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
831
NUT SUPPORT TO SIDE MEMBER
831
NUT , Replaced By: N913004008001
831
NUT , Replaced By: N910113010000
832
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
832
THRUST RING CHECK VALVE TO AIR RESERVOIR
833
O-RING CHECK VALVE TO AIR RESERVOIR
834
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
839
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
843
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
847
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
847
NUT CHECK VALVE TO AIR RESERVOIR
851
T-FITTING AIR RESERVOIR,CONNECTION: "13", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
851
T-FITTING COMBINATION CYLINDER,CONNECTION: "12"
851
T-FITTING , Replaced By: A6559900070, +002A0009905168, +002N007603022403
855
FITTING AIR RESERVOIR,CONNECTION: "52",K 093236, Replaced By: N000000006190
855
FITTING AIR RESERVOIR,CONNECTION: "52",K 093236
855
FITTING SHUTTLE VALVE,CONNECTION: "20"
859
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
859
SCREW PLUG , Replaced By: N000908022011
863
HOLLOW SCREW FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
863
HOLLOW SCREW FITTING RELAY VALVE,CONNECTION "20",LEFT
866
SWITCH AUTOMATIC LIMIT STOP MECHANISM 7.5 BAR
866
SWITCH RELAY VALVE,CONNECTIONS: "2" ,6-7BAR
866
SWITCH (PRESSURE SWITCH) 5,5 BAR
866
SWITCH AT TRANSMISSION 6 BAR
999
THRUST RING THROTTLE VALVE,CONNECTIONS: "1,2"
999
ELBOW FITTING , Replaced By: A0004294638
999
MUFFLER , Replaced By: A0004302370
999
MUFFLER BRAKE PRESSURE REGULATOR BREATHING,5 419692
999
REPAIR KIT DIAPHRAGM PART BOSCH,209
999
REPAIR KIT PRESSURE LIMIT VALVE
999
REPAIR KIT SEAL RING BOSCH,209
999
SWITCH SUPPLY PRESSURE CONTROL
999
VALVE (TWO-/TWO-WAY VALVE)
999
REPAIR KIT PRESSURE REGULATOR WABCO
999
REPAIR KIT , Replaced By: A0004301107
999
ELBOW FITTING , Replaced By: A0049906471
999
T-FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
999
VALVE (PRESSURE LIMIT VALVE)
999
PRESSURE REGULATORBOSCH
999
PRESSURE REGULATORWABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
PRESSURE REGULATORKNORR 90310
999
FITTING (DELIVERY LINE),FROM PUMP TO STEERING, Replaced By: A9329970772
999
VALVE (THROTTLE VALVE)
999
ELBOW FITTING CHECK VALVE TO RELAY VALVE
999
SEAL RING THROTTLE VALVE,CONNECTIONS: "1,2"
999
GROMMET 2/2-WAY VALVE,CONNECTION: "1,2",5 548796
999
BRACKET METAL SPRING BELLOWS
999
BRACKET RELAY VALVE, NOT USED
999
FITTING (DELIVERY LINE),FROM PUMP TO STEERING
999
SCREW LICENSE PLATE TO BRACKET,4 300861
999
NUT SPRING-LOADED PUSH ROD
999
CLAMP LINE MOUNTING
