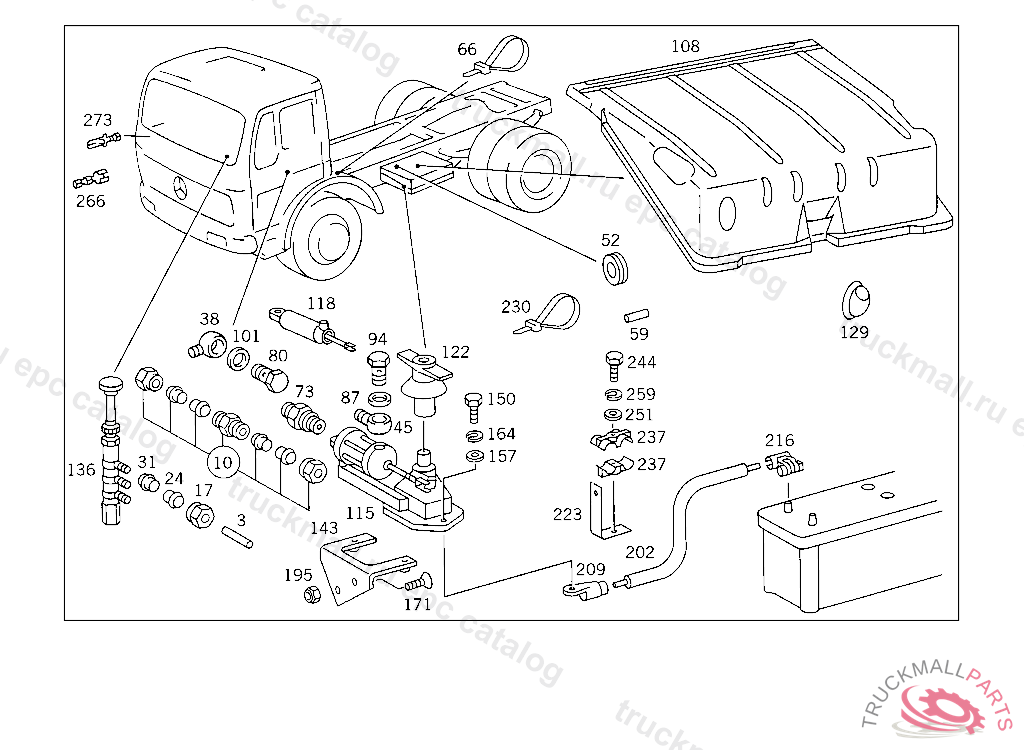

Поз.
Артикул
Описание
3
PLASTIC PIPE RISING PIPE 4X6 MM
3
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
10
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
17
UNION NUT
24
SEAL CONE
24
GLAND , Replaced By: A0019901667
31
SLEEVE LEAK LINE
38
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
38
BANJO UNION , Replaced By: N000000000364
38
BANJO UNION HOSE WIDTH, / I.D., 4/14 MM,K 169123
45
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
52
GROMMET BATTERY CASE
59
INSULATING HOSE LINE MOUNTING, ORDER BY THE METER
66
LOOM TIE LINE MOUNTING 280 MM
73
SCREW-IN FITTING , Replaced By: A0029978472
73
FITTING 3/2-WAY VALVE,CONNECTION: "30"
80
HOLLOW SCREW LINE CONNECTION
87
SEAL RING PNEUMATIC VALVE
87
SEAL RING , Replaced By: N007603010110
94
HOLLOW SCREW LINE CONNECTION
94
HOLLOW SCREW HEATING CONNECTION
101
SEAL RING LINE CONNECTION
108
COVER BATTERY/APPARATUS SUPPORT
115
SWITCH (BATTERY MASTER SWITCH)
118
CYLINDER
122
KNOB BATTERY MASTER SWITCH ACTUATION
129
GROMMET BATTERY CASE
136
VALVE BATTERY MASTER SWITCH ACTUATION
143
BRACKET BATTERY MASTER SWITCH
150
SCREW BRACKET TO CROSS CONNECTION STRUT
150
SCREW , Replaced By: N304017008034
157
WASHER , Replaced By: N000125008443
157
WASHER EXHAUST MUFFLER TO STRAP
164
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
171
SCREW REAR EXHAUST PIPE TO MUFFLER
171
SCREW END PIECE TO EXHAUST PIPE M 10X25
195
NUT STRAP TO BRACKET
195
NUT , Replaced By: N910113010000
202
ELECTRIC CABLE , Replaced By: A6735460013
202
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
209
SOLDERING TERMINAL BATTERY NEG. POLE 70 MM2
216
CABLE SHOE BATTERY CABLE 10-70 MM
223
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
223
BRACKET , Replaced By: A6205244040
230
LOOM TIE LINE MOUNTING 280 MM
237
CLAMPING PIECE BATTERY CABLE MOUNTING
244
SCREW DISTRIBUTOR TO CAB
251
WASHER , Replaced By: N009021006208
251
WASHER COMPRESSED AIR LINE TO BRACKET
259
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
266
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
266
PIN BUSHING , Replaced By: A0075458226
273
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
999
PIN BUSHING , Replaced By: A0075458226
