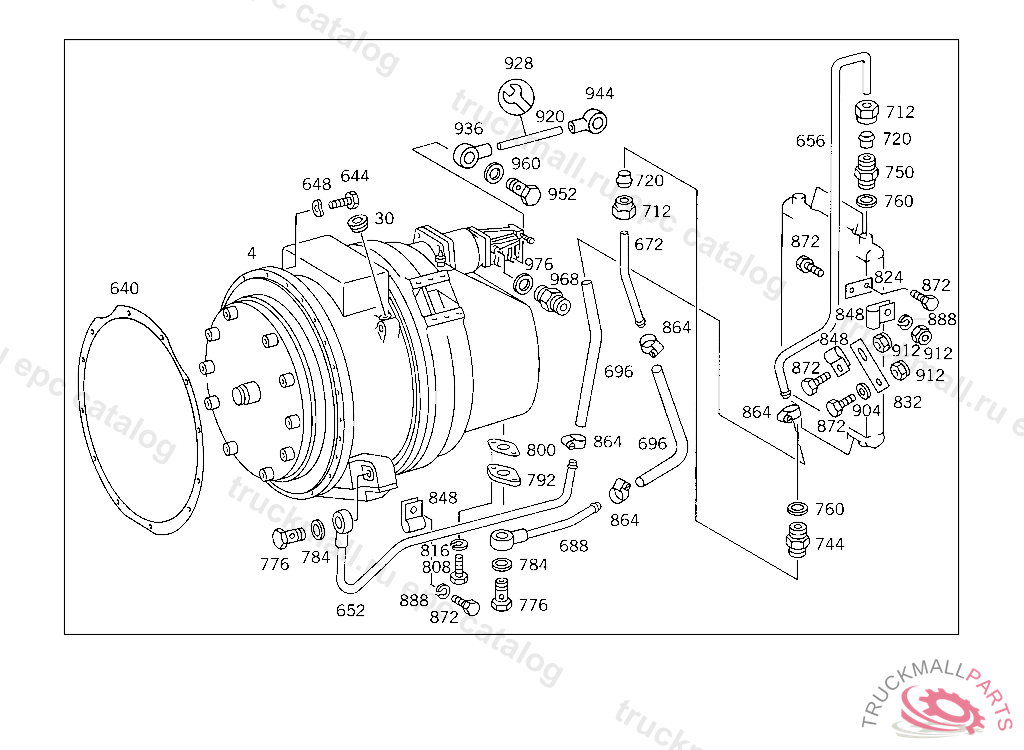

Поз.
Артикул
Описание
4
CONVERTER , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 6 900072, Replaced By: A6252500102
4
CONVERTER (CONVERTER LOCK-UP COUPLING)
640
GASKET , Replaced By: A3812510580
640
GASKET BELL HOUSING TO TIMING GEAR CASE
644
SCREW PIPE ELBOW TO BRACKET M 10X50
644
STUD BOLT CONVERTER HOUSING TO TIMING CASE M 10X45
648
CONICAL SPRING WASHER PIPE TO CHARGING AIR INTERCOOLER
652
OIL PIPE FROM CONVERTER LOCK-UP COUPLING TO OIL COOLER
652
PIPE , Replaced By: A6252500766
656
PIPE FROM CONVERTER LOCK-UP COUPLING TO OIL COOLER,6 900042
672
PIPE FROM OIL COOLER TO CONVERTER LOCK-UP COUPLING,6 900042
688
OIL PIPE FROM OIL COOLER TO CONVERTER LOCK-UP COUPLING,6 900042
688
PIPE , Replaced By: A6252500566
696
HOSE FEED & RETURN,6 900042
712
UNION NUT LINE CONNECTION, Replaced By: N000000006243
712
NUT LINE CONNECTION
720
SEAL CONE LINE CONNECTION
720
GLAND , Replaced By: A0019901267
744
UNION NUT LINE CONNECTION
750
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
760
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
776
HOLLOW SCREW SUCTION LINE TO OIL PUMP
784
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
792
FLANGE PIPE TO CONVERTER LOCK-UP COUPLING
800
GASKET OIL PIPE TO SLEEVE VALVE,6 900042
800
GASKET , Replaced By: A6252570480
808
SCREW BRACKET TO CROSS CONNECTION STRUT
808
SCREW , Replaced By: N304017008034
816
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
824
BRACKET PIPE TO OIL COOLER,TOP,6 900042
832
BRACKET PIPE TO OIL COOLER,BOTTOM,6 900042
848
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
848
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
848
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
864
CLAMP25-40X13 MM
864
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
872
SCREW PUMP TO BRACKET
872
SCREW PUMP TO BRACKET
872
SCREW , Replaced By: N304017006016
888
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
904
WASHER COMPRESSED AIR LINE TO BRACKET
904
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
912
NUT PUMP TO BRACKET
912
NUT PUMP TO BRACKET
912
NUT , Replaced By: N913004006001
920
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
928
FITTING , Replaced By: A0029905971
928
FITTING (PARTS KIT),LINE RUPTURE
936
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
944
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
952
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
960
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
968
FITTING TRANSMISSION
976
SEAL RING FUEL LINE TO FEED PUMP
999
SPRING WASHER CAB FLOOR
999
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
999
NUT BRACKET TO SUPPORT AND TO END PIECE
