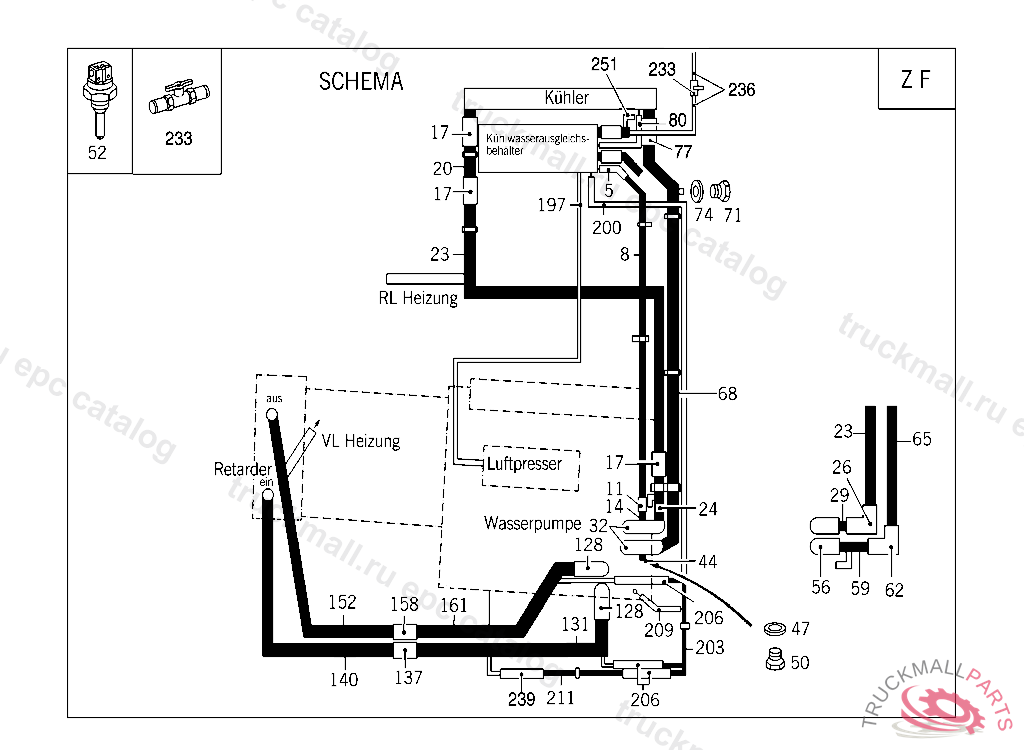

Поз.
Артикул
Описание
5
HOSE FROM WATER PUMP TO EXPANSION TANK 28X37X80,5 022370 ORDER BY THE METER
8
COOLING WATER PIPE FROM EXPANSION TANK TO WATER PUMP
11
HOSE AIR COMPRESSOR CONNECTION 240 MM, ORDER BY THE METER
11
HOSE SILICONE 22 X 31 X160 MM, TO BE ADAPTED DURING ASSEMBLY
14
LINE FROM EXPANSION TANK TO WATER PUMP
14
PIPE LINE FROM EXPANSION TANK TO WATER PUMP 22 X 31 MM
17
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
20
COOLING WATER PIPE FROM RADIATOR TO WATER PUMP
23
COOLING WATER PIPE FROM RADIATOR TO WATER PUMP
23
LINE FROM RADIATOR TO WATER PUMP
24
LINE FROM RADIATOR TO WATER PUMP
26
MOLDED HOSE ,000561
29
COOLING WATER PIPE FROM RADIATOR TO WATER PUMP
32
HOSE FROM RADIATOR TO WATER PUMP
32
HOSE
44
T-FITTING TO BREATHER HOSE
44
LINE FROM ENGINE TO COOLER
47
SEAL RING LINE CONNECTION
50
SCREW PLUG 3/2-WAY VALVE,CONNECTION:,5 363121
52
TEMPERATURE SENSOR COOLING WATER
52
SENDER UNIT
56
HOSE FROM WATER PUMP TO RADIATOR
59
LINE FROM WATER PUMP TO RADIATOR
62
MOLDED HOSE ,000561
65
LINE FROM WATER PUMP TO RADIATOR
68
LINE WITH 2 SENSOR CONNECTIONS
68
LINE WITH 1 SENSOR CONNECTION
71
SCREW PLUGROCKINGER,TYP 59 U150
71
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
74
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
77
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
77
HOSE FROM RADIATOR TO WATER PUMP
80
HOSE RADIATOR DE-AERATION HOSE
80
HOSE RADIATOR DE-AERATION HOSE
128
HOSE COOLING WATER FEED LINE
128
HOSE RETURN, TO BE ADAPTED DURING ASSEMBLY
128
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
128
HOSE 90 DEGREES A85, B85, D50, R55
131
LINE FEED, FROM ENGINE TO RETARDER
137
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
140
COOLING WATER PIPE FEED, FROM ENGINE TO RETARDER
152
LINE RETURN, FROM RETARDER TO ENGINE
158
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
161
LINE RETURN, FROM RETARDER TO ENGINE
197
HOSE EXPANSION TANK 10X4.5X2650 MM
200
HOSE FROM EXPANSION TANK TO COOLING WATER PIPE 15X22X1350 MM
200
HOSE FROM EXPANSION TANK TO COOLING WATER PIPE 15X4.5X1850 MM
203
LINE (DE-AERATION LINE) FROM EXPANSION TANK TO ENGINE
206
HOSE AIR COMPRESSOR CONNECTION 240 MM, ORDER BY THE METER
206
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
209
HOSE , Replaced By: N000000000734
209
HOSE DE-AERATION LINE LEADING TO ENGINE
209
HOSE ENGINE BREATHING 8X15X2550MM, TO BE ADAPTED DURING ASSEMBLY
211
COOLING WATER PIPE HOSE CONNECTION
233
DRAIN COCK
236
HOSE FROM L.P.G. REGULATOR TO THERMOSTAT HOUSING
239
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
251
HOSE BATTERY VENTING 11 X 2 MM, ORDER BY THE METER
999
LINE COOLING WATER DRAIN
