O 530 N3 UESTRA E 2
628.002
50 RADIATOR
516 HYDROSTATIC FAN DRIVE,OM 906 IL. 1

Mercedes A6285000027 - ZB TRAGRAHMEN

O 530 N3 UESTRA E 2 628.002

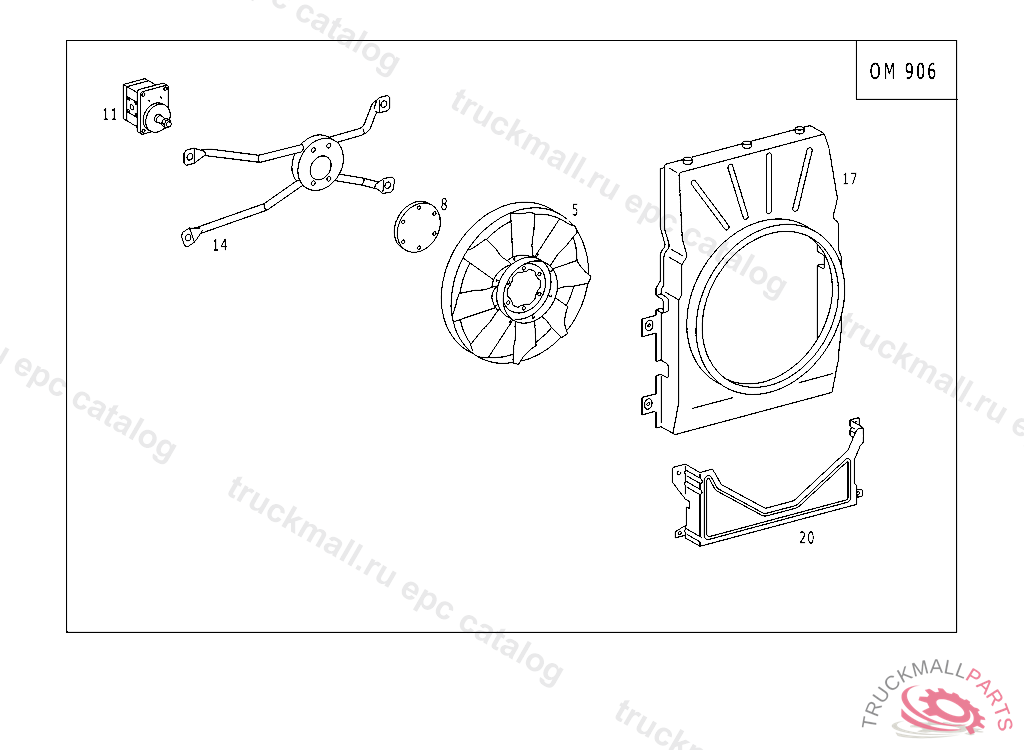

50 RADIATOR - 516 HYDROSTATIC FAN DRIVE,OM 906 IL. 1

Поз.
Артикул
Описание
5
A0032050106
FAN
8
A6285060414
HUB CHARGING AIR INTERCOOLER
8
A6285060314
HUB RADIATOR
8
A6285060014
HUB FAN HUB
11
A0005000922
FAN DRIVE
11
A6285000622
FAN DRIVE RADIATOR
11
A6285000522
FAN DRIVE CHARGING AIR INTERCOOLER
14
A6285001127
SUPPORT RADIATOR
14
A6285001027
SUPPORT CHARGING AIR INTERCOOLER
14
A6285000027
SUPPORT FAN DRIVE
17
A6285000055
FAN SHROUD FAN DRIVE
17
A6285000455
FAN SHROUD CHARGING AIR INTERCOOLER
17
A6285000555
FAN SHROUD RADIATOR
20
A6285000431
BRACKET FAN DRIVE
20
A6285003631
BRACKET FAN DRIVE
999
A0009953405
CLAMP LINE TO OIL TANK 48-51 MM
999
A0009976287
VALVE (RETURN LINE) III,092396
999
A0009978373
FITTING LINE CONNECTION I+II,092396
999
A0009978473
FITTING RETURN LINE/BY-PASS,092396
999
A0009978573
FITTING RETURN LINE/BY-PASS,092396
999
A6285532157
LINE RETURN BY-PASS III,092396
999
A6285532257
LINE FROM OIL COOLER TO OIL FILTER IV
999
A6285532957
LINE CHARGE AIR INTERCOOLER & RADIATOR, FRONT
999
A6285533057
LINE HYDRAULIC HOSE 40X48X380MM
999
A6285533157
LINE CHARGING AIR INTERCOOLER
999
A6285533257
LINE CHARGING AIR INTERCOOLER
999
A6285533357
LINE CHARGING AIR INTERCOOLER
999
A6285533457
LINE CHARGING AIR INTERCOOLER
999
A6285533557
LINE CHARGING AIR INTERCOOLER
999
A6285533657
LINE RADIATOR
999
A6285533757
LINE RADIATOR
999
A6285533857
LINE RADIATOR
999
A6285533957
LINE FROM HOSE CONNECTION TO OIL COOLER
999
A6285534057
LINE FROM OIL COOLER TO OIL TANK
999
A6285534157
LINE FROM OIL COOLER TO OIL TANK
999
N304017006026
SCREW , Replaced By: N304017006026
999
N304017006027
SCREW APPARATUS PLATE M 6X45
999
N910105010006
SCREWM 10X20
999
N910112010002
HEXAGON NUT STARTING MOTOR TERMINAL 31
