Mercedes
›
BUS
›
O 530 - CITARO EURO 3 RECHTSLENKER
›
628.040
›

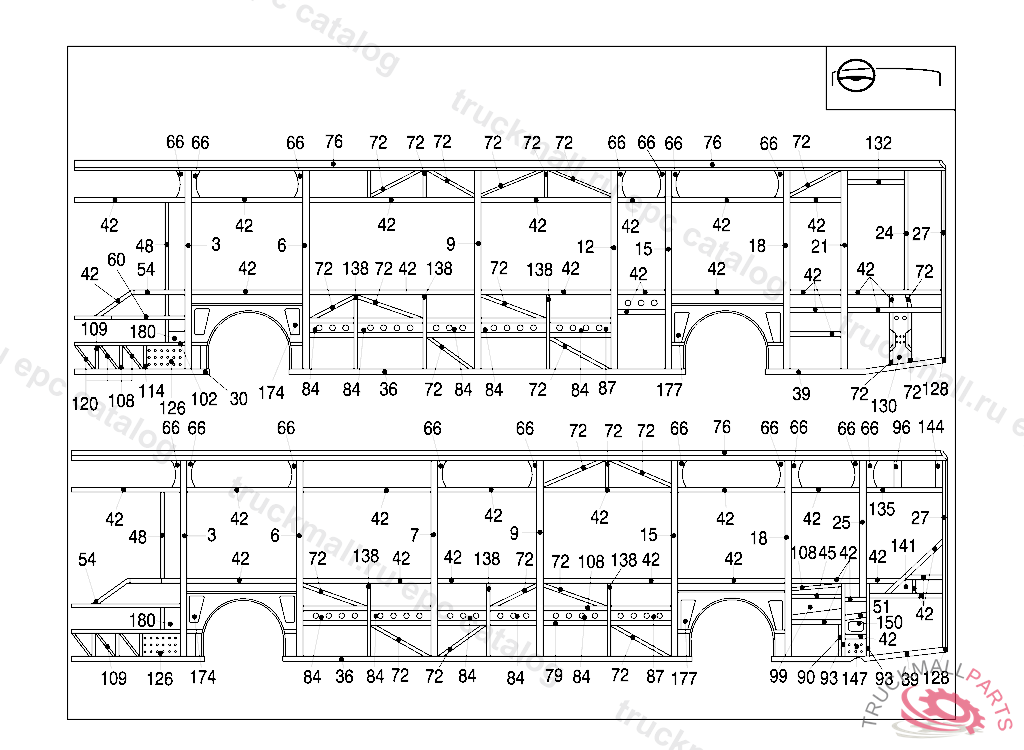

63 SIDE PANELS
›
150 LEFT FRAMEWORK IL. 1
Mercedes A6286310020 - RAHMENTEIL (LI H
O 530 - CITARO EURO 3 RECHTSLENKER 628.040
63 SIDE PANELS - 150 LEFT FRAMEWORK IL. 1
Поз.
Артикул
Описание
6
A6286301110
PILLARNO. 2
9
A6286310910
PILLAR PART
12
A6286301210
PILLARNO. 2
15
A6286301310
PILLAR
18
A6286301410
PILLARNO. 4
25
A6286316110
PILLAR PART
27
A6286310610
PILLAR PART REAR END
36
A6286300840
SUPPORT BOTTOM
39
A6286325640
SUPPORT60X50X2X270, TO BE ADAPTED DURING ASSEMBLY
42
A6286326440
BEAM. SUPPORT , TO BE ADAPTED DURING ASSEMBLY
45
A6286321940
SUPPORT
66
A6286340117
72
A6286122473
RECTANGULAR TUBE. CROSS MEMBER , TO BE ADAPTED DURING ASSEMBLY
76
A6286301725
84
A6286327540
PART NAME MISSING. SUPPORT , TO BE ADAPTED DURING ASSEMBLY
90
A6286314810
93
A6286312110
PILLAR PART
96
A6286310020
FRAME
99
A6286320019
WEB
128
A6286340111
PLATE
135
A6286326014
SUPPORT
138
A6286310110
PILLAR PART
141
A6286322519
WEB
144
A6286340409
COVERING
147
A6286340711
PLATE
150
A6286341516
REINFORCEMENT
180
A6286342211
PLATE
