Mercedes A6286800817 - ZB DECKEL FU

O 530 - CITARO EURO 3 RECHTSLENKER 628.040

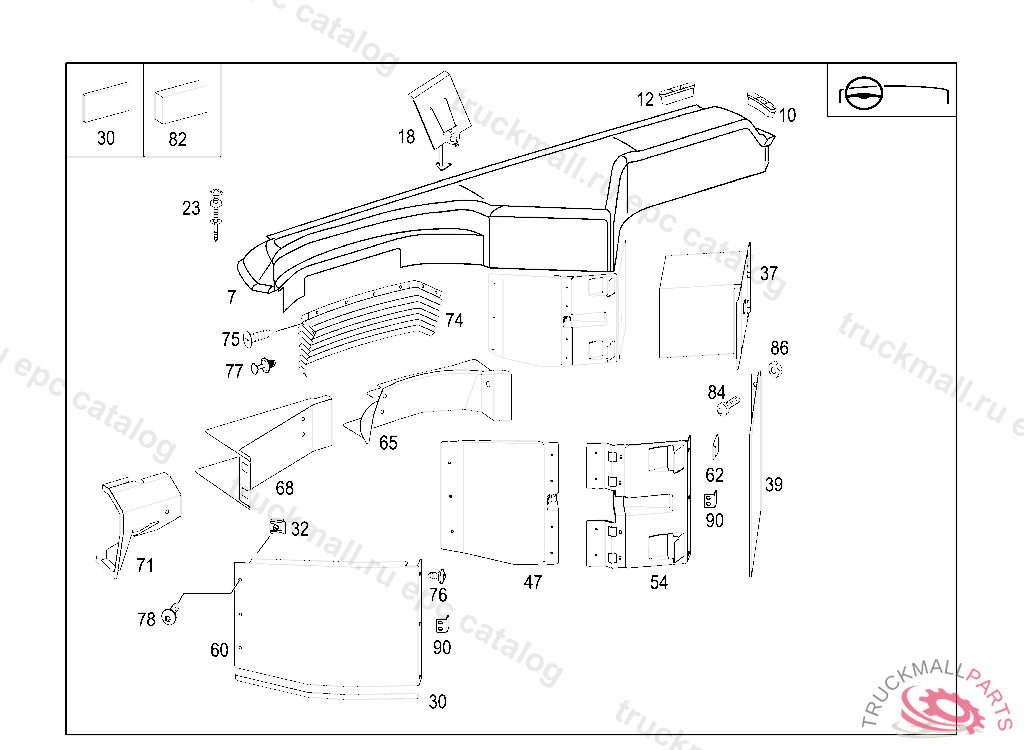

68 COVERING AND LINING - 330 INSTRUMENT PANEL IL. 2
  • Поз.
    Артикул
    Описание
  • 10
    DEFROSTER NOZZLE WITH SLANTING DISKS
  • 12
    AIR DUCT WITH STRAIGHT DISKS
  • 23
    RIVET WATER BAFFLE TO CROSS MEMBER,A 166303
  • 39
    COVERING PIGEONHOLE, NO.7C01I....... I I II I
  • 47
    PANELLING BELOW WINDOW SILL,CENTER, NO.7C01I....... I I II I
  • 54
    PANELLING BELOW WINDOW SILL,CENTER, NO.7C01I....... I I II I
  • 71
    COVERING ,....... I NR.7E86 I ....... I ....... I ....... II
  • 74
    PANELLING BELLOWS
  • 75
    SHEET METAL SCREW ,F 122555
  • 77
    RIVET RESERVOIR TO FIRE WALL
