Mercedes A0014604348 - Наконечник рулевой тяги

O 530 - CITARO EURO 3 RECHTSLENKER 628.040

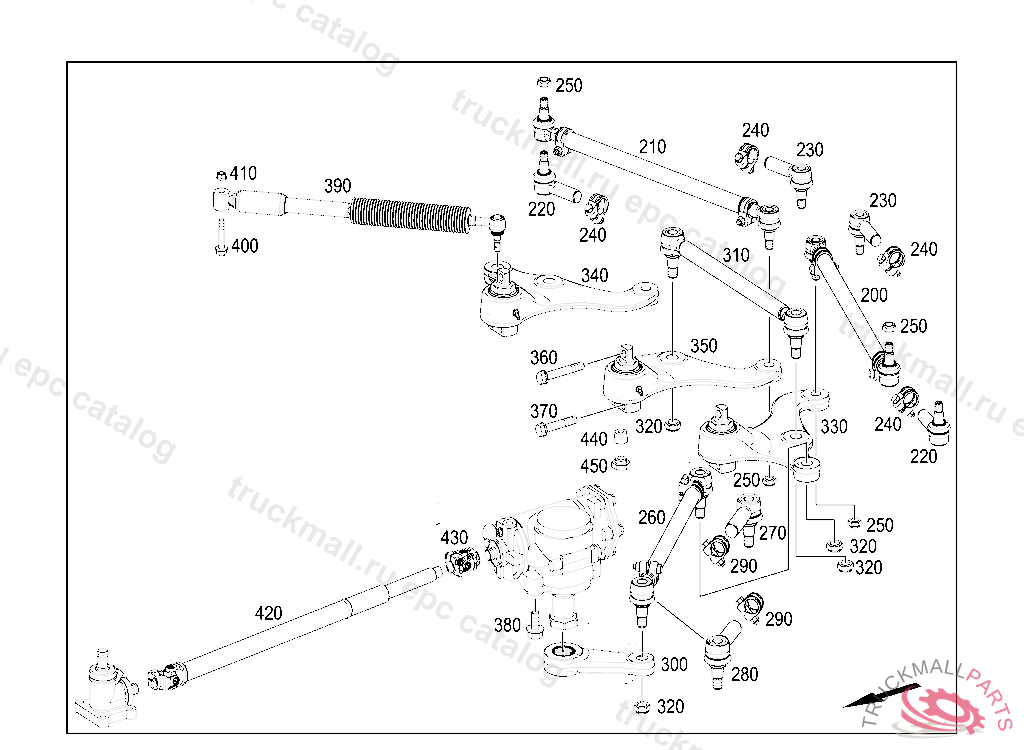

46 STEERING - 390 STEERING ARM AND DRAG LINK IL. 1

Поз.
Артикул
Описание
220
A0014604348
DRAG LINK END L.H. THREAD
230
A0014604448
DRAG LINK END R.H. THREAD
240
A0019953644
CLAMP
250
A9709900051
NUT STEERING WHEEL TO STEERING COLUMN
270
A0014603648
DRAG LINK END L.H. THREAD TO A 662 463 12 15
280
A0004608948
DRAG LINK END R.H. THREAD
290
A0019953644
CLAMP
300
A6284630701
PITMAN ARM
310
A6284601705
DRAG LINK CENTRAL
320
A0019905451
NUT DRAG LINK END M 24X1.5
330
A6284600619
INTERMEDIATE LEVER LEFT
340
A6284601219
INTERMEDIATE LEVER RIGHT
350
A6284600819
INTERMEDIATE LEVER RIGHT
390
A6284600066
SHOCK ABSORBER
400
N910105014009
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
400
N000000005717
HEXAGON HEAD BOLT STEERING SHOCK ABSORBER TO BRACKET, Replaced By: N910105014009
410
N000000005662
NUT SUPPORT TO FRAME
410
N913023014003
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
440
A6284630050
BUSH WITH INNER CHAMFER
450
A6284630063
CLAMPING RING
999
A0003380250
BUSHING
999
A0003385245
CLAMP
