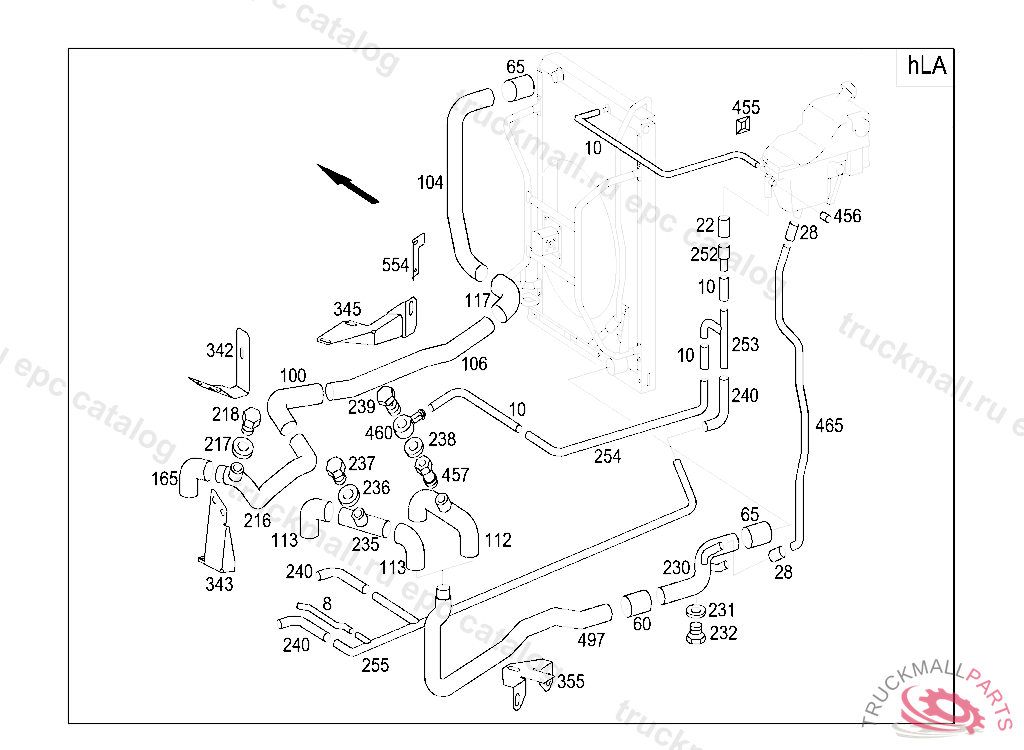

Поз.
Артикул
Описание
8
HOSE , Replaced By: N000000000734
8
HOSE ENGINE BREATHING 8X15X2550MM, TO BE ADAPTED DURING ASSEMBLY
8
HOSE BLUE 8 X 14 X 350 MM, TO BE ADAPTED DURING ASSEMBLY
10
HOSE BLUE 10 X 19 X 480 MM, TO BE ADAPTED DURING ASSEMBLY
10
HOSE10 X 19 X 85 MM, TO BE ADAPTED DURING ASSEMBLY
10
HOSE10 X 19 X 750 MM, TO BE ADAPTED DURING ASSEMBLY
10
HOSE DE-AERATION LINE TO ENGINE DE-AERATOR 10 X 19 X 1345 MM
10
HOSE BLUE 10 X 19 X 750 MM, TO BE ADAPTED DURING ASSEMBLY
10
HOSE BLUE 10 X 19 X 240 MM, TO BE ADAPTED DURING ASSEMBLY
10
HOSE BLUE 10 X 19 X 80 MM, TO BE ADAPTED DURING ASSEMBLY
10
HOSE COOLING WATER LINE 10X19X240
22
HOSE SILICONE 22 X 31 X 100 MM, TO BE ADAPTED DURING ASSEMBLY
22
HOSE SILICONE 22 X 31 X160 MM, TO BE ADAPTED DURING ASSEMBLY
22
HOSE
22
HOSE BLUE 22 X 29 X 460 MM, TO BE ADAPTED DURING ASSEMBLY
22
HOSE AIR COMPRESSOR CONNECTION 240 MM, ORDER BY THE METER
28
HOSE FROM WATER PUMP TO EXPANSION TANK 28X37X80,5 022370 ORDER BY THE METER
28
HOSEA28, B37, L100
28
HOSE LINE CONNECTIONS
28
HOSE BLUE 28 X 37 X 80 MM, TO BE ADAPTED DURING ASSEMBLY
60
HOSE60 X 72 X 100 MM, TO BE ADAPTED DURING ASSEMBLY
60
HOSE REST TOW-ROD, ORDER BY THE METER
60
HOSE BLUE 60 X 72 X 100 MM, TO BE ADAPTED DURING ASSEMBLY
60
HOSE COOLING WATER LINE TO COOLING WATER LINE
100
MOLDED HOSE 90-DEGREE ARC 60MM
100
HOSE BLUE
100
HOSE 90 DEGREES A230, B150, D50, R110
100
MOLDED HOSE ,000561
106
COOLING WATER PIPE
112
HOSE
113
HOSE FROM ENGINE TO COOLER
113
HOSE FROM RADIATOR TO WATER PUMP
165
MOLDED HOSE 90 DEGREES 50MM
165
HOSE RETURN, TO BE ADAPTED DURING ASSEMBLY
165
MOLDED HOSE ENGINE CONNECTION
165
HOSE COOLING WATER FEED LINE
165
HOSE 90 DEGREES A85, B85, D50, R55
216
COOLING WATER PIPE
217
SEALING RING. SEAL RING ENGINE BREATHING
218
SCREW PLUG WATER DRAIN
235
LINE FROM ENGINE TO COOLER
235
LINE FROM ENGINE TO COOLER
236
SEALING RING. SEAL RING ENGINE BREATHING
236
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
237
SCREW PLUG 3/2-WAY VALVE,CONNECTION:,5 363121
237
SCREW PLUG WATER DRAIN
238
SEAL RINGTO 000 553 03 05,000 553 18 05,
239
HOLLOW SCREW
240
HOSE HEATING PIPE
240
HOSE 90 DEGREES A107, B62, D15, R32
240
HOSE RADIATOR/ENGINE/EXPANSION-TANK DE-AERATION LINES,213729
252
COOLING WATER PIPE FROM BREATHER LINE TO EXPANSION TANK
252
LINE FROM BREATHER LINE TO EXPANSION TANK
255
VENT LINE
255
LINE FROM BREATHER LINE TO EXPANSION TANK
342
BRACKET
343
BRACKET
345
BRACKET
355
BRACKET LINE TO CROSS MEMBER
456
CAP EXPANSION TANK
457
VENTILATION NECK
460
BANJO UNION. INTERMEDIATE PIECE FUEL HOSE TO FUEL LINE
999
BRACKET
