CITARO BRENNSTOFFZELLEN-HYBRID
628.073
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS

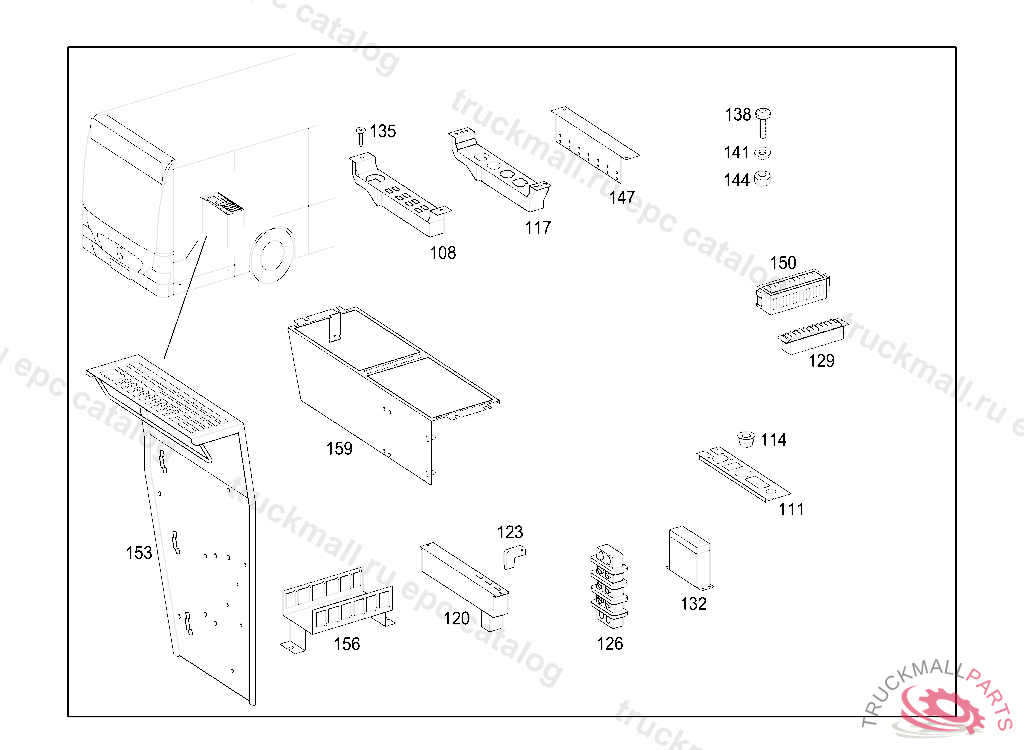

122 ELECTRICAL COMPARTMENT, SECONDARY SWITCHBOARD, TRANSVERSE ROOF CHANNEL IL. 1

Mercedes A6288210414 - HALTER FUER STECKER

CITARO BRENNSTOFFZELLEN-HYBRID 628.073

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 122 ELECTRICAL COMPARTMENT, SECONDARY SWITCHBOARD, TRANSVERSE ROOF CHANNEL IL. 1

Поз.
Артикул
Описание
108
A9415422540
BRACKET DIODES
111
A6285457940
BRACKET PLUG SOCKET
114
A1139870044
EXPANSION PLUG ELECTRIC CABLE THRU FIRE WALL,4 9400475 187082
117
A6555420687
FRAME , Replaced By: A6555421187
120
A0015433515
DATA MODULE INSTRUMENT LIGHTING, PRODUCTION BREAKPOINT AS OF 01.02.2008
123
A6555450086
CLAMP MODULE LEAD-SEALING
126
A0005455560
JUNCTION BOX PLUG SOCKET
129
A0005455360
JUNCTION BOX FUSE
132
A0015465741
CLAMPING RAIL. CABLE CONNECTOR AT UPPER COOLING WATER LINE, FROM IDENT NO. 040926 ALSO INSTALLED ON 038379,038620.
135
A0019903910
138
N000000002591
HEXALOBULAR BOLT. SCREW LICENSE PLATE LAMP M4 X 25
141
N000000003748
WASHER DIA., 3,2MM
144
N304032008006
NUT
147
A3575420149
ANGLE FUSE STRIP
150
A0005455460
JUNCTION BOX (TOP),CONNECTION BOX
153
A6285400123
MOUNTING FRAME ELECTRICAL COMPARTMENT
156
A6288210414
BRACKET BRACKET TO ELECTRICAL COMPARTMENT INTERIOR PLATE
159
A6285400023
MOUNTING FRAME ELECTRICAL COMPARTMENT
