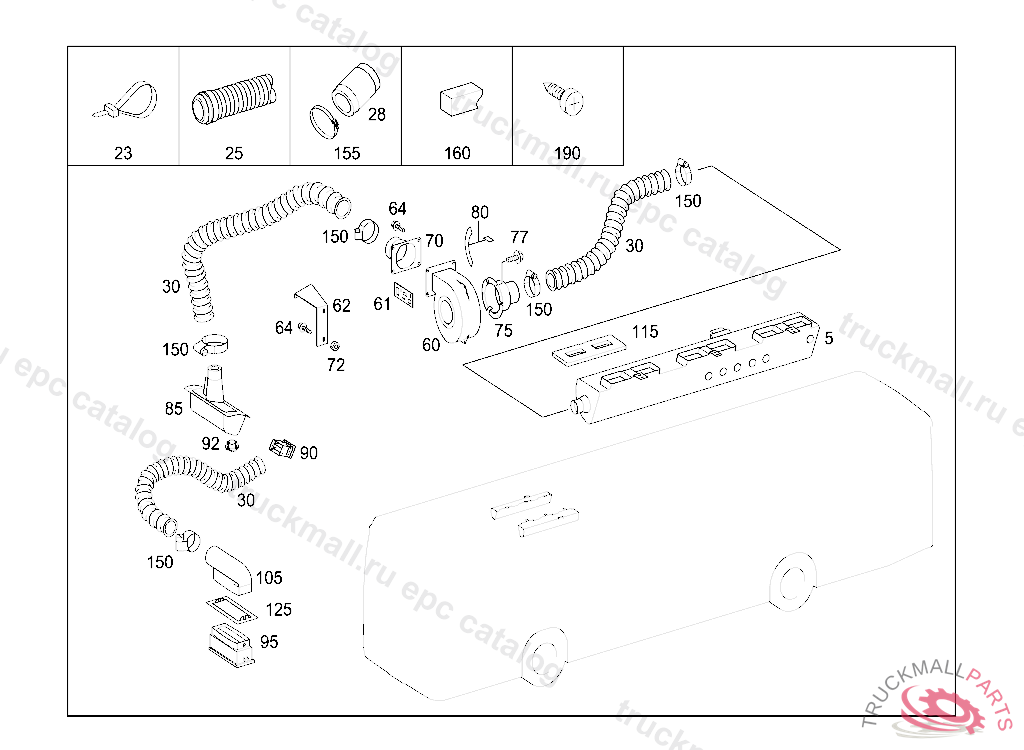

Поз.
Артикул
Описание
5
DUCT ABOVE FRONT AXLE,LEFT
5
23
LOOM TIE LINE MOUNTING
25
HOSE604MM/48MM, TO BE ADAPTED DURING ASSEMBLY
25
HOSE716MM/48MM, TO BE ADAPTED DURING ASSEMBLY
28
HOSE290MM/200MM, TO BE ADAPTED DURING ASSEMBLY
30
HOSE COWL VENTILATION,TOP 75MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
60
BLOWER
61
PRINTED CIRCUIT PLATE
62
BRACKET
64
SCREW , Replaced By: N910143008000
70
PIPE SOCKET BLOWER MOTOR
72
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
72
NUT HORN TO BRACKET M8
75
FITTING BLOWER MOTOR, TO BE ADAPTED DURING ASSEMBLY
77
SCREW ROLLER BLIND TO BODY
80
PLASTIC SECTION VOLTAGE TRANSFORMER 290 MM, ORDER BY THE METER
85
DISTRIBUTOR DRIVER'S PLACE
90
NOZZLE DRIVER'S PLACE
92
SCREW
95
NOZZLE
105
CONNECTING PIPE TRANSVERSE DUCT RIGHT
115
FRAME SEAL
115
FRAME SEAL
125
COVERING TRANSVERSE DUCT RIGHT
150
CLAMP HOSE TO RETARDER 60-80X13 MM
150
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
155
CLAMP180-200X12MM
160
SEALING STRIP5880MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
190
SHEET METAL SCREW WIRE CABLE TO CAB
