Главная
›
Mercedes
›
BUS
›
O 530 - CITARO BZ 12M BRENNSTOFFZ. 3-TUERER
›
628.075
›
89 VEHICLE ACCESSORIES
›
580 TRAILER COUPLING/COUPLING JAW
Mercedes A9019900130 - Болт

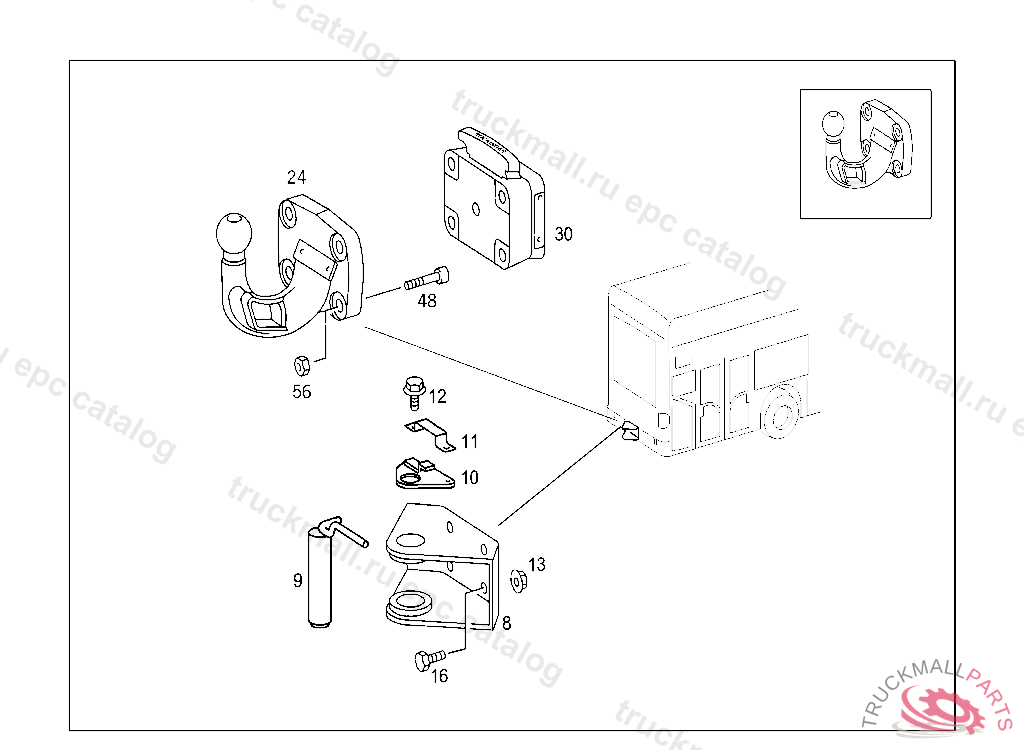

O 530 - CITARO BZ 12M BRENNSTOFFZ. 3-TUERER 628.075
89 VEHICLE ACCESSORIES - 580 TRAILER COUPLING/COUPLING JAW
Поз.
Артикул
Описание
8
A6288900006
COUPLING MOUTH REAR
9
A9413100007
COUPLING PIN FOR COUPLING MOUTH
10
A9413150059
CLAMPING PIECE COUPLING PIN
11
A9413150039
CLAMP COUPLING PIN
12
N910105006004
SCREW , Replaced By: N914146006102
13
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
16
N910105010007
SCREW BRACKET TO SIDE MEMBER M10X35
16
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
24
A0033152399
TRAILER COUPLING REAR
30
A3560050489
ADAOTER VARIO BLOCK
48
N000912010212
SCREW ROLLER ON SUPPORT
56
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
56
N913001010006
NUT COLD START SYSTEM TO BRACKET
999
N007991010017
SCREWM 10X50, Replaced By: A9019900130
999
A9019900130
SCREWM 10X50
