Mercedes A4615010182 - Шланг

230 GE 461.267

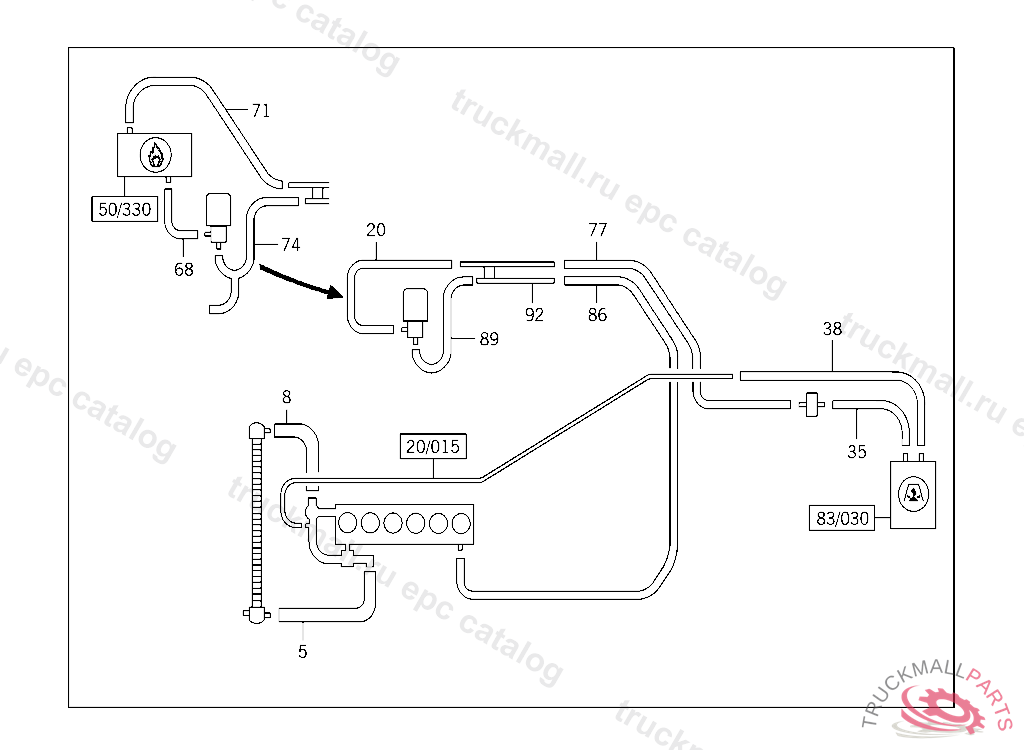

50 RADIATOR - 165 EXPANSION TANK,MOUNTING AND HOSES IL. 1

Поз.
Артикул
Описание
5
A4615010182
HOSE LEFT TOP
5
A4615000175
HOSE LEFT TOP
8
A4605012882
HOSE TOP
20
A4608322594
HOSE AT ENGINE
35
A4608321823
HOSE HEAT EXCHANGER
38
A4608325194
HOSE ,015182
68
A4635013582
HOSE BETWEEN RECIRCULATING PUMP AND HEATER UNIT, ONLY USED WITH AUXILIARY HEATER
71
A4618320123
HOSE RETURN, FROM VALVE TO HEATER
74
A4608324223
HOSE FROM CHECK VALVE TO RECIRCULATING PUMP
77
A4615010282
HOSE HEATING VALVE, ONLY USED WITH AUXILIARY HEATER
86
A4615010382
HOSE SHOCK ABSORBER CONSOLE, ONLY USED WITH AUXILIARY HEATER
89
A4608323494
HOSE FROM FEED PIPE TO RECIRCULATING PUMP
92
A4615000572
LINE PIPE LINE TO SHOCK ABSORBER CONSOLE
