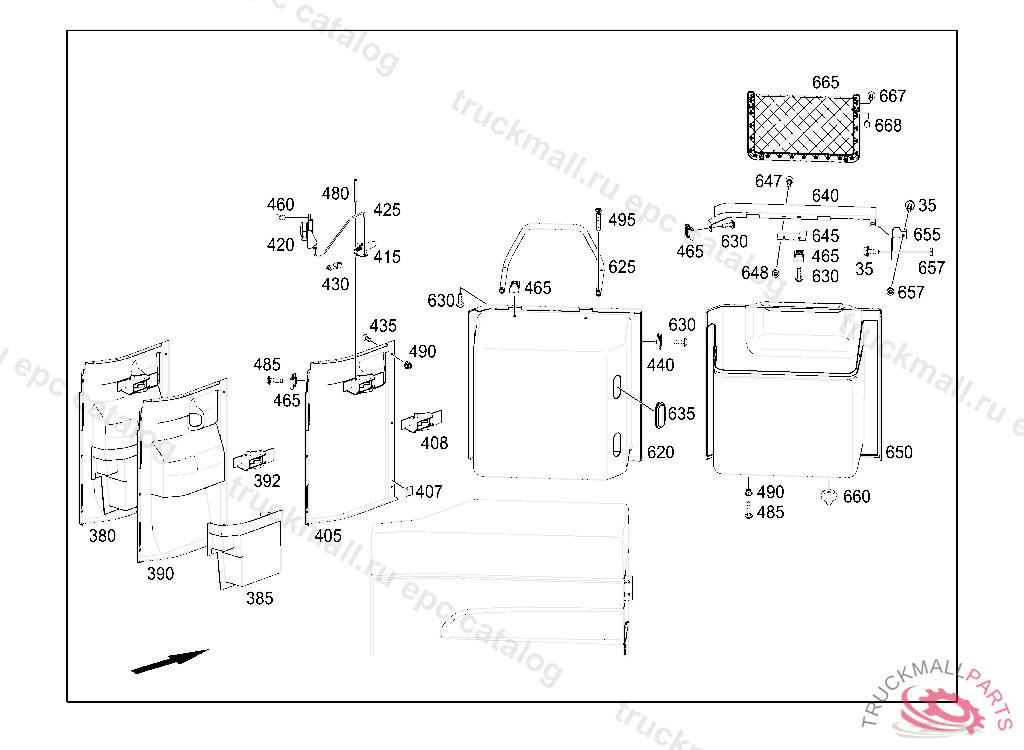

Поз.
Артикул
Описание
35
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
35
HEXAGON HEAD BOLT
35
SCREW , Replaced By: N914146006102
380
PANELLING LOCKABLE PIGEONHOLE, NO.7C01I.......I.......I.......
385
PANELLING
390
PANELLING
392
BRACKET DOOR POCKET, NO.7365I.......I.......I.......
405
PANELLING INTERIOR DOOR INSIDE, NO.7C52I.......I.......I.......
407
RUBBER BUFFER FLAP TO LEVER, NO.8316INO.7C52INO.9051I I II I
408
BRACKET DOOR POCKET, NO.7365I.......I.......I.......
415
HANDLE INTERIOR DOOR INSIDE
420
LOCK , .......INO.8316INO.9051I.......
425
GUIDE
430
LOCK PULL ROD TO DOOR LOCK
435
SCREWM5X12 TX25
440
SOCKET NUT
460
SCREWM6X12 TX30
465
NUT RETAINER INSTRUMENT PANEL TO CAB
480
ROLL PINM4X32
485
HEXALOBULAR BOLT BRACKET TO BRACKET M5X20
490
NUT RELAY TO BRACKET M5
495
SCREWM6X30 T30
620
POCKET INTERIOR DOOR INSIDE, NO.7C01I.......I.......I.......
625
BRACKET DOOR POCKET, NO.7365I.......I.......I.......
630
HEXALOBULAR BOLT. SCREW STEP TO ENTRANCE
635
COVERING
640
ANGLE
645
BRACKET
647
SCREW ROLLER BLIND M3X10
648
NUT BRACKET MOUNTING
650
FLAP
655
BAND
657
NUT BATTERY CABLE MOUNTING,5 193595
660
RUBBER BUFFER
665
LUGGAGE NET
667
HEXALOBULAR BOLTM5X12
668
NUT AT FRAME
