Mercedes A0034319506 - Главный тормозной кран

O530 - CITARO 15M, 3-TUERER 628.185

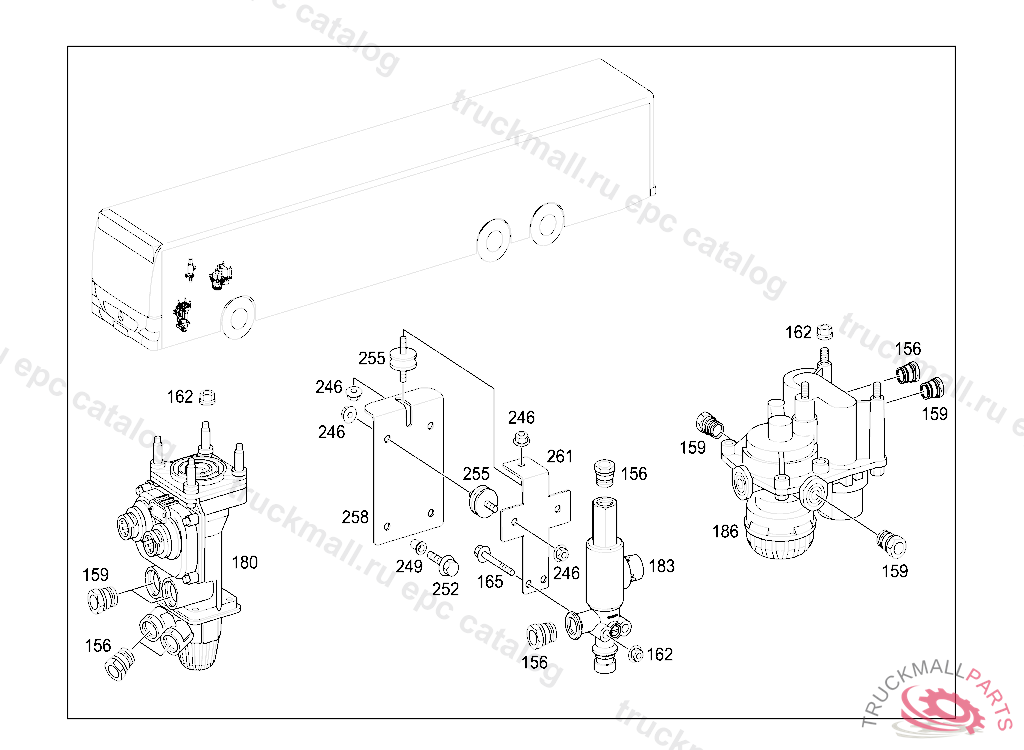

42 BRAKES - 380 SERVICE BRAKE VALVE,RELAY VALVE, TWO-WAY VALVE IL. 3

Поз.
Артикул
Описание
156
A0009974734
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
159
A0009974834
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
159
A0009978134
RETAINING SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M22, VOSS 232
162
N913023008003
NUT HORN TO BRACKET M8
165
N910143008017
SCREW 3/2-WAY VALVE TO BRACKET
165
N910105008045
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
180
A0034319506
BRAKE VALVE
183
A0059976736
VALVE (3/2-WAY SOLENOID VALVE)
186
A0054296944
PROPORTIONING VALVE PROPORTIONING VALVE TO VOSS 232, FOR THIS PART NUMBER ONLY THE VOSS 232 AND SCHAEFER SDF CONNECTION SYSTEM MUST BE INSTALLED
246
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
249
N913024008100
RIVET NUT. RIVETED NUT FEED LINE TO TRANSMISSION
252
N910105008039
SCREW , Replaced By: N910143008002
252
N910143008002
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
255
A3225040212
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
258
A6284312746
BRACKET
261
A6324310840
BRACKET
