Главная
›
Mercedes
›
BUS
›
O530 - CITARO 15M, 2-TUERER
›
628.187
›
83 HEATING AND VENTILATION
›

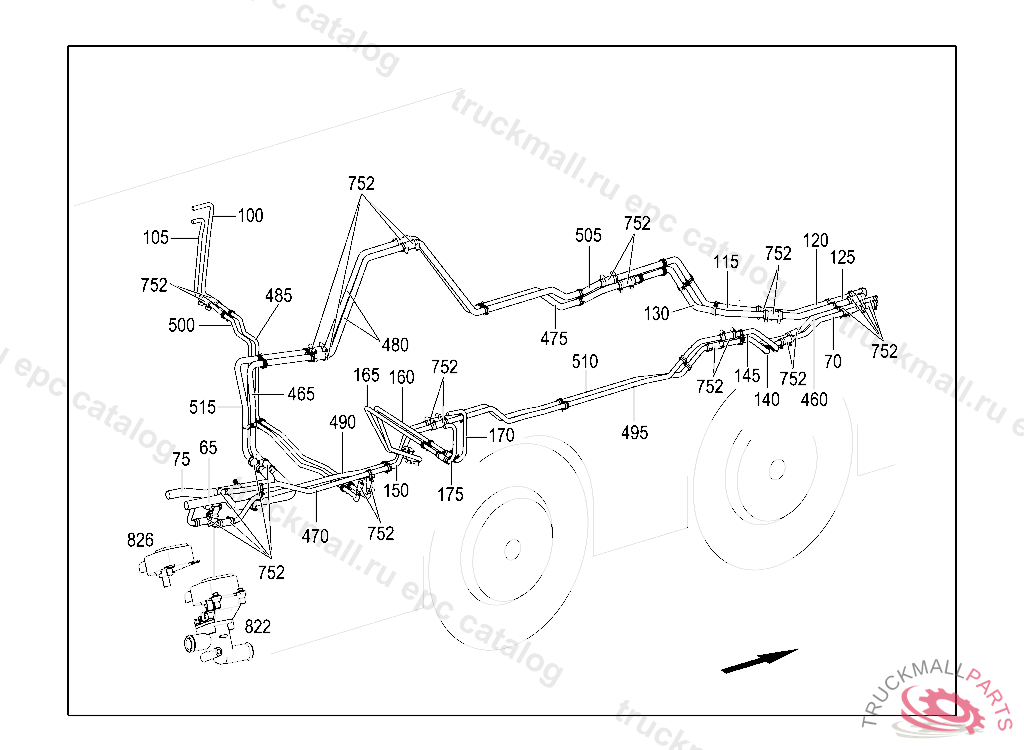

420 HEATING WATER LINE IL. 7
Mercedes A3118303015 - ZB HEIZROHR
O530 - CITARO 15M, 2-TUERER 628.187
83 HEATING AND VENTILATION - 420 HEATING WATER LINE IL. 7
Поз.
Артикул
Описание
65
A3118307516
PIPE LINE
70
A6288300515
PIPE LINE
75
A3118301477
PIPE LINE
100
A6288326029
PIPE LINE
105
A6288326129
PIPE LINE
115
A6288328121
PIPE LINE
120
A6288328221
PIPE LINE
125
A6288328321
PIPE LINE
130
A6288328421
PIPE LINE
140
A6288328721
PIPE LINE
145
A6288328921
PIPE LINE
150
A3118309477
PIPE LINE
160
A3118321319
PIPE LINE
160
A6288329522
PIPE LINE1120 MM
165
A6288329422
PIPE LINE
170
A3118323421
PIPE LINE
170
A6288329166
PIPE LINE
175
A6288329266
PIPE LINE
175
A3118323521
PIPE LINE
460
A3118300963
PIPE LINE
465
A6288329821
PIPE LINE
470
A3118309377
PIPE LINE
475
A3118321819
PIPE LINE RETURN
480
A6288329921
PIPE LINE FEED & RETURN
485
A6288320765
PIPE LINE
490
A3118303015
PIPE LINE
490
A6288302977
PIPE LINE
495
A6288320522
PIPE LINE
500
A6288320865
PIPE LINE
505
A3118321719
PIPE LINE FEED
510
A6288320422
PIPE LINE
515
A6288320222
PIPE LINE
752
N000000004977
HOSE22X31X160MM
752
N000000004976
HOSE22X31X100MM
752
N000000004982
HOSE28X37X100 MM, Replaced By: N000000004989
752
N000000004968
HOSE18X27X100MM
752
N000000004992
HOSE ,D 209702
752
N900271022000
HOSE
752
N900271022037
HOSE22X31X160MM, Replaced By: N000000004977
752
N900271028000
HOSE
752
N900271038019
HOSE LINE CONNECTION 38X50X100 MM
822
A0048301684
VALVE THREE-WAY VALVE
822
A0048301884
VALVE 2/2 -WAY VALVE
826
A0068207842
SERVO-D.C. W.GEARBOX
826
A0068201142
ELECTRIC MOTOR , Replaced By: A0068207842
999
A6288320413
BRACKET
