Главная
›
Mercedes
›
BUS
›
O530 - CITARO 15M, 2-TUERER
›
628.187
›
63 SIDE PANELS
›

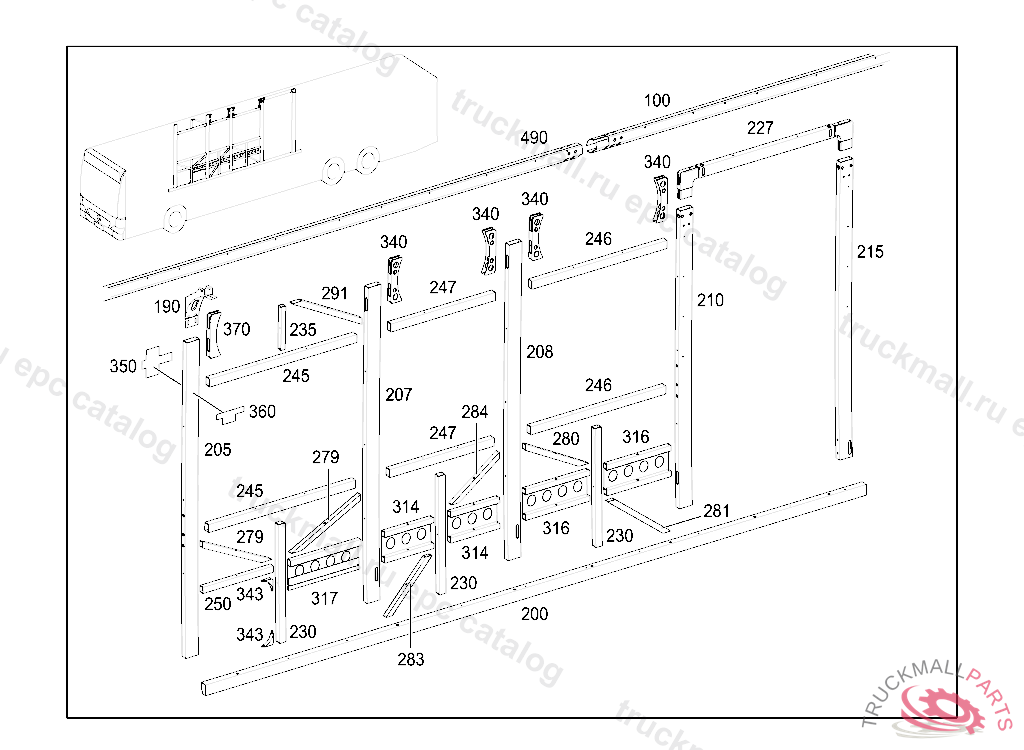

220 RIGHT SKELETON,2 DOORS IL. 2
Mercedes A6286317910 - Saeule
O530 - CITARO 15M, 2-TUERER 628.187
63 SIDE PANELS - 220 RIGHT SKELETON,2 DOORS IL. 2
Поз.
Артикул
Описание
100
A6286304540
SUPPORT TOP
190
A6286020232
REINFORCEMENT
200
A6286305540
SUPPORT BOTTOM
205
A6286305210
PILLAR , Replaced By: A6286300013
207
A6286317910
PILLAR PART
208
A6286310910
PILLAR PART
210
A6286300210
PILLARNO. 2 + 3
215
A6286300310
PILLAR
227
A6286300017
FRAME DOOR,TOP
230
A6286310110
PILLAR PART
235
A6286330205
STRUT
245
A6286320540
SUPPORT
246
A6286320014
SUPPORT60 X 60 X 2 X 1325, TO BE ADAPTED DURING ASSEMBLY
247
A6286320640
SUPPORT
250
A6286320705
SIDEWALL BRACING
279
A6286330305
STRUT
280
A6286332205
STRUT40 X 40 X 2 X 683,5, TO BE ADAPTED DURING ASSEMBLY
281
A6286332305
STRUT40 X 40 X 2 X 706, TO BE ADAPTED DURING ASSEMBLY
283
A6286330605
STRUT
284
A6286330405
STRUT
291
A6286330105
STRUT
314
A6286323140
SUPPORT
316
A6286320114
SUPPORT
317
A6286300009
SIDE PANEL GIRDER
340
A6286341316
REINFORCEMENT TOP
343
A3576310032
CONNECTION
350
A6286342211
PLATE
360
A6286342311
PLATE
370
A6286342416
REINFORCEMENT
490
A6286306725
SUPPORT , Replaced By: A6286304639
490
A6286304639
ROOF RACK
