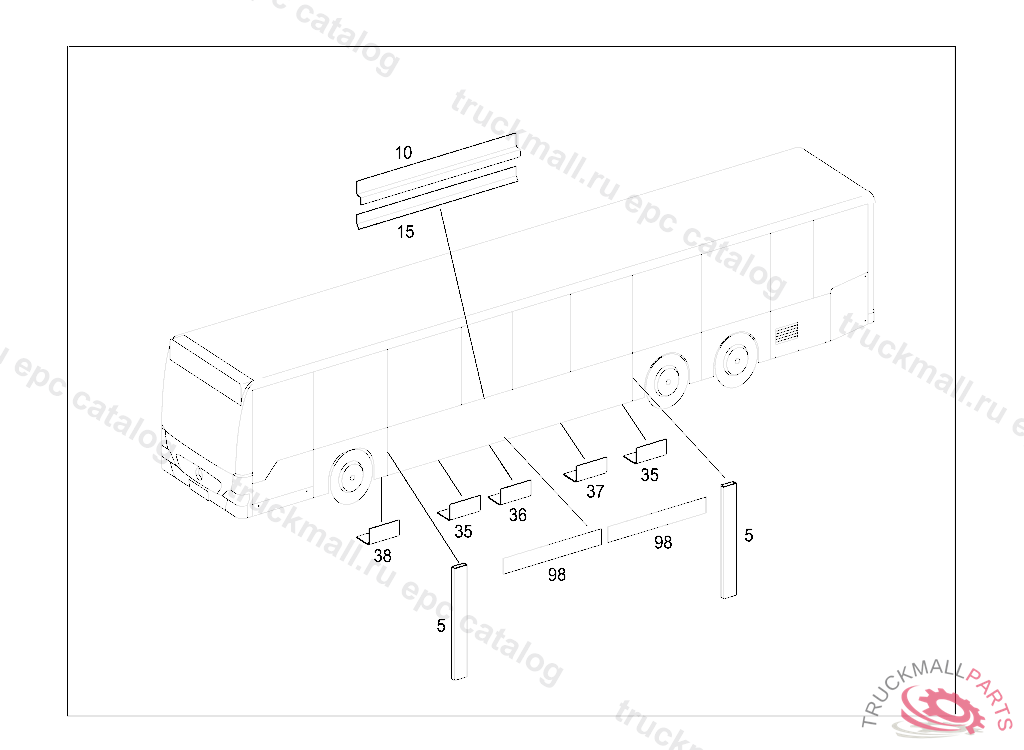

Mercedes A6286377812 - BEFESTG.WINKEL RE

O530 - CITARO 15M, 2-TUERER 628.187
63 SIDE PANELS - 500 SUPPORT AND CONNECTORS FOR FRAME,LEFT AND RIGHT IL. 1
  • Поз.
    Артикул
    Описание
  • 5
    BRACKET
  • 10
    BRACKET PANELLING 4098 MM, TO BE ADAPTED DURING ASSEMBLY
  • 15
    BRACKET PANELLING 2800 MM, TO BE ADAPTED DURING ASSEMBLY
  • 35
    ATTACHMENT ANGLE BRACKET700MM
  • 35
    ATTACHMENT ANGLE BRACKET IN FRONT OF FRONT AXLE,RIGHT
  • 35
    ATTACHMENT ANGLE BRACKET BEHIND FRONT AXLE,RIGHT
  • 35
    ANGLE BEHIND FRONT AXLE,RIGHT
  • 36
    ATTACHMENT ANGLE BRACKET500X25X20MM
  • 37
    ATTACHMENT ANGLE BRACKET
  • 38
    ATTACHMENT ANGLE BRACKET BEHIND FRONT AXLE,LEFT 242MM
  • 98
    CONNECTION LEFT 2950X30X1MM, TO BE ADAPTED DURING ASSEMBLY
