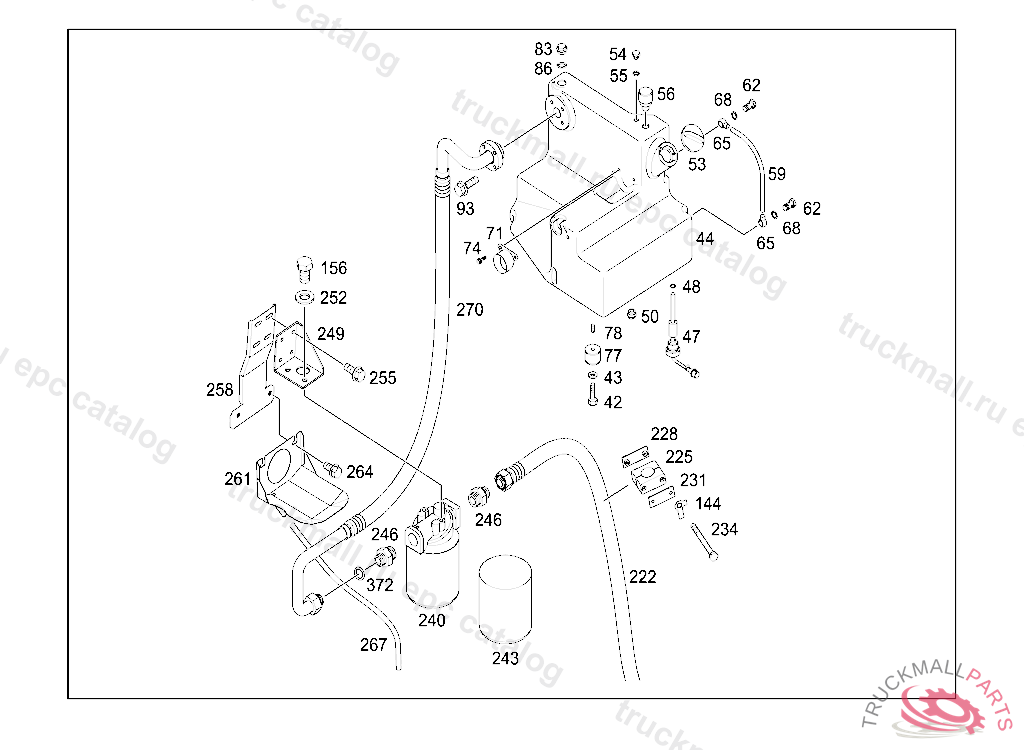

Поз.
Артикул
Описание
42
SCREW PIPE ELBOW TO BRACKET M8X12
42
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
43
WASHER PUMP TO CONSOLE
44
OIL TANK
47
SENDER UNIT , Replaced By: A6285400017
47
SENDER UNIT OIL TANK
48
SEAL RING25 X 2 MM
50
SCREW PLUG
53
CAP OIL REFILLING
54
SCREW PLUG 3/2-WAY VALVE,CONNECTION:,5 363121
55
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
56
FILTER OIL TANK
59
PLASTIC PIPE. HOSE FLUID LEVEL INDICATOR 170 MM, ORDER BY THE METER
59
PLASTIC TUBE , Replaced By: A0089975482
62
BANJO BOLT. HOLLOW SCREW
62
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
65
BANJO UNION OIL TANK
68
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
71
BRACKET OIL TANK
74
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M6X10
77
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE OM 906 LA
78
THREADED UNIONM 8
83
SCREW PLUG QUICK-RELEASE VALVE,CONNECTION: "2"
86
SEALING RING. SCREW TO PLUG LONGITUDINAL OIL DUCT,FAN SIDE
93
SCREW , Replaced By: N910143008002
144
LOCK
156
HEXAGON HEAD BOLT FILTER HOUSING TO BRACKET M12X20
222
PIPE LINE
225
RUBBER MOUNTING
228
TRAY
231
PLATE
234
SCREW BRACKET TO CROSS MEMBER
240
FILTER HOUSING
243
FILTER ELEMENT HYDRAULIC FLUID
246
FITTING , Replaced By: A0039909268
246
FITTING
249
BRACKET
252
WASHER
252
WASHER , Replaced By: N000125013008
252
WASHER
255
SCREW BRACKET TO CAB REAR PANEL M 8X20
258
BRACKET
261
BRACKET FILTER BOWL
264
SCREW , Replaced By: N910143008000
267
HOSE. PLASTIC PIPE , Replaced By: A0139971282
270
PIPE LINE
372
SEAL RING26X2MM
