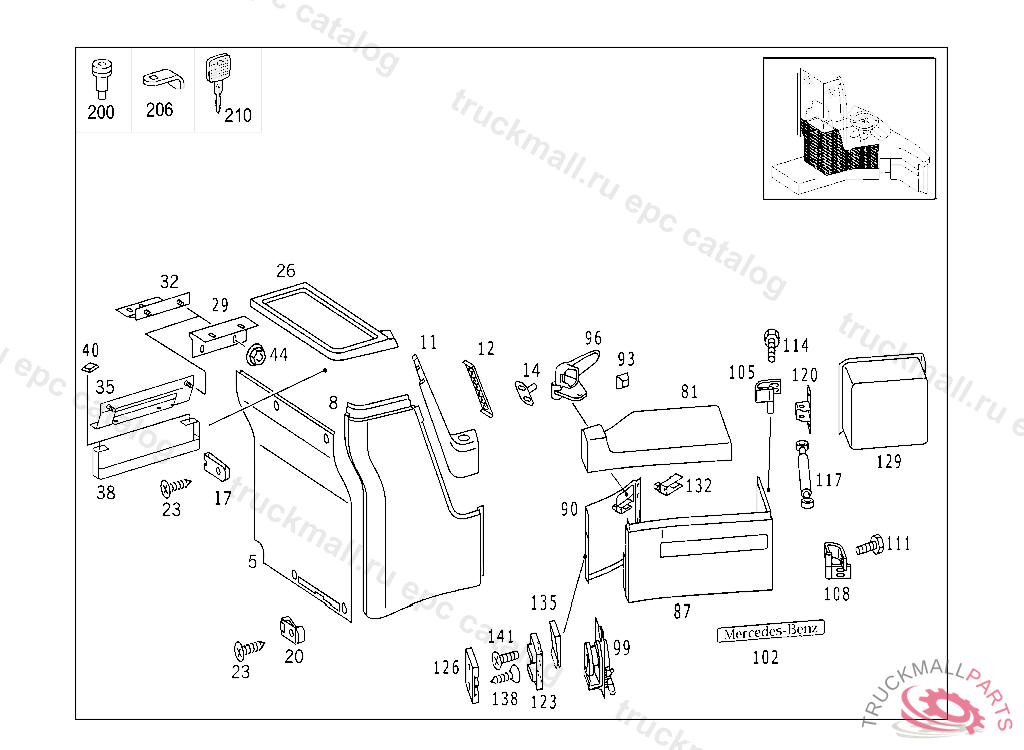

Поз.
Артикул
Описание
5
PANELLING VEHICLE WIDTH 2550, NO.7C01I.......I.......I.......
8
PANELLING ELECTRICAL COMPARTMENT LATERAL, BEHIND DRIVER'S PLACE, NO.7C01I.......I.......I.......
11
COVERING TO COVERING, NO.7C01I.......I.......I.......
12
NOZZLE DRIVER VENTILATION FROM REAR
14
DOOR FITTING ASSEMBLY AT COVERING, NO.7365I.......I.......I.......
17
FUSE INSTRUMENT PANEL TO LOWER CROSSMEMBER
20
LOCK PROTECTIVE GRILLE
23
SHEET METAL SCREW MUFFLER TO AIR INTAKE PIPE,INSIDE
26
COVERING BEHIND DRIVER'S SEAT, NO.7C52I.......I.......I.......
29
HINGE
32
BRACKET HINGE, Replaced By: A6287100436
35
BRACKET HINGE
38
BRACKET
40
RUBBER BUFFER TO GLASS PANE,BOTTOM
44
NUT EXTERIOR COVER PLATE
44
NUT-AND-WASHER ASSEMBLY ANTENNA AT BRACKET M4
81
PANELLING INTERIOR DOOR UPPER PART, NO.7C52I.......I.......I.......
87
PANELLING INTERIOR DOOR OUTSIDE, NO.7C01I.......I.......I.......
90
PANELLING INTERIOR DOOR INSIDE, NO.7C52I.......I.......I.......
93
RUBBER BUFFER FLAP TO LEVER, NO.8316INO.7C52INO.9051I I II I
96
HANDLE INTERIOR DOOR INSIDE
99
LOCK , .......INO.8316INO.9051I.......
102
BADGE
105
HINGE TOP
108
HINGE BOTTOM
111
HEXALOBULAR BOLT SUPPORT TO CRANKCASE M8X20
114
SCREW SPEED SENSOR TO REAR AXLE
117
VIBRATION ABSORBER
120
BRACKET MUFFLER
123
GUIDE BOTTOM
126
GUIDE ,070362
129
POCKET INTERIOR DOOR INSIDE, NO.7C01I.......I.......I.......
132
BRACKET DOOR POCKET, NO.7365I.......I.......I.......
135
LOCK CONTROL UNIT
138
SHEET METAL SCREW BRACKET TO FIRE WALL
141
SHEET METAL SCREW
200
LOCK , STATE LOCK NUMBER WHEN ORDERING
206
LATCHTO A 000 988 56 60
210
KEY FILLER CAP, STATE LOCK NUMBER WHEN ORDERING
999
LOCK
999
DETENT
999
LATCH
999
BRACKET
999
END PIECE
999
GUIDE
999
VALUABLES COMPARTMENT
