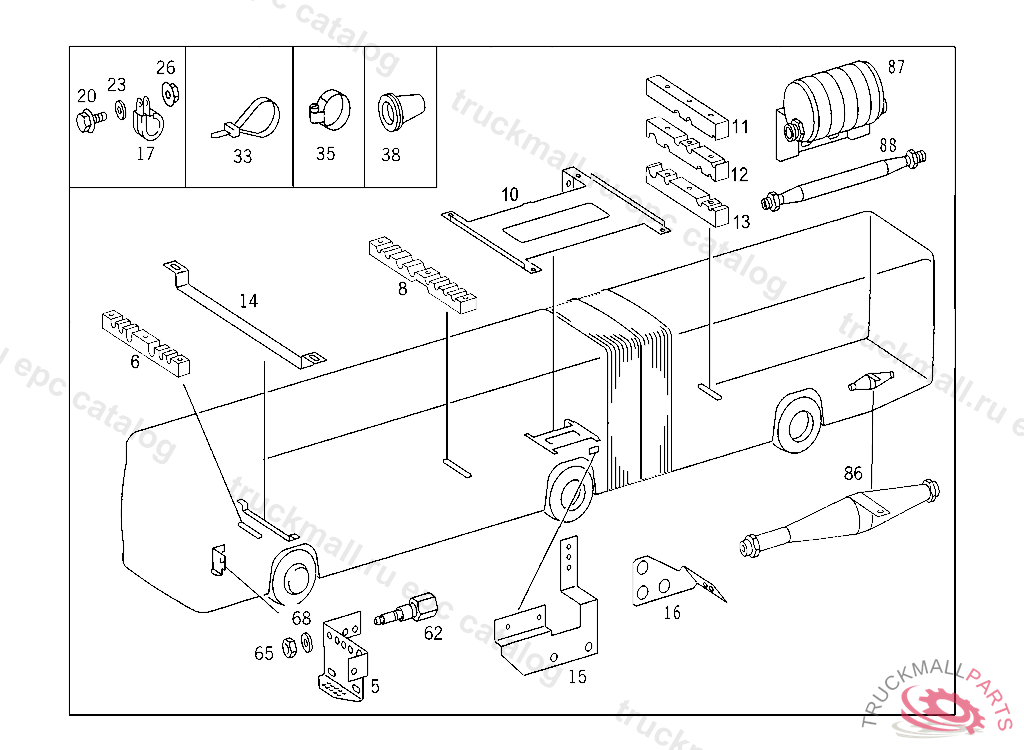

Поз.
Артикул
Описание
5
BRACKET LINE MOUNTING
6
BRACKET LINE MOUNTING
8
BRACKET LINE MOUNTING
10
BRACKET , Replaced By: A6284300510
11
BRACKET LINE MOUNTING
11
BRACKET , Replaced By: A6284313240, +001A6284313340, +001A6284313440
12
BRACKET LINE MOUNTING
13
BRACKET LINE MOUNTING
14
BRACKET BEHIND FRONT AXLE
15
BRACKET
15
BRACKET
16
BRACKET RIGHT BRAKE HOSE
16
BRACKET REAR AXLE BRAKE HOSE
17
CLAMP LINE MOUNTING
17
CLAMP SENSOR CABLE TO FRONT AXLE
17
CLAMP OIL DIPSTICK TO RADIATOR
17
CLAMP SAFETY VALVE AT BRACKET
17
CLAMP BRAKE HOSE BRACKET
17
CLAMP SUCTION LINE TO CROSS MEMBER
17
CLAMP BREATHER LINE TO BRACKET
17
CLAMP , Replaced By: A3829950101
20
SCREW , Replaced By: N910143008000
20
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
20
SCREW CLAMP MOUNTING M 6X16
20
SCREW GUSSET PLATE TO CROSS MEMBER M16 X 1.5 X 40
20
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
20
SCREWM 8X90
20
SCREW SPEED SENSOR TO REAR AXLE
23
WASHER , Replaced By: N009021006208
26
NUT HORN TO BRACKET M8
26
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
33
LOOM TIE LINE MOUNTING
35
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
38
GROMMET FOR BORE 60MM
62
COUPLING DISTRIBUTOR,CONNECTION: "11,21,23", UP TO IDENT NO. WEB 105308 EXCEPT FOR 104831-104930,104931-105130,105261,105268-105295,105307. ALSO INSTALLED IN 105317,105318,105324,105382,105388. UP TO IDENT NO.VF9 300288 EXCEPT FOR 300046,300282-300284.
65
NUT ELECTRONIC ACCELERATOR PEDAL
68
WASHER
86
MUFFLER FROM AIR COMPRESSOR TO PRESSURE REGULATOR,095094 UP TO IDENT NO.099977, INOLTRE MONTATO IN 099368,099369
86
MUFFLER AT AIR COMPRESSOR
87
MUFFLER FROM AIR COMPRESSOR TO PRESSURE REGULATOR
87
MUFFLER , Replaced By: A6284300670
88
MUFFLER FROM AIR COMPRESSOR TO PRESSURE REGULATOR
999
BRACKET TEST CONNECTIONS
