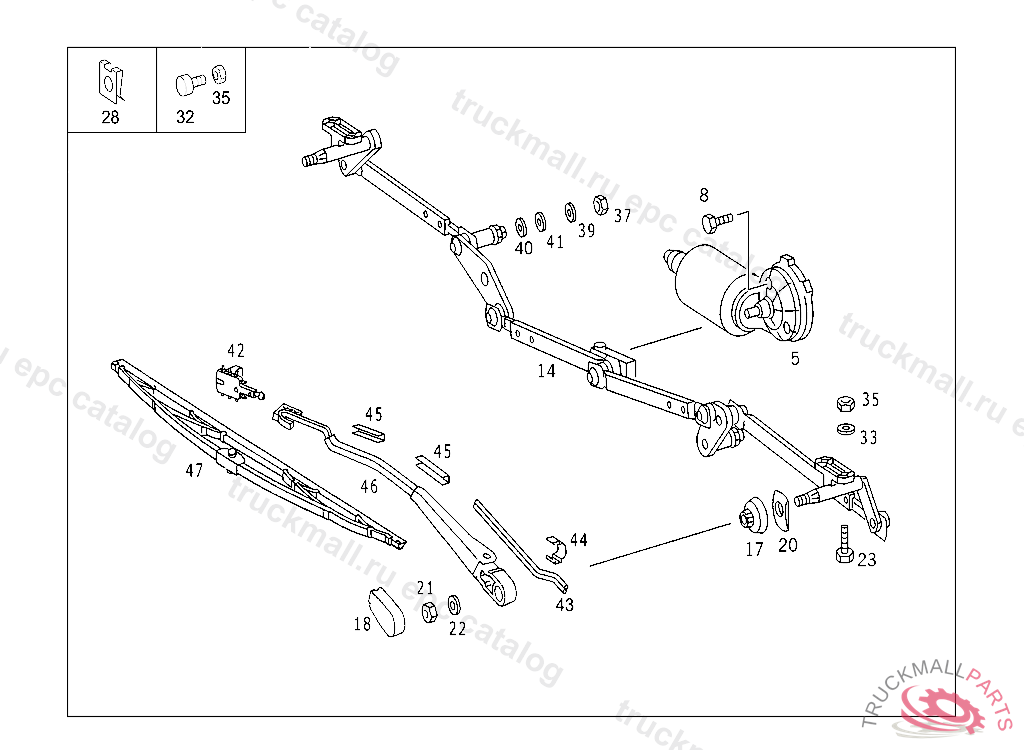

Поз.
Артикул
Описание
5
ELECTRIC MOTOR
8
SCREW , Replaced By: N910105010009
8
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
14
WIPER ASSEMBLY
14
WIPER ASSEMBLY
17
CAP
18
CAP
20
BOOT
21
NUT BRACKET TO FRAME
22
SPRING WASHER CAB FLOOR
22
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
23
SCREW BRACKET TO SIDE MEMBER M8X20
23
SCREW BRACKET TO CAB REAR PANEL M 8X20
28
LOCK. CLIP FASTENER HOUSING UPPER PART TO LOWER PART
32
BUFFER (STOP BUFFER), UP TO IDENT NO. 085164 EXCEPT FOR 080637,083620,083621,084073,084350,084353,084354,084355,084356,084635,084679,084951.
33
WASHER
35
NUT SWITCH TO INSTRUMENT PANEL,213840
35
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
37
NUT SWITCH TO INSTRUMENT PANEL,213840
39
WASHER
40
WASHER
41
WASHER
42
NOZZLE
43
HOSE
44
CLIP
45
CLAMPING PIECE
46
WIPER ARM LEFT
46
WIPER ARM RIGHT
47
WIPER BLADE
