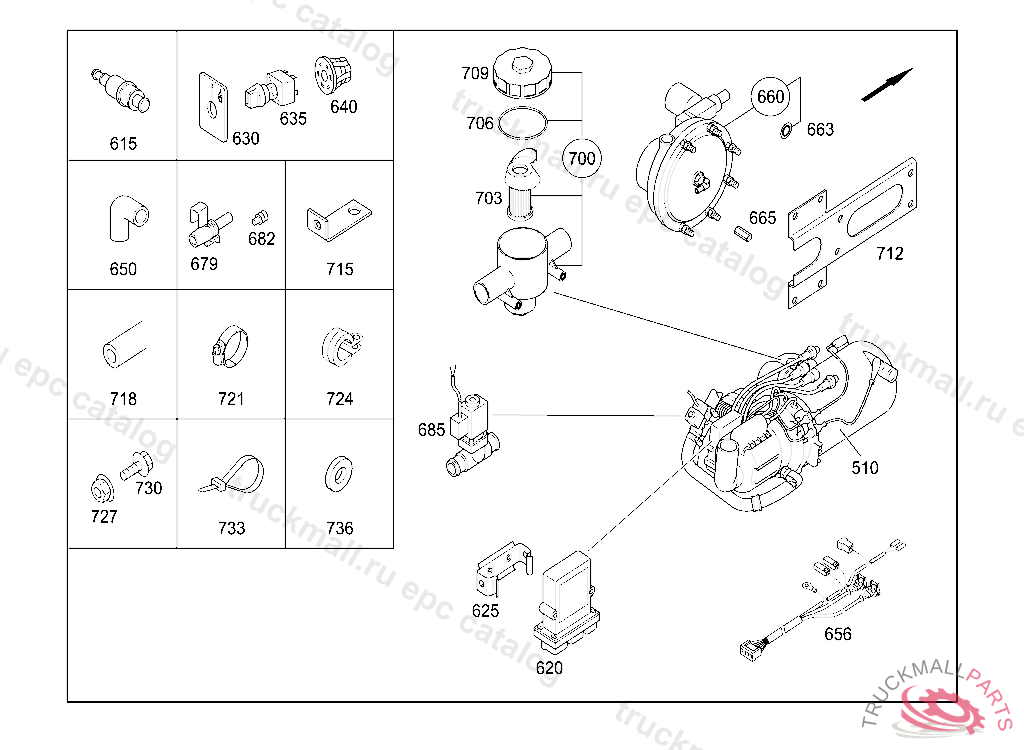

Поз.
Артикул
Описание
510
HEATER UNIT AUXILIARY GAS HEATER GBW300,WEBASTO
615
THERMOSTAT
620
CONTROL UNIT HEATING
625
BRACKET ,5 385341
630
PLATE
635
SWITCHTO A 003 830 00 61
640
PLUG
650
HOSE FROM HEATING WATER PIPE TO HEATER
656
CABLE HARNESS
660
THROTTLE CONTROL , Replaced By: A0008351576
660
CONTROL UNIT
663
SEALING RING
665
NUT
679
PLUG SOCKET
682
BOOT
685
VALVE24V
700
WATERFILTER
703
FILTER
706
SEAL
709
COVERINGTO A 000 832 20 72
712
BRACKET
715
BRACKET COOLING WATER LINE TO ENGINE
718
HOSE FROM EXPANSION TANK TO COOLING WATER PIPE 15X4.5X1850 MM
721
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
721
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
724
CLAMP25/20MM
724
CLAMP28/20MM
724
CLAMP28/20MM, Replaced By: N000000007537
724
CLAMP LINE MOUNTING 25/20
727
NUT BRACKET TO FIRE WALL
727
NUT HORN TO BRACKET M8
730
SCREW BRACKET AND CLAMP M6X20
730
SCREW , Replaced By: N910143008002
733
CABLE TIE310X5MM
736
WASHER COMPRESSED AIR LINE TO BRACKET
