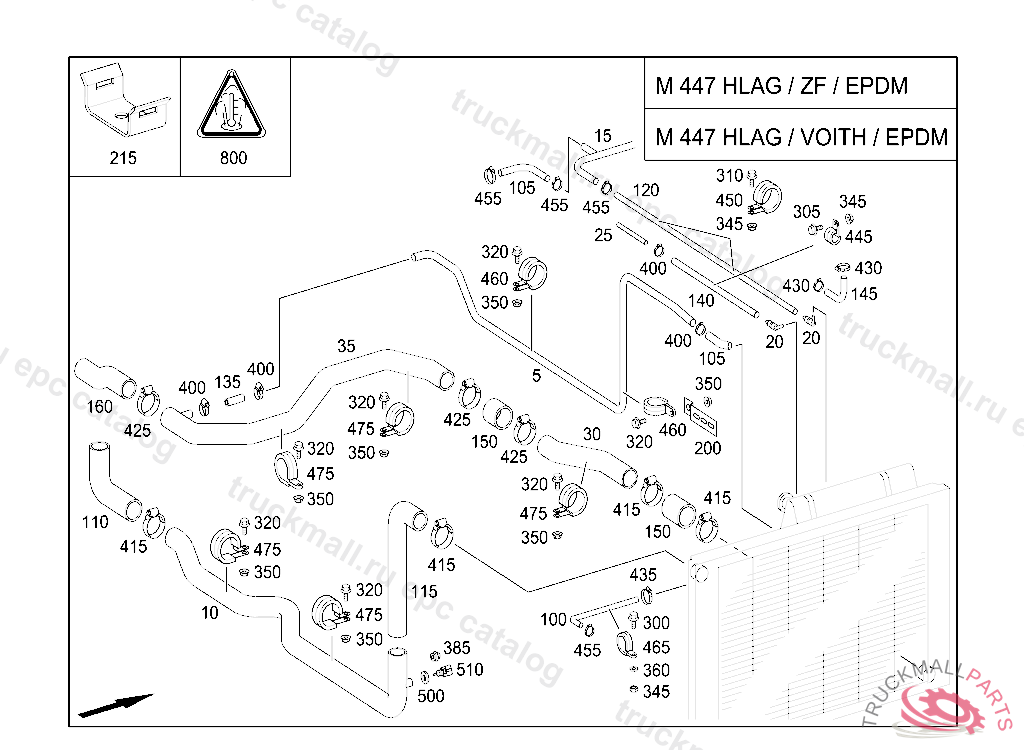

Поз.
Артикул
Описание
5
COOLANT PIPE
10
COOLANT PIPE WITH TWO CONNECTION FITTINGS FOR TEMPERATURE SENSOR
10
COOLANT PIPE WITH ONE CONNECTION FITTING FOR TEMPERATURE SENSOR
15
COOLANT LINE
20
COOLANT LINE
25
COOLANT PIPE
30
COOLING WATER PIPE FROM RADIATOR TO WATER PUMP
35
COOLANT LINE. LINE FROM RADIATOR TO WATER PUMP
100
HOSE RADIATOR DE-AERATION HOSE
105
HOSE28X37X100 MM, Replaced By: N000000004989
110
MOLDED HOSE 90-DEGREE ARC 60MM
115
MOLDED HOSE ,000561
120
HOSE10X19X2650MM
135
HOSE22X31X100MM
140
HOSE10X19X240MM, TO BE ADAPTED DURING ASSEMBLY
145
MOLDED HOSE I.D., 22 MM
150
HOSE50X62X120MM
160
MOLDED HOSE. HOSE FROM RADIATOR TO ENGINE
200
BRACKET LOW PRESSURE LINES
215
BRACKET
300
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
300
SCREW , Replaced By: N914146006102
305
SCREW BRACKET AND CLAMP M6X20
310
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
320
SCREW BRACKET TO CAB REAR PANEL M 8X20
345
NUT BRACKET TO FIRE WALL
350
NUT HORN TO BRACKET M8
360
WASHER COMPRESSED AIR LINE TO BRACKET
385
SCREW PLUGROCKINGER,TYP 59 U150
400
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
415
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
425
CLAMP
430
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
435
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
445
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 18/20
445
CLAMP LINE MOUNTING 15-18 MM,V 207570
450
CLAMP20/20MM
455
CLAMP22/15, Replaced By: A0019951442
460
CLAMP28/15, Replaced By: A0019951842
465
CLAMP28/20MM, Replaced By: N000000007537
475
CLAMP50/20MM, Replaced By: N000000007519
500
SEAL RING LINE CONNECTION
510
TEMPERATURE SENSOR
800
INFORMATION LABEL TEMPERATURE, RIGID PVC
800
INFORMATION LABEL TEMPERATURE, COOLANT EXPANSION RESERVOIR (KWA) SELF-ADHESIVE
