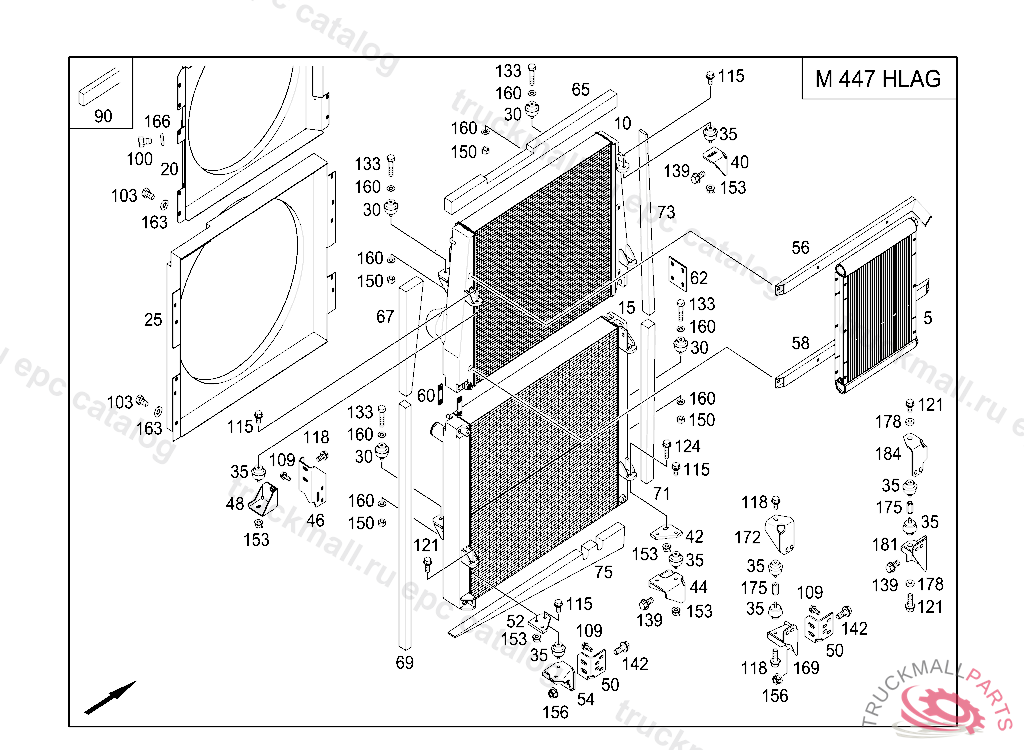

Поз.
Артикул
Описание
5
OIL COOLER
10
RADIATOR (CHARGING AIR INTERCOOLER)
15
RADIATOR RADIATOR
20
FAN SHROUD (CHARGING AIR INTERCOOLER)
25
FAN SHROUD RADIATOR
30
RUBBER BUSHING RADIATOR,095077
35
BUFFER
40
BRACKET RADIATOR MOUNTING
40
BRACKET FRONT BOTTOM
42
BRACKET RADIATOR MOUNTING
44
BRACKET RADIATOR MOUNTING
46
BRACKET RADIATOR MOUNTING
48
BRACKET RADIATOR MOUNTING
50
BRACKET RADIATOR MOUNTING
52
BRACKET RADIATOR MOUNTING
54
BRACKET REAR BOTTOM
56
BRACKET
58
BRACKET
60
BRACKET
62
SUPPORTING PLATE
65
SEAL
67
SEAL
69
SEAL
71
SEAL
73
SEAL
75
SEAL
90
GASKET6X15X1000MM
100
SCREW COVER PLATE TO COVER PLATE M 6 X 12
103
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
103
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
109
SCREW BRACKET TO CAB REAR PANEL M 8X20
115
HEXAGON HEAD BOLTM10X20
118
SCREWM 10X20
121
SCREW. HEXAGON HEAD BOLTM10X25
121
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
124
HEXAGON HEAD BOLTM10X35
133
SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING M 10X45
133
HEXAGON HEAD BOLTM10X40, TO BE ADAPTED DURING ASSEMBLY, Replaced By: N304017010036
139
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
142
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
150
NUT BATTERY CABLE
153
NUT , Replaced By: N913023010002
156
NUT BRACKET TO SIDE MEMBER M12X1.5
160
WASHER P.T.O. TO TRANSMISSION
163
WASHER PUMP TO CONSOLE
166
WASHER COMPRESSED AIR LINE TO BRACKET
169
BRACKET RADIATOR MOUNTING
172
BRACKET RADIATOR MOUNTING
175
THREADED BUSHM10X35MM
178
WASHER
181
BRACKET RADIATOR MOUNTING
184
BRACKET RADIATOR MOUNTING
