Mercedes A0008308770 - ZB KONDENSATOR, HEIZ

O530 - CITARO G 18M, 2-TUERER 628.280

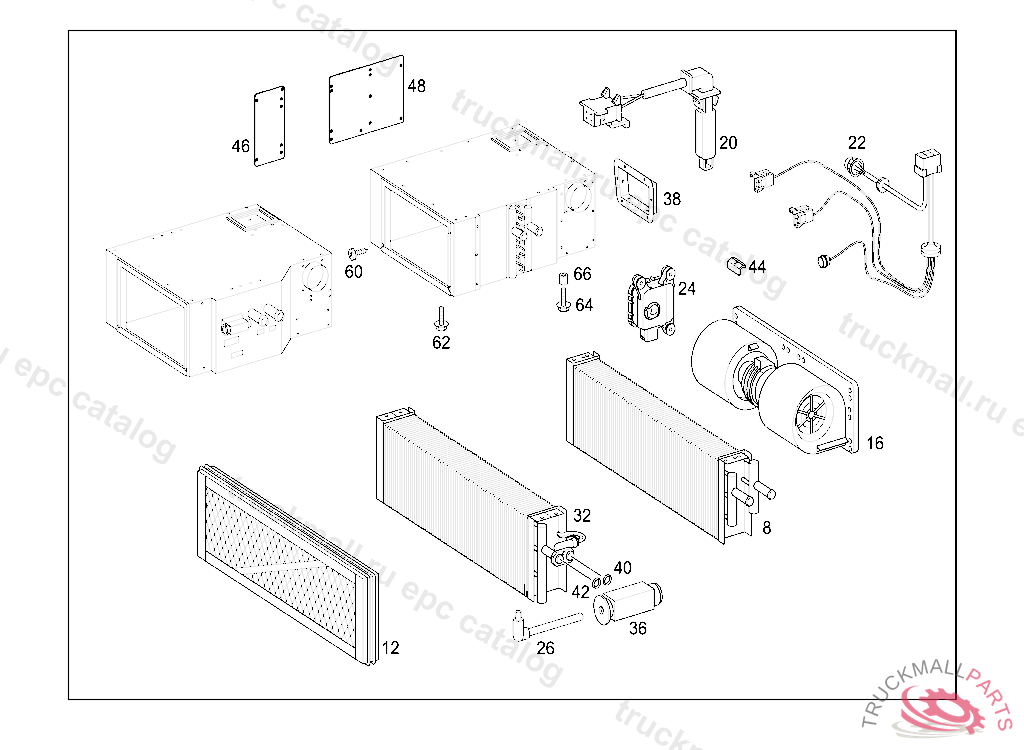

83 HEATING AND VENTILATION - 067 HEATER/AIR CONDITIONING DRIVER'S PLACE OF WORK

Поз.
Артикул
Описание
8
A0018302020
HEATER
8
A0008308770
CONDENSER , Replaced By: A0018302020
12
A0018351547
FILTER WITH FILTER ELEMENT
16
A0038303608
BLOWER FOR FIRST TIME REPLACEMENT,ALSO ORDERADAPTER CABLE A0008206987
20
A0078200810
TEMPERATURE SENSOR
20
A0018300772
TEMPERATURE SENSORL200MM, Replaced By: A0078200810
24
A0068207842
SERVO-D.C. W.GEARBOX
24
A0068201142
ELECTRIC MOTOR , Replaced By: A0068207842
32
A0018309858
EVAPORATOR
36
A0028306084
VALVE
40
A0239971548
SEAL RING
42
A0239971648
SEAL RING
60
N000000002108
HEXALOBULAR BOLTM5X16
62
N910105008004
SCREW BRACKET MOUNTING M6 X 20
64
N910105008016
SCREW SHIFT LEVER TO BRACKET M8X30
