Главная
›
Mercedes
›
BUS
›
O530 - CITARO G 18M, 2-TUERER
›
628.280
›
29 PEDAL ASSEMBLY
›

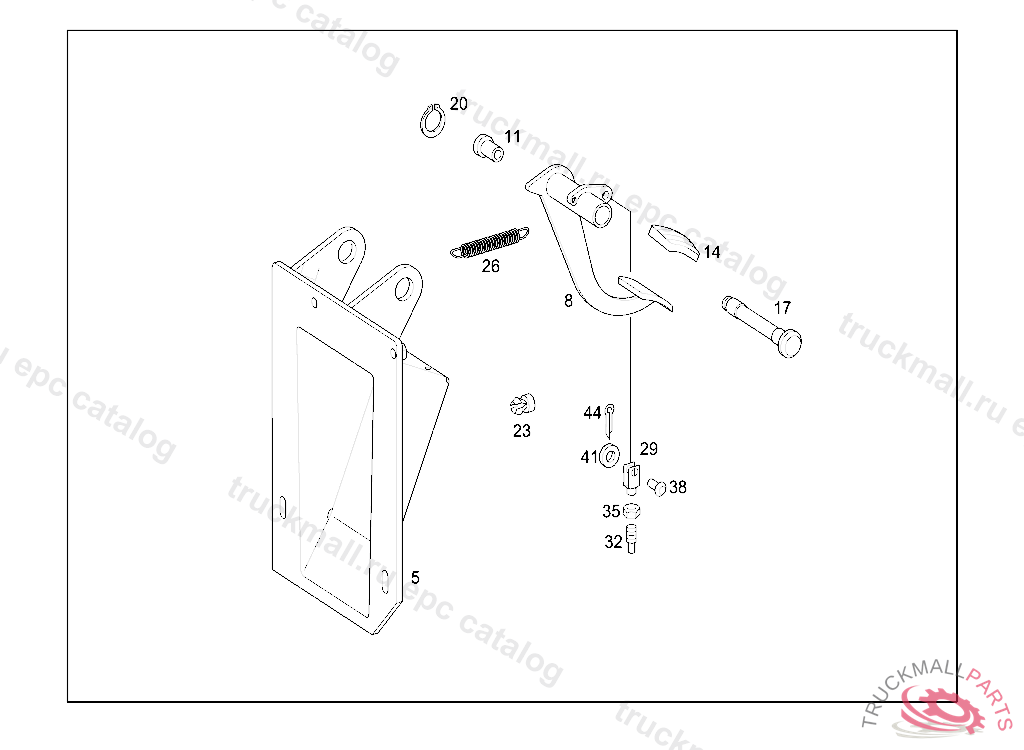

060 BRAKE PEDAL ASSEMBLY
Mercedes N304032008006 - ГАЙКА М8
O530 - CITARO G 18M, 2-TUERER 628.280
29 PEDAL ASSEMBLY - 060 BRAKE PEDAL ASSEMBLY
Поз.
Артикул
Описание
5
A6282901133
CONSOLE BRAKE PEDAL
5
A6282900533
BRACKET BRAKE PEDAL
8
A6282900218
PEDAL BRAKE
11
A1102910550
BUSHING , Replaced By: A1242920050
14
A2012910282
PAD CLUTCH PEDAL
17
A6282920274
BEARING BOLT PEDAL BEARING
17
A6282920174
PIN PEDAL BEARING, Replaced By: A6282920274
20
N000471016000
RETAINING RING. LOCK RING BRACKET TO BRACKET
20
A0079942041
LOCK STOP TO BEARING BRACKET
23
A6732910286
STOP CLUTCH PEDAL AND BRAKE PEDAL
26
A6559930010
SPRING CLUTCH-PEDAL/BRAKE-PEDAL RESET
29
N071752008003
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
32
A6282910133
PISTON ROD BRAKE ACTUATION
32
A6732920032
ROD TWO-CIRCUIT-BRAKE-VALVE CONTROL
35
N304032008006
NUT
38
A3852920174
PIN ROD TO BRAKE PEDAL
41
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
41
N000125008427
WASHER YOKE TO BRAKE LEVER
41
N000125008445
WASHER PUMP TO CONSOLE
44
N000094002060
COTTER PIN LEVER TO ROD
44
N000094002059
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
