Mercedes A6284810782 - Сайлентблок

O530 - CITARO G 18M, 3-TUERER 628.283

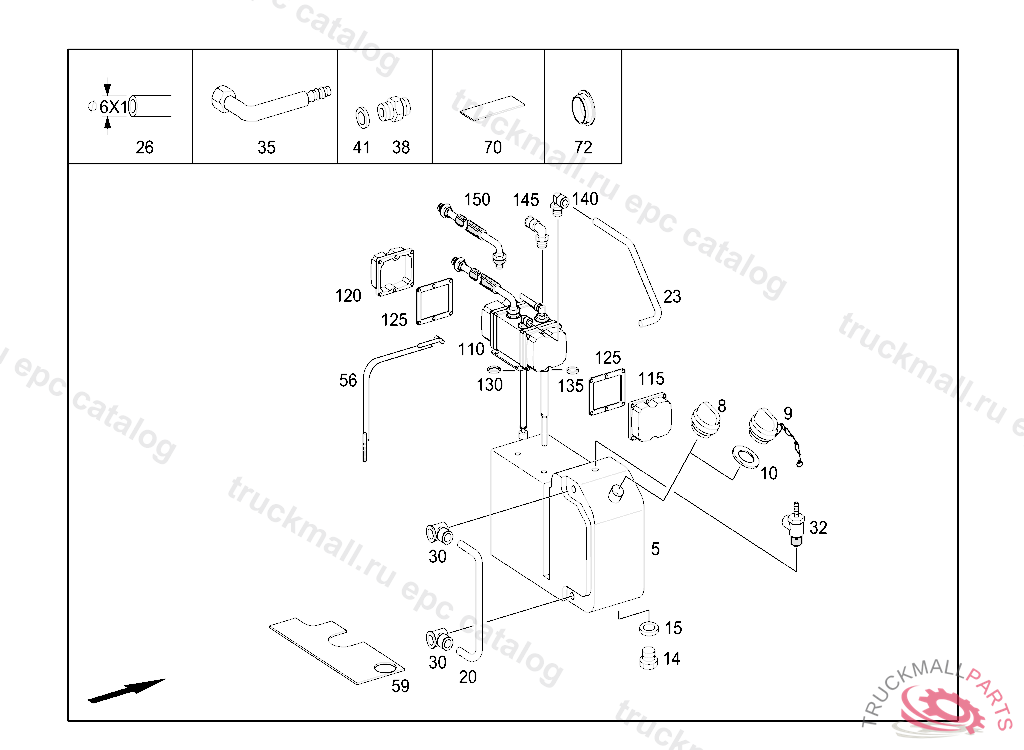

48 OIL TANK - 030 OIL TANK

Поз.
Артикул
Описание
5
A6284801401
OIL TANK ENGINE OIL AUTOMATIC REPLENISHMENT " GROENEVELD "
8
A0000180702
CAP OIL REFILLING
9
A0000181102
CAP OIL FILLING
10
A0000180180
GASKET , Replaced By: A1020180080
14
N007604018109
SCREW PLUG
15
N007603018104
SEAL RING SOLENOID VALVE A 18X24
20
A0109976482
PLASTIC PIPE. HOSE FLUID LEVEL INDICATOR 170 MM, ORDER BY THE METER
20
A0019970652
HOSETO 346 500 60 03, ORDER BY THE METER
23
A0009872727
PLASTIC PIPE AERATION, ORDER BY THE METER
26
A0009872627
PLASTIC PIPE RISING PIPE 4X6 MM
30
A6284800025
ELBOW FITTING
32
A6284800125
ELBOW FITTING
35
A0004760524
ELBOW FITTING RETURN
38
N915027000000
FITTING COOLING WATER INLET FOR AIR COMPRESSOR
41
N007603018101
SEAL RING VALVE TO VALVE,K 025179
56
A6284800021
STRAP OIL TANK
59
A6284810682
RUBBER MAT ON BRACKET
70
A6284810782
RUBBER MAT AT OIL TANK 240X90X5 MM, Replaced By: A0009973735
70
A0009973735
PLUG AT OIL TANK 240X90X5 MM
72
A0009973735
PLUG AT OIL TANK 240X90X5 MM
110
A6285400745
CONTROL UNIT AT OIL TANK
115
A0004810011
COVER BLACK
120
A0004810111
COVER TRANSPARENT
125
A0179970145
FULL FACE GASKET
130
A0179972645
SEAL RING22,2X3,5 MM
135
A0179972545
SEAL RING17X3 MM
140
A0279970182
BANJO UNION
145
A0029976071
ELBOW FITTING DIA., 10MM
150
A0035401505
CABLE HARNESS
