O530 - CITARO G 18M, 3-TUERER
628.283
83 HEATING AND VENTILATION

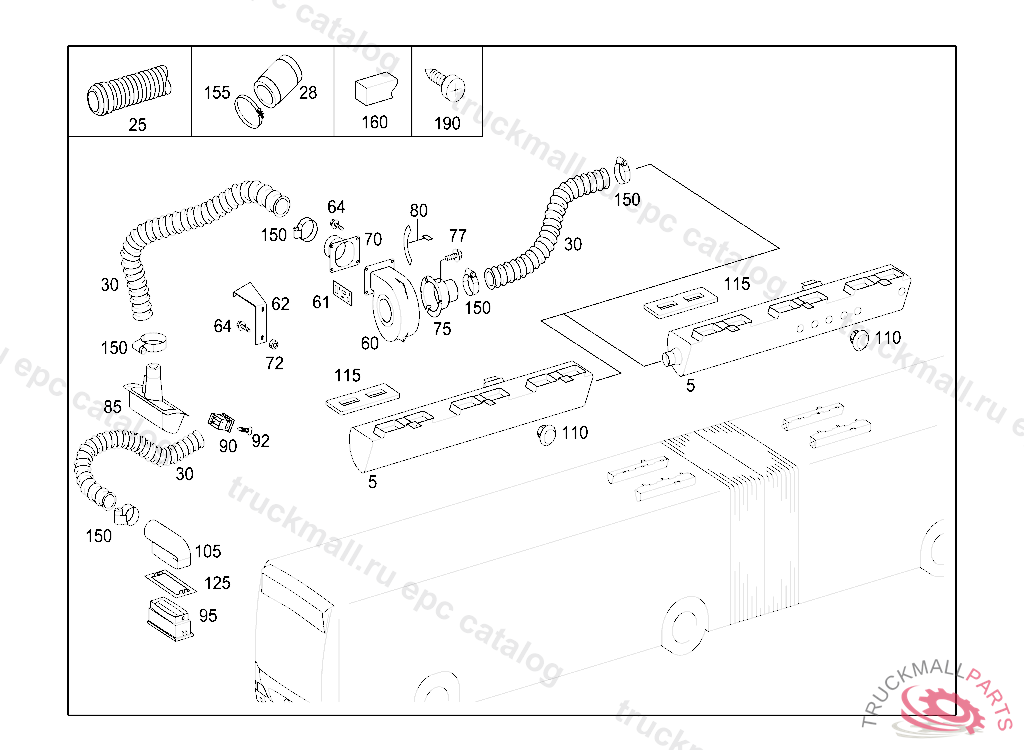

210 AIR DUCT TO ROOF IL. 1

Mercedes N000000001468 - Хомут 60 - 80 X 13

O530 - CITARO G 18M, 3-TUERER 628.283

83 HEATING AND VENTILATION - 210 AIR DUCT TO ROOF IL. 1

Поз.
Артикул
Описание
5
A6288315457
DUCT ABOVE FRONT AXLE,LEFT
5
A6288315557
DUCT ABOVE REAR AXLE,LEFT
5
A6288315057
DUCT ABOVE FRONT AXLE,LEFT
5
A6288315157
DUCT ABOVE FRONT AXLE,RIGHT
25
A6288304296
HOSE LENGTH: 1100 MM/45 MM, TO BE ADAPTED DURING ASSEMBLY
25
A6288310388
HOSE604MM/48MM, TO BE ADAPTED DURING ASSEMBLY
25
A6288310588
HOSE1575MM/48MM, TO BE ADAPTED DURING ASSEMBLY
25
A6668311088
HOSE1168MM/48MM, TO BE ADAPTED DURING ASSEMBLY
25
A6288312188
HOSE PASSENGER COMPARTMENT VENTILATION 950 MM / NW 48 MM, TO BE ADAPTED DURING ASSEMBLY
25
A6288305496
HOSE500MM/45MM, TO BE ADAPTED DURING ASSEMBLY
25
A6288310488
HOSE493MM/48MM, TO BE ADAPTED DURING ASSEMBLY
25
A6288311888
HOSE290MM/48MM, TO BE ADAPTED DURING ASSEMBLY
25
A6288304796
HOSE1000MM/45MM, TO BE ADAPTED DURING ASSEMBLY
25
A6288305096
HOSE LENGTH: 800 MM/45 MM, TO BE ADAPTED DURING ASSEMBLY
25
A6288305296
MOLDED HOSE1500MM/45MM, TO BE ADAPTED DURING ASSEMBLY
25
A6668310688
HOSE716MM/48MM, TO BE ADAPTED DURING ASSEMBLY
25
A6288311988
HOSE120MM/48MM, TO BE ADAPTED DURING ASSEMBLY
25
A6288311188
HOSE827MM/48MM, TO BE ADAPTED DURING ASSEMBLY
25
A6288312088
HOSE600MM/48MM, TO BE ADAPTED DURING ASSEMBLY
25
A6288304596
HOSE650MM/45MM, TO BE ADAPTED DURING ASSEMBLY
25
A6288304696
HOSE LENGTH: 725 MM/45 MM, TO BE ADAPTED DURING ASSEMBLY
25
A6288304996
HOSE400MM/45MM, TO BE ADAPTED DURING ASSEMBLY
25
A6288305196
HOSE850MM/45MM, TO BE ADAPTED DURING ASSEMBLY
25
A6288311288
HOSE275MM/48MM, TO BE ADAPTED DURING ASSEMBLY
28
A6288312588
HOSE290MM/200MM, TO BE ADAPTED DURING ASSEMBLY
30
A0149979582
HOSE COWL VENTILATION,TOP 75MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
60
A0028305708
BLOWER
61
A0005400928
PRINTED CIRCUIT PLATE
62
A6288300414
BRACKET
64
N910105008041
SCREW , Replaced By: N910143008000
70
A6288310325
PIPE SOCKET BLOWER MOTOR
72
N913023008003
NUT HORN TO BRACKET M8
75
A6288311325
FITTING BLOWER MOTOR, TO BE ADAPTED DURING ASSEMBLY
75
A3578310425
PIPE SOCKET BLOWER MOTOR, TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6288311325
77
N007985004187
SCREW DIODE TO BRACKET
80
A0029874825
PLASTIC SECTION VOLTAGE TRANSFORMER 290 MM, ORDER BY THE METER
85
A6288300705
DISTRIBUTOR DRIVER'S PLACE
90
A6298310060
NOZZLE DRIVER'S PLACE
92
N000966004032
SCREW
95
A3568300754
NOZZLE
105
A3568310026
CONNECTING PIPE TRANSVERSE DUCT RIGHT
110
A0008350278
FASTENER
115
A6288310242
FRAME SEAL
115
A6288310442
FRAME SEAL
115
A6288310542
FRAME SEAL
115
A6288310342
FRAME SEAL
125
A6288370010
COVERING TRANSVERSE DUCT RIGHT
150
N000000000673
CLAMP HOSE TO RETARDER 60-80X13 MM
150
N000000001468
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
155
N000000002136
CLAMP180-200X12MM
160
A0029893398
SEALING STRIP5880MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
190
N007981004240
SHEET METAL SCREW WIRE CABLE TO CAB
