Mercedes A6284700332 - ZB AUFFANGWANNE

O530 - CITARO G 18M, 4-TUERER 628.285

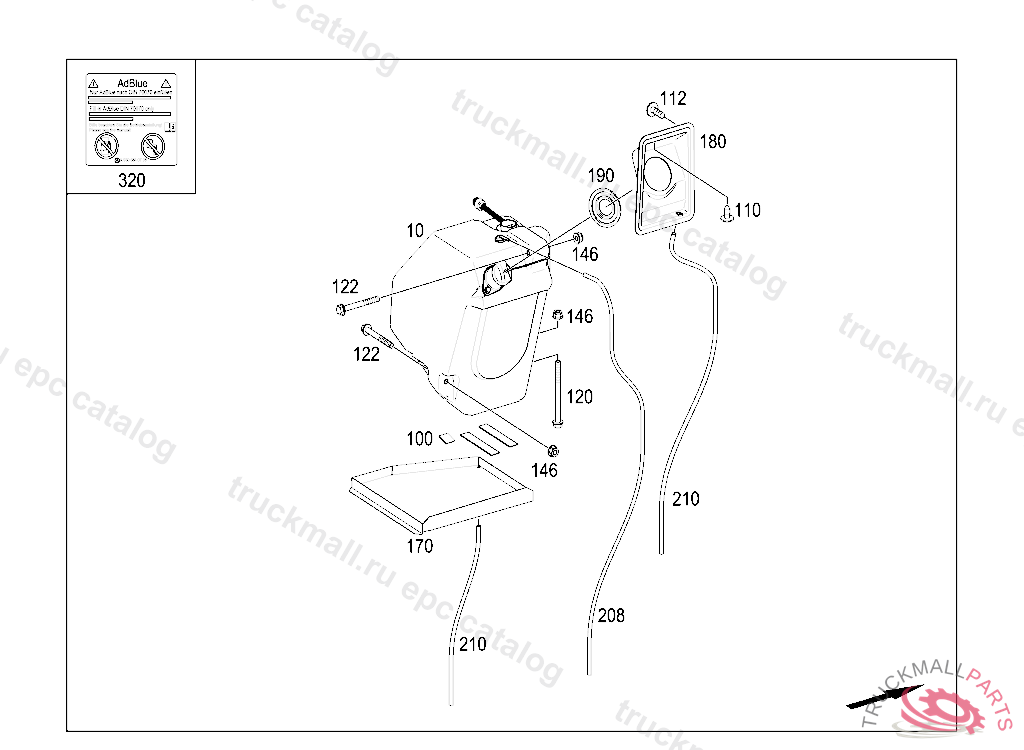

47 FUEL SYSTEM - 195 UREA CONTAINER IL. 2

Поз.
Артикул
Описание
10
A6284700815
UREA CONTAINER ASSEMBLY
10
A6284710319
REDUCING AGENT TANK W/O DETACHABLE BODY COMPONENTS
100
A0019872333
RUBBER SECTION SEAL TO BODY, ORDER BY THE METER
110
N000000000520
TAPPING SCREW BRACKET TO SUPPORT
112
N000000000522
SHEET METAL SCREW BRACKET TO SUPPORT
120
N910105010013
HEXAGON HEAD BOLT. SCREW TRAILER COUPLING TO BRACKET M10 X 120
122
N910105010044
HEXAGON HEAD BOLT. SCREW SHIFTING TUBE TO SHIFT LEVER M 10X90
146
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
170
A6284700332
COLLECTING PAN
180
A6284700747
COVERING
190
A1409973981
GROMMET FILLER NECK
208
A0149976882
HOSE BATTERY VENTING 11 X 2 MM, ORDER BY THE METER
210
A0139977382
HOSE 9 X 16 X 1000 MM, TO BE ADAPTED DURING ASSEMBLY
320
A3115840807
PLATE IN SWEDISH
320
A3115840407
PLATE IN FINNISH
320
A3115840607
PLATE IN ITALIAN
320
A9305840738
PLATE. GUMMED LABEL ADBLUE WARNIGN SIGN 63X70,5 MM, Replaced By: A9305842438
320
A3115844907
PLATE IN DUTCH
320
A3115841007
PLATE IN NORWEGIAN
320
A3115845107
INFORMATION LABEL. PLATE IN TURKEY
320
A3115845307
PLATE IN DANISH
320
A3115844507
PLATE IN SPANISH
320
A3115840207
PLATE IN FRENCH
